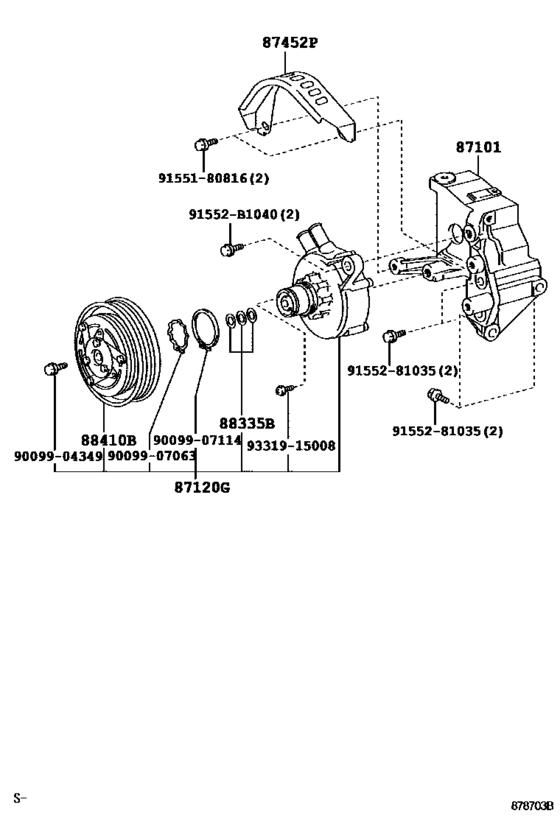

Heating & Air Conditioning - Heater Unit & Blower ([08.2006 - ] VISCOUS HEATER (0608- )) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87101
|
87101
87101-26010
Bracket Sub-Assy, Viscous Heater No.1
[08.2006 -] KLH1#,2# |
87101-26010 |
— | ||
|
87120G
|
87120G
87120-35030 Heater Assy, Viscous W/magnet Clutch[08.2006 -] KLH1#,2# |
87120-35030 |
US $912.04 |
||
|
87452P
|
87452P
87452-35050
Bracket, Heater, Front
[08.2006 - 08.2008] KLH1#,2# |
87452-35050 |
— | ||
|
88335B
|
88335B
88335-14020 Washer[08.2006 -] KLH1#,2# |
88335-14020 |
from US $1.24 |
||
|
88410B
|
88410B
88410-35370 Clutch Assy, MagnetMAGNET [08.2006 -] KLH1#,2# |
88410-35370 |
US $487.76 |
||
|
91552B1040
|
91552B1040
91552-B1040 BOLT FLANGE |
91552-B1040 |
US $2.15 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $1.01 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.99 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.15 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
