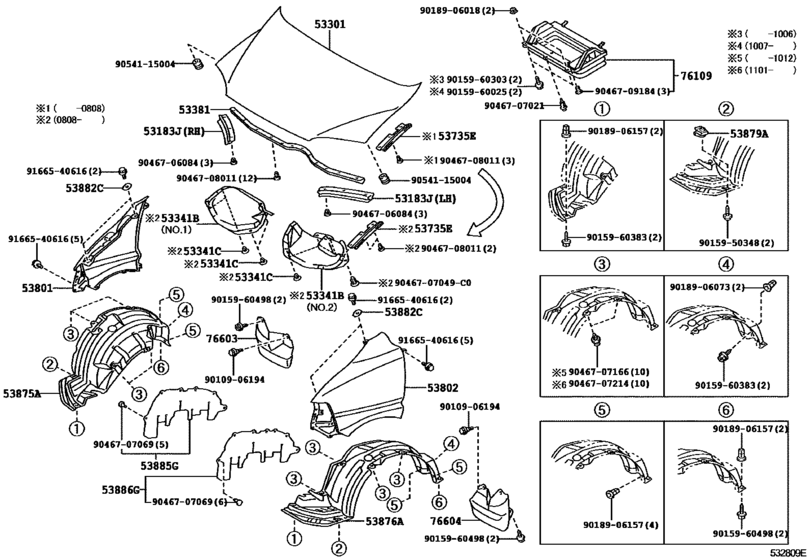

Hood & Front Fender ([08.2006 - ] (0608- )) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183J
|
53183J
53183-26040 Seal, Headlamp Cover To Hood[08.2001 - 08.2006] KLH1#,2# RH |
53183-26040 |
US $8.30 |
||
|
53183J
|
53183J
53183-26050 Seal, Headlamp Cover To Hood[08.2001 - 08.2006] KLH1#,2# LH |
53183-26050 |
US $8.30 |
||
|
53183J
|
53183J
53183-26070 Seal, Headlamp Cover To Hood[08.2006 -] KLH1#,2# RH |
53183-26070 |
US $7.43 |
||
|
53183J
|
53183J
53183-26080 Seal, Headlamp Cover To Hood[08.2006 -] KLH1#,2# LH |
53183-26080 |
US $7.43 |
||
|
53301
|
53301
53301-26012 Hood Sub-Assy[07.1999 - 08.2006] KLH1#,2# |
53301-26012 |
US $497.43 |
||
|
53301
|
53301
53301-26040 Hood Sub-Assy[08.2006 - 06.2008] KLH1#,2# |
53301-26040 |
US $492.13 |
||
| replacement | |||||
|
53301
|
53301
53301-26041
Hood Sub-Assy
[08.2006 - 06.2008] KLH1#,2# |
53301-26041 |
— | ||
|
53301
|
53301
53301-26041
Hood Sub-Assy
[06.2008 -] KLH1#,2# |
53301-26041 |
— | ||
|
53341B
|
53341B
53341-26030 Insulator, HoodHOOD [08.2001 - 08.2006] KLH1#,2#..STD |
53341-26030 |
US $122.30 |
||
|
53341B
|
53341B
53341-26040
Insulator, Hood
[08.2008 -] KLH1#,2# NO.1 |
53341-26040 |
— | ||
|
53341B
|
53341B
53341-26050
Insulator, Hood
[08.2008 -] KLH1#,2# NO.2 |
53341-26050 |
— | ||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[08.2008 -] KLH1#,2# |
90467-09050 |
from US $0.86 |
||
|
53381
|
53381
53381-26010 Seal, Hood To Radiator Support[07.1999 - 08.2006] KLH1#,2# |
53381-26010 |
US $35.24 |
||
| replacement | |||||
|
53381
|
53381
53381-26011 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [07.1999 - 08.2006] KLH1#,2# |
53381-26011 |
US $24.17 |
||
|
53381
|
53381
53381-26011 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [05.2007 -] KLH1#,2# |
53381-26011 |
US $24.17 |
||
|
53735E
|
53735E
53735-26010 Seal, Front Fender Apron, Upper[07.1999 - 08.2006] KLH1#,2# |
53735-26010 |
US $13.69 |
||
|
53735E
|
53735E
53735-26030 Seal, Front Fender Apron, Upper[08.2006 -] KLH1#,2# |
53735-26030 |
US $6.84 |
||
|
53801
|
53801
53811-26010 Fender Sub-Assy, Front Rh[07.1999 - 08.2006] KLH1#,2# |
53811-26010 |
US $200.93 |
||
|
53801
|
53801
53811-26030 Fender Sub-Assy, Front Rh[08.2006 -] KLH1#,2# |
53811-26030 |
US $197.61 |
||
|
53802
|
53802
53812-26010 Fender Sub-Assy, Front Lh[07.1999 - 08.2006] KLH1#,2# |
53812-26010 |
from US $112.73 |
||
|
53802
|
53802
53812-26040 Fender Sub-Assy, Front Lh[08.2006 -] KLH1#,2# |
53812-26040 |
from US $176.01 |
||
|
53875A
|
53875A
53875-26010 Liner, Front Fender, Rh[07.1999 - 08.2006] KLH1#,2# |
53875-26010 |
US $98.80 |
||
|
53875A
|
53875A
53875-26050 Liner, Front Fender, RhFRONT FENDER, RH [08.2006 -] KLH1#,2# |
53875-26050 |
US $98.80 |
||
|
53876A
|
53876A
53876-26010 Liner, Front Fender, Lh[07.1999 - 08.2006] KLH1#,2# |
53876-26010 |
US $91.20 |
||
|
53876A
|
53876A
53876-26050 Liner, Front Fender, LhFRONT FENDER, LH [08.2006 -] KLH1#,2# |
53876-26050 |
US $83.16 |
||
|
53879A
|
53879A
53879-16010 Retainer, Front Fender Liner[07.1999 - 08.2006] KLH1#,2# |
53879-16010 |
from US $1.83 |
||
|
53882C
|
53882C
53882-26010 Seal, Front Fender Main[08.2006 -] KLH1#,2# |
53882-26010 |
US $1.97 |
||
|
53885G
|
53885G
53807-26010 Seal Sub-Assy, Fender Apron Mudguard, Rh[07.1999 - 08.2006] KLH12,22 |
53807-26010 |
US $44.99 |
||
| replacement | |||||
|
53885G
|
53885G
53807-26011 Seal Sub-Assy, Fender Apron Mudguard, RhFENDER APRON MUDGUARD, RH [07.1999 - 08.2006] KLH12,22 |
53807-26011 |
US $37.42 |
||
|
53885G
|
53885G
53807-26011 Seal Sub-Assy, Fender Apron Mudguard, RhFENDER APRON MUDGUARD, RH [04.2007 -] KLH12,22 |
53807-26011 |
US $37.42 |
||
|
53886G
|
53886G
53808-26010 Seal, Fender Apron Mudguard, Lh[07.1999 - 08.2006] KLH12,22 |
53808-26010 |
US $44.99 |
||
| replacement | |||||
|
53886G
|
53886G
53808-26011 Seal, Fender Apron Mudguard, LhFENDER APRON MUDGUARD, LH [07.1999 - 08.2006] KLH12,22 |
53808-26011 |
US $37.42 |
||
|
53886G
|
53886G
53808-26011 Seal, Fender Apron Mudguard, LhFENDER APRON MUDGUARD, LH [04.2007 -] KLH12,22 |
53808-26011 |
US $37.42 |
||
|
76109
|
76109
76109-26020
Guide Sub-Assy, Hood Air Intake
[08.2006 -] KLH1#,2# |
76109-26020 |
— | ||
|
76603
|
76603
76621-26010
Mudguard Sub-Assy, Front Fender, Rh
[07.1999 - 08.2006] KLH1#,2# |
76621-26010 |
— | ||
| replacement | |||||
|
76603
|
76603
76621-26011 Mudguard Sub-Assy, Front Fender, Rh[07.1999 - 08.2006] KLH1#,2# |
76621-26011 |
US $62.17 |
||
|
76604
|
76604
76622-26020 Mudguard Sub-Assy, Front Fender, Lh[07.1999 - 08.2006] KLH1#,2# |
76622-26020 |
US $48.48 |
||
| replacement | |||||
|
76604
|
76604
76622-26021 Mudguard Sub-Assy, Front Fender, Lh[07.1999 - 08.2006] KLH1#,2# |
76622-26021 |
US $48.48 |
||
|
9010906194
|
9010906194
90109-06194 Bolt, Body Mounting |
90109-06194 |
US $2.15 |
||
|
9015950348
|
9015950348
90159-50348 New Genuine Part |
90159-50348 |
US $1.97 |
||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.58 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.68 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9018906073
|
9018906073
90189-06073 GROMMET |
90189-06073 |
US $1.61 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9046706084
|
9046706084
90467-06084 Clip(For Headlamp Cover Seal) |
90467-06084 |
from US $1.01 |
||
|
9046707021
|
9046707021
90467-07021 CLIP |
90467-07021 |
US $2.33 |
||
|
9046707049C0
|
9046707049C0
90467-07049-C0 Clip |
90467-07049-C0 |
US $1.79 |
||
|
9046707069
|
9046707069
90467-07069 Clip (For Quarter Inside Trim Board) |
90467-07069 |
US $2.15 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.82 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.38 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.31 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9046709184
|
9046709184
90467-09184 CLIP |
90467-09184 |
US $4.30 |
||
|
9054115004
|
9054115004
90541-15004 Cushion, Hood Bumper |
90541-15004 |
from US $2.76 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.25 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
