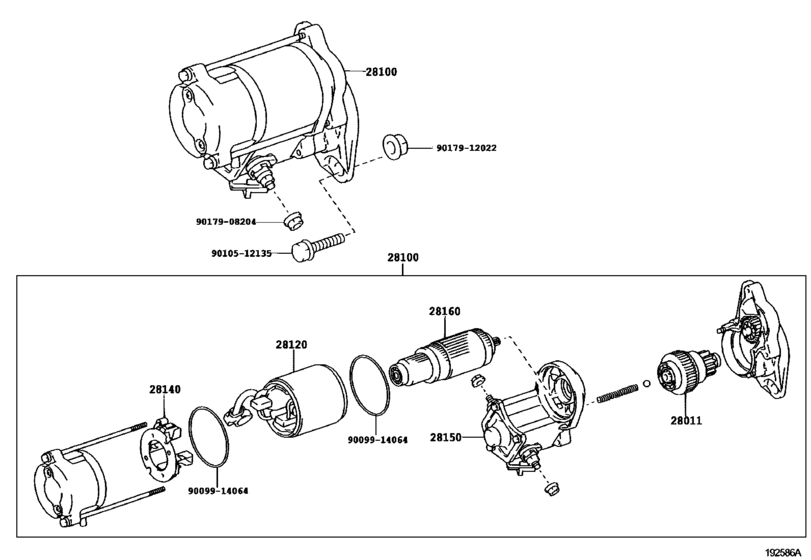

Starter ([08.2006 - ] 12V 2.0KW (0608- )) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-30040 Clutch Sub-Assy, Starter[08.2001 - 08.2006] 2KDFTV..KLH1#,2#..MTM 12V 2.0KW |
28011-30040 |
from US $141.45 |
||
|
28011
|
28011
28011-30050 Clutch Sub-Assy, Starter[08.2006 -] 2KDFTV..KLH1#,2# 12V 2.7KW |
28011-30050 |
US $257.71 |
||
|
28011
|
28011
28011-67020 Clutch Sub-Assy, Starter[08.2001 - 08.2006] 2KDFTV..KLH1#,2# 12V 2.7KW |
28011-67020 |
US $409.14 |
||
|
28100
|
28100
28100-30050
Starter Assy
[08.2006 - 05.2009] 2KDFTV..KLH1#,2# 12V 2.7KW,COLD SPEC |
28100-30050 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-30051 Starter Assy[08.2006 - 05.2009] 2KDFTV..KLH1#,2# 12V 2.7KW,COLD SPEC |
28100-30051 |
US $1,342.16 |
||
|
28100
|
28100
28100-30051 Starter Assy[06.2009 -] 2KDFTV..KLH1#,2# 12V 2.7KW,COLD SPEC |
28100-30051 |
US $1,342.16 |
||
|
28100
|
28100
28100-30060 Starter Assy[08.2001 - 08.2006] 2KDFTV..KLH1#,2#..MTM 12V 2.0KW |
28100-30060 |
US $1,514.24 |
||
|
28100
|
28100
28100-67070
Starter Assy
[08.2001 - 08.2006] 2KDFTV..KLH1#,2# 12V 2.7KW |
28100-67070 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-30051 Starter Assy[08.2001 - 08.2006] 2KDFTV..KLH1#,2# 12V 2.7KW |
28100-30051 |
US $1,342.16 |
||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[07.1999 - 08.2006] 2KDFTV..KLH1#,2#..MTM 12V 2.0KW |
28120-54380 |
US $182.40 |
||
|
28120
|
28120
28120-67020
Yoke Assy, Starter
[08.2001 - 08.2006] 2KDFTV..KLH1#,2# 12V 2.7KW |
28120-67020 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[07.1999 - 08.2006] 2KDFTV..KLH1#,2#..MTM 12V 2.0KW |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[07.1999 - 08.2006] 2KDFTV..KLH1#,2# 12V 2.7KW |
28140-77090 |
from US $55.39 |
||
|
28150
|
28150
28150-30050 Switch Assy, Magnet Starter[08.2006 -] 2KDFTV..KLH1#,2# 12V 2.7KW |
28150-30050 |
US $211.12 |
||
|
28150
|
28150
28150-30060 Switch Assy, Magnet StarterMAGNET STARTER [08.2001 - 08.2006] 2KDFTV..KLH1#,2#..MTM 12V 2.0KW |
28150-30060 |
US $235.87 |
||
|
28150
|
28150
28150-67070 Switch Assy, Magnet Starter[08.2001 - 08.2006] 2KDFTV..KLH1#,2# 12V 2.7KW |
28150-67070 |
from US $200.93 |
||
|
28160
|
28160
28160-54140 Armature Assy, Starter[07.1999 - 08.2006] 2KDFTV..KLH1#,2# 12V 2.7KW |
28160-54140 |
from US $185.07 |
||
|
28160
|
28160
28160-54380
Armature Assy, Starter
[07.1999 - 08.2006] 2KDFTV..KLH1#,2#..MTM 12V 2.0KW |
28160-54380 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9010512135
|
9010512135
90105-12135 Bolt(For Rear Transaxle Case Cover) |
90105-12135 |
US $1.93 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9017912022
|
9017912022
90179-12022 Nut(For Vane Pump Pulley) |
90179-12022 |
US $6.63 |
||
