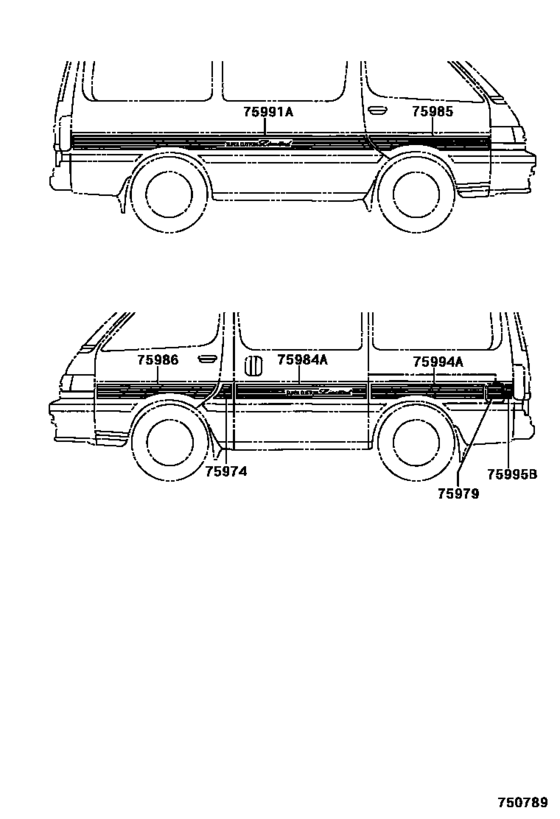

Body Stripe ([08.1995 - 08.1996] (9508-9608)SCL) Diagram Toyota HIACE
- Year
- 1993 - 2004
- Sales region
- Japan
- Frame
- KZH106
- grade
- SCL
- body
- WG
- Roof
- MRF
- ENGINE
- 1KZTE
- Model
- HIACE/REGIUSACE
- From
- 08.1993
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 07S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75974
|
75974
75942-26040 Stripe, Center Pillar, Lh No.2[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75942-26040 |
US $48.48 |
||
|
75974
|
75974
75942-26041 Stripe, Center Pillar, Lh No.2[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75942-26041 |
US $48.48 |
||
|
75974
|
75974
75942-26110 Stripe, Center Pillar, Lh No.2[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75942-26110 |
US $43.68 |
||
|
75974
|
75974
75942-26310
Stripe, Center Pillar, Lh No.2
[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75942-26310 |
— | ||
|
75979
|
75979
75979-26060 Stripe, Fuel Filler Opening Lid[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75979-26060 |
US $34.07 |
||
|
75979
|
75979
75979-26061 Stripe, Fuel Filler Opening Lid[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75979-26061 |
US $34.07 |
||
|
75979
|
75979
75979-26140 Stripe, Fuel Filler Opening Lid[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75979-26140 |
US $29.12 |
||
|
75979
|
75979
75979-26270 Stripe, Fuel Filler Opening Lid[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75979-26270 |
US $34.36 |
||
|
75984A
|
75984A
75984-26070 Stripe, Slide Door[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75984-26070 |
US $116.48 |
||
|
75984A
|
75984A
75984-26071 Stripe, Slide Door[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75984-26071 |
US $116.48 |
||
|
75984A
|
75984A
75984-26140 Stripe, Slide Door[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75984-26140 |
US $144.14 |
||
|
75984A
|
75984A
75984-26370
Stripe, Slide Door
[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75984-26370 |
— | ||
|
75985
|
75985
75985-26060 Stripe, Front Door, Rh[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75985-26060 |
US $133.95 |
||
|
75985
|
75985
75985-26061 Stripe, Front Door, Rh[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75985-26061 |
US $133.95 |
||
|
75985
|
75985
75985-26130 Stripe, Front Door, Rh[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75985-26130 |
US $132.50 |
||
|
75985
|
75985
75985-26340 Stripe, Front Door, Rh[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75985-26340 |
US $142.69 |
||
|
75986
|
75986
75986-26060 Stripe, Front Door, Lh[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75986-26060 |
US $133.95 |
||
|
75986
|
75986
75986-26061 Stripe, Front Door, Lh[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75986-26061 |
US $133.95 |
||
|
75986
|
75986
75986-26130 Stripe, Front Door, Lh[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75986-26130 |
US $132.50 |
||
|
75986
|
75986
75986-26330
Stripe, Front Door, Lh
[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75986-26330 |
— | ||
|
75991A
|
75991A
75991-26080
Stripe, Quarter, Rh
[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75991-26080 |
— | ||
|
75991A
|
75991A
75991-26081 Stripe, Quarter, Rh[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75991-26081 |
US $248.98 |
||
|
75991A
|
75991A
75991-26150 Stripe, Quarter, Rh[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75991-26150 |
US $254.80 |
||
|
75991A
|
75991A
75991-26390 Stripe, Quarter, Rh[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75991-26390 |
US $264.99 |
||
|
75994A
|
75994A
75994-26080 Stripe, Quarter Extension[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75994-26080 |
US $141.23 |
||
|
75994A
|
75994A
75994-26081 Stripe, Quarter Extension[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75994-26081 |
US $141.23 |
||
|
75994A
|
75994A
75994-26170 Stripe, Quarter Extension[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75994-26170 |
US $138.32 |
||
|
75994A
|
75994A
75994-26340 Stripe, Quarter Extension[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75994-26340 |
US $142.69 |
||
|
75995B
|
75995B
75995-26070 Stripe, Quarter Rear End[08.1993 - 08.1995] KZH10#,RZH101..SCL |
75995-26070 |
US $24.32 |
||
|
75995B
|
75995B
75995-26071 Stripe, Quarter Rear End[08.1995 - 08.1996] KZH10#,RZH101..SCL |
75995-26071 |
US $24.32 |
||
|
75995B
|
75995B
75995-26140 Stripe, Quarter Rear End[08.1996 - 07.1999] KZH10#,RZH101..SCL |
75995-26140 |
US $24.32 |
||
|
75995B
|
75995B
75995-26280 Stripe, Quarter Rear End[07.1999 - 08.2004] KZH10#,RZH101..SCL |
75995-26280 |
US $24.46 |
