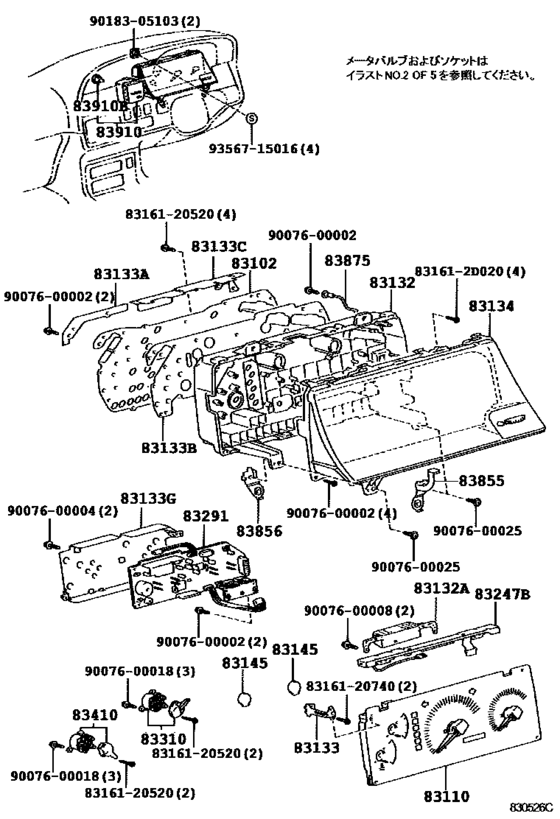

Meter ([07.1999 - ] ｽﾋﾟｰﾄﾞﾒｰﾀ (9907- )SCL) Diagram Toyota HIACE
- Year
- 1993 - 2004
- Sales region
- Japan
- Frame
- KZH106
- grade
- SCL
- body
- WG
- Roof
- MRF
- ENGINE
- 1KZTE
- Model
- HIACE/REGIUSACE
- From
- 08.1993
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 07S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83102
|
83102
83149-2A520 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1994 - 08.1996] KZH106..SCL |
83149-2A520 |
US $57.80 |
||
|
83102
|
83102
83247-2C040 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1993 - 08.1994] KZH10#..SCL; KZH12# ｱﾘ(*80); KZH10#..08S ｱﾘ(*80 OR TEMS) |
83247-2C040 |
US $55.04 |
||
|
83102
|
83102
83861-26440 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1996 - 08.1998] KZH106..SCL |
83861-26440 |
US $57.95 |
||
|
83102
|
83102
83861-26441 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1998 - 07.1999] KZH106..SCL |
83861-26441 |
US $57.95 |
||
|
83102
|
83102
83861-2F280 Plate Sub-Assy, Combination Meter Circuit, No.1[07.1999 - 08.2004] KZH106..SCL |
83861-2F280 |
US $58.24 |
||
|
83110
|
83110
83220-26290 Speedometer Assy[07.1999 - 08.2004] KZH106..SCL |
83220-26290 |
US $1,001.73 |
||
|
83132
|
83132
83132-26140 Case, Combination Meter[08.1993 - 08.1994] KZH120 ｱﾘ(*80); KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
83132-26140 |
US $27.66 |
||
|
83132
|
83132
83841-26420 Case, Combination Meter[08.1996 - 07.1999] KZH10#,RZH101..SCL |
83841-26420 |
US $27.96 |
||
|
83132
|
83132
83841-2F260 Case, Combination Meter[07.1999 - 08.2004] KZH10#,RZH101..SCL |
83841-2F260 |
US $27.66 |
||
|
83132A
|
83132A
83842-26510
Case, Meter
[07.1999 - 08.2004] KZH10#..SCL |
83842-26510 |
— | ||
|
83133
|
83133
83811-26510 Plate, Combination Meter, No.1[07.1999 - 08.2004] KZH10#..SCL |
83811-26510 |
US $6.70 |
||
|
83133A
|
83133A
83812-26510 Plate, Combination Meter, No.2[07.1999 - 08.2004] KZH10#..SCL |
83812-26510 |
US $7.28 |
||
|
83133B
|
83133B
83811-2F260 Plate, Combination Meter, No.3[07.1999 - 08.2004] KZH10#..SCL |
83811-2F260 |
US $55.18 |
||
|
83133C
|
83133C
83812-2F260 Plate, Combination Meter,no.4[07.1999 - 08.2004] KZH10#..SCL |
83812-2F260 |
US $7.28 |
||
|
83133G
|
83133G
83813-2F260 Plate,combination Meter[07.1999 - 08.2004] KZH10#..SCL |
83813-2F260 |
US $22.71 |
||
|
83134
|
83134
83134-26280
Cover, Combination Meter, No.1
[08.1993 - 08.1994] KZH12# ｱﾘ(*80); KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
83134-26280 |
— | ||
|
83134
|
83134
83821-26680 Cover, Combination Meter, No.1[07.1999 - 08.2004] KZH10#,RZH101..SCL |
83821-26680 |
US $80.08 |
||
|
83145
|
83145
83149-26880 Lens, Meter, No.1[08.1993 - 08.1996] KZH10#,RZH101..SCL |
83149-26880 |
US $57.80 |
||
|
83145
|
83145
83821-26420 Lens, Meter, No.1[08.1996 - 08.1998] KZH10#,RZH101..SCL |
83821-26420 |
US $31.60 |
||
|
83145
|
83145
83821-26421 Lens, Meter, No.1[08.1998 - 07.1999] KZH10#,RZH101..SCL |
83821-26421 |
US $31.60 |
||
|
83145
|
83145
83833-26010 Lens, Meter, No.1[07.1999 - 01.2005] KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12# |
83833-26010 |
from US $2.87 |
||
|
83247B
|
83247B
83862-26680 Plate, Meter Circuit, No.2[07.1999 - 08.2004] KZH10#..SCL |
83862-26680 |
US $51.83 |
||
|
83291
|
83291
83291-26070 Computer, Combination Meter[08.1993 - 08.1994] KZH10#,12#..07S,08S,10S |
83291-26070 |
US $2,082.08 |
||
| replacement | |||||
|
83291
|
83291
83291-26071 Computer, Combination Meter[08.1993 - 08.1994] KZH10#,12#..07S,08S,10S |
83291-26071 |
US $2,082.08 |
||
|
83291
|
83291
83291-26071 Computer, Combination Meter[11.1994 - 08.1995] KZH10#..SCL |
83291-26071 |
US $2,082.08 |
||
|
83291
|
83291
83291-26072 Computer, Combination Meter[08.1995 - 08.1996] KZH10#..SCL |
83291-26072 |
US $2,067.52 |
||
|
83291
|
83291
83291-26110 Computer, Combination Meter[08.1996 - 06.1997] KZH10#..SCL |
83291-26110 |
US $2,067.52 |
||
| replacement | |||||
|
83291
|
83291
83291-26111 Computer, Combination Meter[08.1996 - 06.1997] KZH10#..SCL |
83291-26111 |
US $2,082.08 |
||
|
83291
|
83291
83291-26111 Computer, Combination Meter[06.1997 - 07.1999] KZH10#..SCL |
83291-26111 |
US $2,082.08 |
||
|
83291
|
83291
83291-26190 Computer, Combination Meter[07.1999 - 08.2004] KZH10#..SCL |
83291-26190 |
US $559.10 |
||
|
83310
|
83310
83882-2F260 Gage Assy, Fuel Receiver[07.1999 - 08.2004] KZH10#..SCL |
83882-2F260 |
US $70.62 |
||
|
83410
|
83410
83883-26510 Gage Assy, Water Temperature Receiver[07.1999 - 08.2004] KZH10#..SCL |
83883-26510 |
US $72.22 |
||
|
83855
|
83855
83855-2F260 Bracket, Combination Meter, No.1[07.1999 - 08.2004] KZH10#..SCL |
83855-2F260 |
US $5.10 |
||
|
83856
|
83856
83856-2F260 Bracket, Combination Meter, No.2[07.1999 - 08.2004] KZH10#..SCL |
83856-2F260 |
US $4.37 |
||
|
83875
|
83875
83875-2F260 Wire, Combination Meter, No.1[07.1999 - 08.2004] KZH10#..SCL |
83875-2F260 |
US $3.49 |
||
|
83910
|
83910
83910-26010 Clock Assy[08.1993 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
83910-26010 |
US $425.15 |
||
|
83910
|
83910
83910-26040 Clock Assy[07.1999 - 08.2004] KZH10#,11#,120,13#,RZH101,111 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
83910-26040 |
US $428.06 |
||
|
83910
|
83910
83910-26050 Clock Assy[07.1999 - 08.2004] KZH10#,120,13#,RZH101 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ- & ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
83910-26050 |
US $503.78 |
||
|
83910B
|
83910B
90072-02005 Bulb, Transmission Indicator Lamp[07.1999 - 08.2004] KZH10#,11#,120,13# １４Ｖ １．１２Ｗ |
90072-02005 |
from US $1.17 |
||
|
831612D020
|
831612D020
83161-2D020 Case, Combination Meter Mirror, No.1 |
83161-2D020 |
US $0.87 |
||
|
8316120520
|
8316120520
83161-20520 Case, Combination Meter Mirror, No.1 |
83161-20520 |
US $1.02 |
||
|
8316120740
|
8316120740
83161-20740 Case, Combination Meter Mirror, No.1 |
83161-20740 |
US $1.75 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $4.08 |
||
|
9007600004
|
9007600004
90076-00004 New Genuine Part |
90076-00004 |
US $0.73 |
||
|
9007600008
|
9007600008
90076-00008 New Genuine Part |
90076-00008 |
US $0.73 |
||
|
9007600018
|
9007600018
90076-00018 New Genuine Part |
90076-00018 |
US $3.79 |
||
|
9007600025
|
9007600025
90076-00025 New Genuine Part |
90076-00025 |
US $3.49 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9356715016
|
9356715016
93567-15016
New Genuine Part
|
93567-15016 |
— | ||
| replacement | |||||
|
9356715016
|
9356715016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
