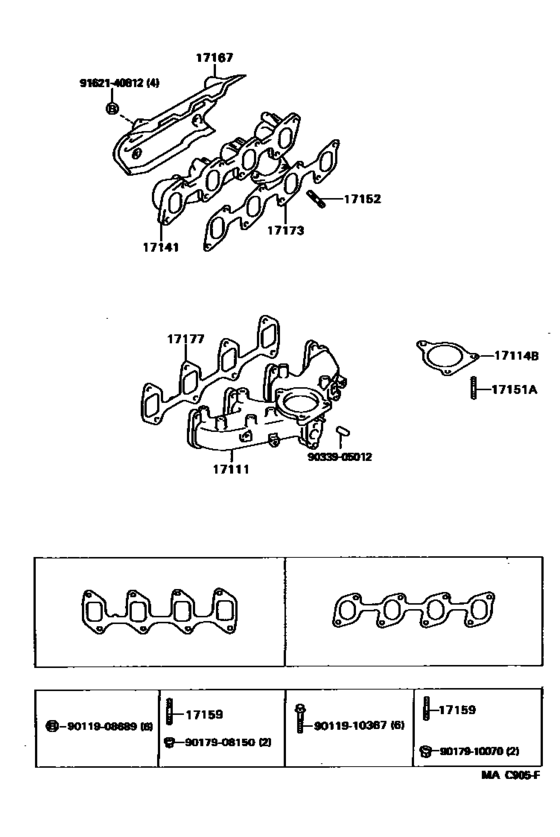

Manifold ([08.1989 - ] (8908- )2L) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-54101 Manifold, Intake[08.1989 - 08.1995] 2L..LH10#,11# |
17101-54101 |
US $310.13 |
||
|
17114B
|
17114B
17116-54021
Gasket, Intake Flange
[08.1989 - 08.1995] 2L..LH10#,11# |
17116-54021 |
— | ||
| replacement | |||||
|
17114B
|
17114B
17116-54030 Gasket, Intake Flange[08.1989 - 08.1995] 2L..LH10#,11# |
17116-54030 |
from US $4.04 |
||
|
17141
|
17141
17141-54110
Manifold, Exhaust
[08.1989 - 08.1995] 2L..LH10#,11# |
17141-54110 |
— | ||
|
17151A
|
17151A
90116-08293 Bolt, Stud(For Manifold To Venturi)[08.1989 - 08.1995] 2L..LH10#,11# |
90116-08293 |
US $1.75 |
||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1989 - 08.1995] 2L..LH10#,11# |
90116-10088 |
from US $1.01 |
||
|
17159
|
17159
90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)[08.1989 - 04.1992] 2L..LH10#,11# INTAKE SIDE |
90116-08220 |
US $3.40 |
||
|
17159
|
17159
90116-10141 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1989 - 08.1993] 2L..LH10#,11# EXHAUST SIDE |
90116-10141 |
US $4.12 |
||
|
17159
|
17159
92132-60820 Bolt, Stud(For Intake Manifold To Cylinder Head)[04.1992 - 01.1993] 2L..LH10#,11# INTAKE SIDE |
92132-60820 |
US $0.79 |
||
|
17167
|
17167
17167-54070 Insulator, Exhaust Manifold Heat, No.1[08.1989 - 05.1995] 2L..LH10#,11# |
17167-54070 |
US $126.67 |
||
|
17167
|
17167
17167-54110 Insulator, Exhaust Manifold Heat, No.1[05.1995 - 08.1995] 2L..LH10#,11# |
17167-54110 |
US $64.82 |
||
|
17173
|
17173
17173-54030 Gasket, Exhaust Manifold To Head[08.1989 - 08.1995] 2L..LH10#,11# |
17173-54030 |
from US $13.81 |
||
| replacement | |||||
|
17173
|
17173
17173-05010
Gasket, Exhaust Manifold To Head
[08.1989 - 08.1995] 2L..LH10#,11# |
17173-05010 |
— | ||
|
17177
|
17177
17177-54020
Gasket, Intake Manifold To Head, No.1
[08.1989 - 07.1995] 2L..LH10#,11# |
17177-54020 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-54021 Gasket, Intake Manifold To Head, No.1[08.1989 - 07.1995] 2L..LH10#,11# |
17177-54021 |
from US $6.94 |
||
|
17177
|
17177
17177-54021 Gasket, Intake Manifold To Head, No.1[07.1995 - 08.1995] 2L..LH10#,11# |
17177-54021 |
from US $6.94 |
||
|
9011908689
|
9011908689
90119-08689
Bolt(For Clutch Release Cylinder Setting)
|
90119-08689 |
— | ||
| replacement | |||||
|
9011908689
|
9011908689
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011910367
|
9011910367
90119-10367 BOLT |
90119-10367 |
from US $1.40 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.81 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
