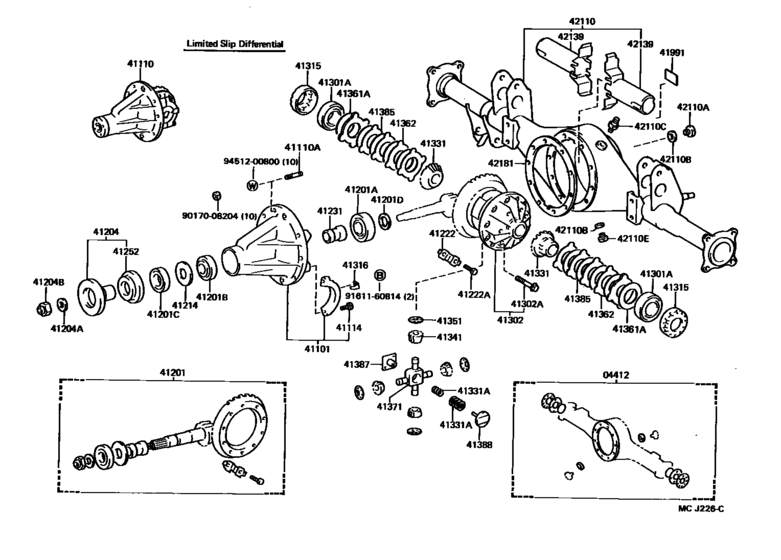

Rear Axle Housing & Differential ([08.1989 - ] LIMITED SLIP DIFFERENTIAL (8908- )) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04412
|
04412
04412-35071 Gasket Kit, Rear Differential Carrier[08.1989 - 08.1995] LH102,112,RZH102,103,112,113,115 |
04412-35071 |
US $11.18 |
||
|
41101
|
41101
41101-35031 Carrier Sub-Assy, Differential, Rear[08.1989 - 08.1995] RZH113;LH102,112,RZH102,103,112,115..5F |
41101-35031 |
US $617.34 |
||
|
41110
|
41110
41110-35212 Carrier Assy, Differential, Rear[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300 |
41110-35212 |
US $2,402.40 |
||
| replacement | |||||
|
41110
|
41110
41110-35214 CARRIER ASSY,[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300 |
41110-35214 |
US $2,402.40 |
||
|
41110
|
41110
41110-35302 Carrier Assy, Differential, Rear[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300,W(LSD) |
41110-35302 |
US $3,610.88 |
||
| replacement | |||||
|
41110
|
41110
41110-3D042
Carrier Assy, Differential, Rear
[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300,W(LSD) |
41110-3D042 |
— | ||
|
41110A
|
41110A
90116-08329 Bolt, No.1 (For Rear Differential Carrier Set)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# S=17 & 12,L=37 |
90116-08329 |
from US $1.05 |
||
|
41110A
|
41110A
90116-08334 Bolt, No.1 (For Rear Differential Carrier Set)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# S=12 & 14,L=44 |
90116-08334 |
US $2.15 |
||
|
41114
|
41114
90105-12053 Bolt (For Rear Differential Carrier)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90105-12053 |
from US $1.46 |
||
|
41201
|
41201
41201-29795 Final Gear Kit, Differential, Rear[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300 |
41201-29795 |
US $895.44 |
||
| replacements | |||||
|
41201
|
41201
41201-80752 Final Gear Kit, Differential, Rear[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300 |
41201-80752 |
US $865.66 |
||
|
41201
|
41201
41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300 |
41204-35082 |
from US $75.25 |
||
|
41201
|
41201
41214-26011 Slinger, Rear Differential Drive Pinion Oil[08.1989 - 08.1995] LH102,112,RZH102,112..5F *FGR=43:10=4.300 |
41214-26011 |
from US $4.50 |
||
|
41201A
|
41201A
90366-35044 Bearing (For Rear Drive Pinion Rear)[08.1989 - 08.1995] LH10#,11#,RZH102,103,112,113,115 |
90366-35044 |
from US $42.84 |
||
|
41201B
|
41201B
90366-30022
Bearing (For Rear Drive Pinion Front)
[08.1989 - 08.1995] LH10#,11#,RZH102,103,112,113,115 |
90366-30022 |
— | ||
| replacement | |||||
|
41201B
|
41201B
90366-30078 Bearing (For Rear Drive Pinion Front)[08.1989 - 08.1995] LH10#,11#,RZH102,103,112,113,115 |
90366-30078 |
from US $32.94 |
||
|
41201C
|
41201C
90311-38133
Seal, Oil (For Rear Differential Carrier)
[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90311-38133 |
— | ||
| replacement | |||||
|
41201C
|
41201C
90311-38047 Seal, Oil (For Differential Carrier)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90311-38047 |
from US $6.22 |
||
|
41201D
|
41201D
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.70 |
90201-35497 |
from US $2.83 |
||
|
41201D
|
41201D
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.73 |
90201-35498 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.76 |
90201-35499 |
from US $2.79 |
||
|
41201D
|
41201D
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.79 |
90201-35500 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.82 |
90201-35501 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.85 |
90201-35502 |
from US $3.10 |
||
|
41201D
|
41201D
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.88 |
90201-35503 |
from US $2.93 |
||
|
41201D
|
41201D
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.91 |
90201-35504 |
US $3.23 |
||
|
41201D
|
41201D
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.94 |
90201-35505 |
US $3.23 |
||
|
41201D
|
41201D
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=1.97 |
90201-35506 |
US $3.23 |
||
|
41201D
|
41201D
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.00 |
90201-35507 |
from US $2.89 |
||
|
41201D
|
41201D
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.03 |
90201-35508 |
from US $2.93 |
||
|
41201D
|
41201D
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.06 |
90201-35509 |
from US $2.91 |
||
|
41201D
|
41201D
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.09 |
90201-35510 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.12 |
90201-35511 |
from US $2.91 |
||
|
41201D
|
41201D
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.15 |
90201-35512 |
US $3.23 |
||
|
41201D
|
41201D
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.18 |
90201-35513 |
from US $3.16 |
||
|
41201D
|
41201D
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.21 |
90201-35514 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.24,MARK 01 |
90201-35515 |
US $2.15 |
||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.27,MARK 02 |
90201-35516 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.30,MARK 03 |
90201-35517 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=2.33,MARK 04 |
90201-35518 |
from US $2.15 |
||
|
41204
|
41204
41204-35040 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
41204-35040 |
from US $83.79 |
||
|
41204A
|
41204A
90201-20005 Washer, Plate (For Flange Yoke)[08.1989 - 08.1993] LH10#,11#,RZH10#,11# |
90201-20005 |
from US $2.07 |
||
|
41204B
|
41204B
90179-20001 Nut (For Manual Transmission Output Shaft Rear Set)[08.1989 - 08.1993] LH10#,11#,RZH10#,11# |
90179-20001 |
from US $4.97 |
||
|
41204B
|
41204B
90179-20018 Nut (For Rear Drive Pinion)[08.1993 - 08.1995] LH10#,11#,RZH10#,11# OD=37 |
90179-20018 |
from US $2.34 |
||
|
41214
|
41214
41214-26010 Slinger, Rear Differential Drive Pinion Oil[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
41214-26010 |
from US $7.57 |
||
|
41222
|
41222
41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
41222-35020 |
from US $2.73 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90101-11353 |
from US $0.90 |
||
|
41231
|
41231
41231-40011 Spacer, Rear Differential Drive Pinion Bearing[08.1989 - 08.1995] LH10#,11#,RZH102,103,112,113,115 |
41231-40011 |
from US $21.55 |
||
|
41252
|
41252
41252-35010
Deflector, Dust (For Rear Differential)
[08.1989 - 03.1993] LH10#,11#,RZH10#,11# |
41252-35010 |
— | ||
| replacement | |||||
|
41252
|
41252
41252-35020 Deflector, Dust (For Rear Differential)[08.1989 - 03.1993] LH10#,11#,RZH10#,11# |
41252-35020 |
from US $7.74 |
||
|
41252
|
41252
41252-35020 Deflector, Dust (For Rear Differential)[03.1993 - 08.1995] LH10#,11#,RZH10#,11# |
41252-35020 |
from US $7.74 |
||
|
41301A
|
41301A
90368-45066 Bearing(For Rear Differential Case)[08.1989 - 08.1991] LH10#,11#,RZH102,103,112,113,115 |
90368-45066 |
from US $39.65 |
||
|
41301A
|
41301A
90368-50024 Bearing(For Rear Differential Case)[08.1989 - 08.1995] RZH113..4FC W(LSD); RZH103,113,115..5F W(LSD); LH102,112,RZH102,112..5F W(LSD) |
90368-50024 |
from US $49.39 |
||
|
41302
|
41302
41302-35010
Case Sub-Assy, Rear Differential
[08.1989 - 08.1995] RZH113..4FC W(LSD); RZH103,113,115..5F W(LSD); LH102,112,RZH102,112..5F W(LSD) |
41302-35010 |
— | ||
| replacement | |||||
|
41302
|
41302
41302-35040
Case Sub-Assy, Rear Differential
[08.1989 - 08.1995] RZH113..4FC W(LSD); RZH103,113,115..5F W(LSD); LH102,112,RZH102,112..5F W(LSD) |
41302-35040 |
— | ||
|
41302
|
41302
41311-40020 Case Sub-Assy, Rear Differential[08.1989 - 08.1991] LH10#,11#,RZH102,103,112,113,115 |
41311-40020 |
US $273.61 |
||
|
41302A
|
41302A
90105-10084
Bolt(For Rear Differential Case)
[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90105-10084 |
— | ||
| replacement | |||||
|
41302A
|
41302A
90105-10570 Bolt(For Rear Differential Case)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90105-10570 |
US $1.49 |
||
|
41315
|
41315
41315-35010 Nut, Rear Differential Bearing Adjusting[08.1989 - 08.1995] LH10#,11#,RZH102,103,112,113,115 |
41315-35010 |
US $6.81 |
||
|
41316
|
41316
41316-30010 Lock, Rear Differential Bearing Adjusting Nut[08.1989 - 05.1993] LH10#,11#,RZH102,103,112,113,115 |
41316-30010 |
US $1.97 |
||
|
41316
|
41316
41316-35010 Lock, Rear Differential Bearing Adjusting Nut[05.1993 - 08.1995] LH10#,11#,RZH10#,11# |
41316-35010 |
US $1.61 |
||
|
41331
|
41331
41331-35011 Gear, Rear Differential Side[08.1989 - 08.1991] LH10#,11#,RZH102,103,112,113,115 |
41331-35011 |
from US $60.98 |
||
|
41331
|
41331
41331-35030
Gear, Rear Differential Side
[08.1989 - 08.1995] RZH113..4FC W(LSD); RZH103,113,115..5F W(LSD); LH102,112,RZH102,112..5F W(LSD) |
41331-35030 |
— | ||
| replacement | |||||
|
41331
|
41331
41039-34070 Gear Kit, Differential, Rear[08.1989 - 08.1995] RZH113..4FC W(LSD); RZH103,113,115..5F W(LSD); LH102,112,RZH102,112..5F W(LSD) |
41039-34070 |
from US $192 |
||
|
41331A
|
41331A
90501-35008
Spring, Compression
[08.1989 - 08.1991] LH10#,11#,RZH10#,11# OD=23.5 |
90501-35008 |
— | ||
|
41331A
|
41331A
90501-70001
Spring, Compression
[08.1991 - 08.1995] LH10#,11#,RZH10#,11# |
90501-70001 |
— | ||
|
41331A
|
41331A
90501-75001
Spring, Compression
[08.1989 - 08.1991] LH10#,11#,RZH10#,11# OD=32.0 |
90501-75001 |
— | ||
|
41341
|
41341
41341-30020
Pinion, Rear Differential
[08.1994 - 08.1995] LH112..4FC;LH108,118,RZH109,119; RZH113..4FC W(LSD); RZH103,113..5F W(LSD); LH102,112,RZH102..5F W(LSD) |
41341-30020 |
— | ||
| replacement | |||||
|
41341
|
41341
41341-30050 Pinion, Rear Differential[08.1994 - 08.1995] LH112..4FC;LH108,118,RZH109,119; RZH113..4FC W(LSD); RZH103,113..5F W(LSD); LH102,112,RZH102..5F W(LSD) |
41341-30050 |
US $47.54 |
||
|
41341
|
41341
41341-35010
Pinion, Rear Differential
[08.1989 - 08.1994] LH112..4FC W(LSD); RZH113..4FC W(LSD); LH102,112,RZH102,112..5F W(LSD); RZH103,113,115..5F W(LSD) |
41341-35010 |
— | ||
| replacement | |||||
|
41341
|
41341
41341-14041 Pinion, Front Differential[08.1989 - 08.1994] LH112..4FC W(LSD); RZH113..4FC W(LSD); LH102,112,RZH102,112..5F W(LSD); RZH103,113,115..5F W(LSD) |
41341-14041 |
US $40.36 |
||
|
41341
|
41341
41341-35020 Pinion, Rear Differential[08.1989 - 08.1991] LH10#,11#,RZH102,103,112,113,115 |
41341-35020 |
from US $28.39 |
||
|
41351
|
41351
41351-30052 Washer, Rear Differential Pinion Thrust[08.1989 - 08.1991] LH10#,11#,RZH102,103,112,113,115 |
41351-30052 |
from US $1.48 |
||
|
41351
|
41351
41351-30060 Washer, Rear Differential Pinion Thrust[08.1989 - 08.1995] RZH113..4FC W(LSD); RZH103,113,115..5F W(LSD); LH102,112,RZH102,112..5F W(LSD) |
41351-30060 |
from US $2.07 |
||
|
41361A
|
41361A
90564-50001 Washer, Plate (For Rear Differential Side Gear Shaft)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=0.15 |
90564-50001 |
US $2.15 |
||
|
41361A
|
41361A
90564-50002 Washer, Plate (For Rear Differential Side Gear Shaft)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=0.20 |
90564-50002 |
US $2.69 |
||
|
41361A
|
41361A
90564-50003 Washer, Plate (For Rear Differential Side Gear Shaft)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=0.25 |
90564-50003 |
US $1.51 |
||
|
41361A
|
41361A
90564-50004 Washer, Plate (For Rear Differential Side Gear Shaft)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=0.30 |
90564-50004 |
US $2.69 |
||
|
41361A
|
41361A
90564-50005 Washer, Plate (For Rear Differential Side Gear Shaft)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# T=0.35 |
90564-50005 |
from US $2.06 |
||
|
41362
|
41362
41361-35020 Washer, Rear Differential Side Gear Thrust, No.1[08.1989 - 08.1991] LH10#,11#,RZH10#,11# T=1.8 |
41361-35020 |
US $17.92 |
||
|
41362
|
41362
41361-35160
Washer, Rear Differential Side Gear Thrust, No.1
[08.1991 - 08.1995] LH10#,11#,RZH10#,11# T=1.8 |
41361-35160 |
— | ||
| replacement | |||||
|
41362
|
41362
41361-35161 Washer, Rear Differential Side Gear Thrust, No.1[08.1991 - 08.1995] LH10#,11#,RZH10#,11# T=1.8 |
41361-35161 |
from US $11.65 |
||
|
41362
|
41362
41361-35290 Washer, Rear Differential Side Gear Thrust, No.1[08.1991 - 08.1995] LH10#,11#,RZH10#,11# T=1.70,MARK N |
41361-35290 |
US $10.63 |
||
| replacement | |||||
|
41362
|
41362
41361-35291 Washer, Rear Differential Side Gear Thrust, No.1[08.1991 - 08.1995] LH10#,11#,RZH10#,11# T=1.70,MARK N |
41361-35291 |
from US $11.65 |
||
|
41371
|
41371
41306-35010 Spider Sub-Assy, Front Differential[08.1989 - 08.1991] LH10#,11#,RZH102,103,112,113,115; RZH119..DX W(LSD); RZH109,119..STD W(LSD) |
41306-35010 |
US $86.31 |
||
|
41385
|
41385
41385-22020 Plate, clutch[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
41385-22020 |
from US $8.70 |
||
|
41387
|
41387
41387-35010
Retainer, Spring, Rh
[08.1989 - 08.1993] LH10#,11#,RZH10#,11# |
41387-35010 |
— | ||
|
41388
|
41388
41388-35010
Retainer, Spring, Lh
[08.1989 - 08.1993] LH10#,11#,RZH10#,11# |
41388-35010 |
— | ||
|
41991
|
41991
41991-22010 Caution Plate, Rear Differential (LSD)[08.1989 - 08.1993] LH10#,11#,RZH10#,11# |
41991-22010 |
US $1.79 |
||
|
41991
|
41991
41991-60010
Caution Plate, Rear Differential
[08.1993 - 01.1994] LH10#,11#,RZH10#,11# |
41991-60010 |
— | ||
| replacement | |||||
|
41991
|
41991
41991-22010 Caution Plate, Rear Differential (LSD)[08.1993 - 01.1994] LH10#,11#,RZH10#,11# |
41991-22010 |
US $1.79 |
||
|
42110
|
42110
42110-26280 Housing Assy, Rear AxleREAR AXLE [08.1989 - 08.1994] LH102,112,RZH102,103,112,113,115..LHD |
42110-26280 |
US $918.74 |
||
|
42110
|
42110
42110-26281 Housing Assy, Rear AxleREAR AXLE [08.1994 - 08.1995] LH102,112,RZH102,103,113..LHD |
42110-26281 |
US $923.10 |
||
| replacement | |||||
|
42110
|
42110
42110-26282 Housing Assy, Rear AxleREAR AXLE [08.1994 - 08.1995] LH102,112,RZH102,103,113..LHD |
42110-26282 |
from US $923.10 |
||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90341-18006 |
from US $3.23 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
12157-10010 |
from US $0.74 |
||
|
42110C
|
42110C
90930-03031 Plug, Breather(For Parking Cover)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90930-03031 |
from US $6.34 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90341-18057 |
from US $6.27 |
||
|
42139
|
42139
42139-35020
Deflector, Rear Axle Housing Oil
[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
42139-35020 |
— | ||
| replacement | |||||
|
42139
|
42139
42139-35021
Deflector, Rear Axle Housing Oil
[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
42139-35021 |
— | ||
|
42181
|
42181
42181-60020 Gasket, Rear Differential Carrier[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
42181-60020 |
from US $2.73 |
||
| replacement | |||||
|
42181
|
42181
42181-0K030 Gasket, Rear Differential Carrier[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
42181-0K030 |
from US $5.58 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.74 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
