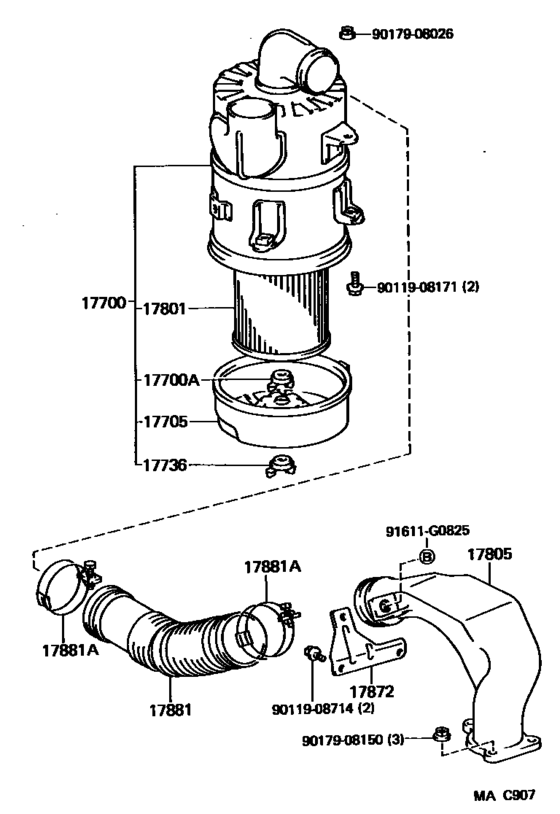

Air Cleaner ([08.1989 - ] (8908- )2L) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-54580 Cleaner Assy, Air[08.1989 - 10.1990] 2L..LH10#,11# |
17700-54580 |
US $432.43 |
||
| replacement | |||||
|
17700
|
17700
17700-54710 Cleaner Assy, Air[08.1989 - 10.1990] 2L..LH10#,11# |
17700-54710 |
US $559.10 |
||
|
17700
|
17700
17700-54710 Cleaner Assy, Air[10.1990 - 08.1995] 2L..LH10#,11# |
17700-54710 |
US $559.10 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
90175-08008 |
from US $2.52 |
||
|
17705
|
17705
17705-75020
Cap Sub-Assy, Air Cleaner
[08.1989 - 08.1995] 2L..LH10#,11# |
17705-75020 |
— | ||
|
17736
|
17736
90175-06003 Nut, Wing(For Air Cleaner)[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
90175-06003 |
from US $1.21 |
||
|
17801
|
17801
17801-54100 Element Sub-Assy, Air Cleaner Filter[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
17801-54100 |
from US $39.13 |
||
|
17805
|
17805
17805-54180
Connector Sub-Assy, Intake Air
[08.1989 - 08.1995] 2L..LH10#,11# |
17805-54180 |
— | ||
|
17872
|
17872
17872-54030 Bracket, Intake Air Connector[08.1989 - 08.1995] 2L..LH10#,11# |
17872-54030 |
US $13.45 |
||
|
17881
|
17881
17881-54420 Hose, Air Cleaner, No.1[08.1989 - 08.1995] 2L..LH10#,11# |
17881-54420 |
US $64.65 |
||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[01.1990 - 08.1995] 2L..LH10#,11# AIR CLEANER SIDE |
96111-10750 |
from US $3.40 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.1990 - 08.1993] 2L..LH10#,11# AIR CONNECTOR SIDE |
96111-10800 |
from US $2.87 |
||
|
91611G0825
|
91611G0825
91611-G0825
Bolt(for Clutch Release Cylinder Setting)
|
91611-G0825 |
— | ||
| replacement | |||||
|
91611G0825
|
91611G0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9011908714
|
9011908714
90119-08714
New Genuine Part
|
90119-08714 |
— | ||
| replacement | |||||
|
9011908714
|
9011908714
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
