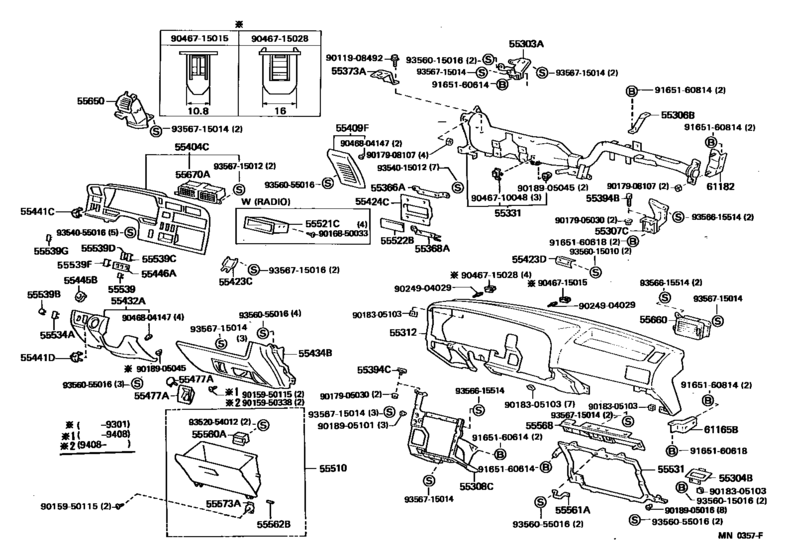

Instrument Panel & Glove Compartment ([08.1989 - ] (8908- )LHD) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55303A
|
55303A
55303-95J06 Stay Sub-Assy, Instrument PanelINSTRUMENT PANEL [08.1989 - 01.1992] LH10#,11#,RZH10#,11#..LHD |
55303-95J06 |
US $25.77 |
||
|
55304B
|
55304B
55304-95J00 Bracket Sub-Assy, Instrument Panel Bracket MountingINSTRUMENT PANEL BRACKET MOUNTING [08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55304-95J00 |
US $27.08 |
||
|
55306B
|
55306B
55306-95J04 Brace Sub-Assy, Instrument Panel To CowlINSTRUMENT PANEL TO COWL [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55306-95J04 |
US $18.64 |
||
|
55307C
|
55307C
55307-95J06 Brace Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [08.1989 - 01.1992] LH10#,11#,RZH10#,11#..LHD |
55307-95J06 |
US $23.59 |
||
|
55308C
|
55308C
55308-95J00
Bracket Sub-Assy, Instrument Panel, Center
[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55308-95J00 |
— | ||
| replacement | |||||
|
55308C
|
55308C
55308-26070 Bracket Sub-Assy, Instrument Panel, CenterINSTRUMENT PANEL, CENTER [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55308-26070 |
US $91.73 |
||
|
55312
|
55312
55312-95J08-03
Panel, Instrument, Lower
[08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,11#..LHD GRAY,TRIM1# |
55312-95J08-03 |
— | ||
| replacement | |||||
|
55312
|
55312
55312-95J08-B0
Panel, Instrument, Lower
[08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,11#..LHD GRAY,TRIM1# |
55312-95J08-B0 |
— | ||
|
55312
|
55312
55312-95J08-B0
Panel, Instrument, Lower
[08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55312-95J08-B0 |
— | ||
|
55331
|
55331
55330-95J00
Reinforcement, Instrument Panel
[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55330-95J00 |
— | ||
| replacements | |||||
|
55331
|
55331
55330-26220
Reinforcement, Instrument Panel
[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55330-26220 |
— | ||
|
55331
|
55331
90119-06779 BOLT W-WASHER[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
90119-06779 |
from US $0.68 |
||
|
55366A
|
55366A
55366-95J03 Bracket, Radio Mounting, No.1RADIO MOUNTING, NO.1 [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55366-95J03 |
US $5.39 |
||
|
55368A
|
55368A
55368-95J03 Bracket, Radio Mounting, No.2RADIO MOUNTING, NO.2 [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55368-95J03 |
US $5.39 |
||
|
55373A
|
55373A
55373-95J00 Bracket, Oil Reservoir TankOIL RESERVOIR TANK [08.1989 - 01.1992] LH10#,11#,RZH10#,11#..LHD |
55373-95J00 |
US $14.71 |
||
|
55394B
|
55394B
55394-95J00 Bolt, Instrument Panel[08.1989 - 01.1992] LH10#,11#,RZH10#,11# |
55394-95J00 |
US $1.75 |
||
|
55394C
|
55394C
55394-95J00 Bolt, Instrument Panel[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
55394-95J00 |
US $1.75 |
||
|
55404C
|
55404C
55404-26070
Panel Sub-Assy, Instrument Cluster Finish, No.2
[08.1989 - 08.1993] LH10#,11#,RZH10#,11#..LHD |
55404-26070 |
— | ||
|
55404C
|
55404C
55404-26080 Panel Sub-Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1989 - 01.1992] LH10#,11#,RZH10#,11#..LHD W(RADIO) |
55404-26080 |
US $243.15 |
||
|
55404C
|
55404C
55404-26190 Panel Sub-Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55404-26190 |
US $186.37 |
||
|
55404C
|
55404C
55404-26210 Panel Sub-Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1993 - 08.1995] RZH102;LH10#,11#,RZH103,109,11#..LHD..STD..EUR W(RADIO); LH102,112,RZH103,113..FRG,SDN;LH102,11#,RZH103,109,11#..(DX,GL)..EUR W(RADIO) |
55404-26210 |
US $186.37 |
||
|
55409F
|
55409F
55473-95J00-03
Panel Sub-Assy, Instrument Panel Speaker, No.2
[08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,11#..LHD GRAY,TRIM1# |
55473-95J00-03 |
— | ||
| replacement | |||||
|
55409F
|
55409F
55473-95J00-B0 Panel Sub-Assy, Instrument Panel Speaker, No.2INSTRUMENT PANEL SPEAKER, NO.2 [08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,11#..LHD GRAY,TRIM1# |
55473-95J00-B0 |
from US $47.03 |
||
|
55409F
|
55409F
55473-95J00-B0 Panel Sub-Assy, Instrument Panel Speaker, No.2INSTRUMENT PANEL SPEAKER, NO.2 [08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55473-95J00-B0 |
from US $47.03 |
||
|
55423C
|
55423C
55423-95J03 Cover, Clock Opening[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..DX,STD |
55423-95J03 |
US $10.19 |
||
|
55423D
|
55423D
55423-95J06 Plate, Meter Hood SetMETER HOOD SET [08.1989 - 01.1992] LH10#,11#,RZH10#,11#..LHD |
55423-95J06 |
US $9.32 |
||
|
55424C
|
55424C
55424-95J01 Panel, Radio Tuner FinishRADIO TUNER FINISH [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55424-95J01 |
US $23.88 |
||
|
55432A
|
55432A
55432-95J01-03
Panel, Instrument Panel Finish, Lower Rh
[08.1989 - 08.1991] LH10#,11#,RZH10#,11#..LHD W(FUEL LID OPENER),GRAY,TRIM1# |
55432-95J01-03 |
— | ||
| replacement | |||||
|
55432A
|
55432A
55432-95J01-B0
Panel, Instrument Panel Finish, Lower Rh
[08.1989 - 08.1991] LH10#,11#,RZH10#,11#..LHD W(FUEL LID OPENER),GRAY,TRIM1# |
55432-95J01-B0 |
— | ||
|
55432A
|
55432A
55432-95J01-B0
Panel, Instrument Panel Finish, Lower Rh
[08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55432-95J01-B0 |
— | ||
|
55432A
|
55432A
55432-95J04-03
Panel, Instrument Panel Finish, Lower Rh
[08.1989 - 08.1991] LH10#,11#,RZH10#,11#..LHD GRAY,TRIM1# |
55432-95J04-03 |
— | ||
|
55434B
|
55434B
55434-26040-B0
Panel, Instrument Panel Finish, Lower Center
[08.1994 - 08.1995] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55434-26040-B0 |
— | ||
| replacement | |||||
|
55434B
|
55434B
55434-26041-B0 Panel, Instrument Panel Finish, Lower CenterINSTRUMENT PANEL FINISH, LOWER CENTER [08.1994 - 08.1995] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55434-26041-B0 |
US $168.90 |
||
|
55434B
|
55434B
55434-95J00-03
Panel, Instrument Panel Finish, Lower Center
[08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,11#..LHD GRAY,TRIM1# |
55434-95J00-03 |
— | ||
| replacements | |||||
|
55434B
|
55434B
55434-26041-B0 Panel, Instrument Panel Finish, Lower CenterINSTRUMENT PANEL FINISH, LOWER CENTER [08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,11#..LHD GRAY,TRIM1# |
55434-26041-B0 |
US $168.90 |
||
|
55434B
|
55434B
90159-50338
New Genuine Part
[08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,11#..LHD GRAY,TRIM1# |
90159-50338 |
— | ||
|
55434B
|
55434B
55434-95J00-B0
Panel, Instrument Panel Finish, Lower Center
[08.1993 - 08.1994] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55434-95J00-B0 |
— | ||
| replacements | |||||
|
55434B
|
55434B
55434-26041-B0 Panel, Instrument Panel Finish, Lower CenterINSTRUMENT PANEL FINISH, LOWER CENTER [08.1993 - 08.1994] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55434-26041-B0 |
US $168.90 |
||
|
55434B
|
55434B
90159-50338
New Genuine Part
[08.1993 - 08.1994] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
90159-50338 |
— | ||
|
55441C
|
55441C
55441-20140-11
Box, Instrument Panel Coin
[08.1989 - 08.1993] LH10#,11#,RZH10#,11# BLACK,TRIM1# |
55441-20140-11 |
— | ||
| replacement | |||||
|
55441C
|
55441C
55441-20140-C0 Box, Instrument Panel Coin[08.1989 - 08.1993] LH10#,11#,RZH10#,11# BLACK,TRIM1# |
55441-20140-C0 |
US $16.84 |
||
|
55441C
|
55441C
55441-20140-C0 Box, Instrument Panel Coin[08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD..(DX,STD)..(EUR,FRG) BLACK,TRIM1# |
55441-20140-C0 |
US $16.84 |
||
|
55445B
|
55445B
55445-95J00 Plate, Instrument Panel Finish[08.1989 - 01.1992] LH10#,11#,RZH10#,11# |
55445-95J00 |
US $3.93 |
||
|
55446A
|
55446A
55446-95J00 Base, Switch Hole, No.1[08.1989 - 08.1993] LH112;LH10#,118,RZH10#,11#..LHD |
55446-95J00 |
US $13.83 |
||
|
55477A
|
55477A
55477-95J00 Bezel, Cigarette Lighter Hole[08.1989 - 08.1993] LH10#,11#,RZH10#,11# |
55477-95J00 |
US $11.79 |
||
|
55477A
|
55477A
55477-95J01 Bezel, Cigarette Lighter Hole[08.1989 - 05.1991] RZH102..STD;LH10#,11#,RZH103,109,11# W(ILLUMINATION); RZH102..DX NORWAY SPEC & W(ILLUMINATION) |
55477-95J01 |
US $11.53 |
||
|
55510
|
55510
55501-95J05-03
Door Assy, Glove Compartment
[08.1989 - 08.1993] LH10#,11#,RZH10#,11# GRAY,TRIM1# |
55501-95J05-03 |
— | ||
| replacement | |||||
|
55510
|
55510
55501-26010-B0 Door Assy, Glove Compartment[08.1989 - 08.1993] LH10#,11#,RZH10#,11# GRAY,TRIM1# |
55501-26010-B0 |
US $208.21 |
||
|
55510
|
55510
55501-95J05-B0
Door Assy, Glove Compartment
[08.1993 - 08.1995] LH10#,11#,RZH10#,11# BLUISH GRAY,TRIM1# |
55501-95J05-B0 |
— | ||
| replacement | |||||
|
55510
|
55510
55501-26010-B0 Door Assy, Glove Compartment[08.1993 - 08.1995] LH10#,11#,RZH10#,11# BLUISH GRAY,TRIM1# |
55501-26010-B0 |
US $208.21 |
||
|
55521C
|
55521C
55521-16030 Cover, Radio Tuner Opening[08.1989 - 10.1990] LH112..4FC;RZH112..LHD;RZH103,109..4D;LH102,112..SG..STD;LH118,RZH113,115,119..STD; LH102..LHD..SP;LH102,118,RZH113,119..DX;LH108,112,RZH102,109..LHD..(03S,09S)..5F W(RADIO) |
55521-16030 |
from US $23.15 |
||
|
55521C
|
55521C
55521-95J01 Cover, Stereo OpeningSTEREO OPENING [08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55521-95J01 |
US $14.56 |
||
|
55522B
|
55522B
55522-14070
Cover, Radio Tuner Opening
[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55522-14070 |
— | ||
|
55531
|
55531
55305-95J02 Panel, Glove CompartmentGLOVE COMPARTMENT [08.1989 - 08.1993] LH10#,11#,RZH10#,11#..LHD |
55305-95J02 |
US $77.17 |
||
|
55531
|
55531
55305-95J04 Panel, Glove CompartmentGLOVE COMPARTMENT [08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55305-95J04 |
US $77.17 |
||
|
55534A
|
55534A
55539-32010-11
Cover, Cooler Switch Hole
[08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,112,113,119..LHD BLACK,TRIM1# |
55539-32010-11 |
— | ||
| replacement | |||||
|
55534A
|
55534A
55539-32010-C0 Cover, Cooler Switch Hole[08.1989 - 08.1993] RZH103..4D;LH10#,11#,RZH102,109,112,113,119..LHD BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55534A
|
55534A
55539-32010-B0
Cover, Spare Switch Hole
[08.1993 - 01.1994] LH10#,11#,RZH10#,11#..LHD..(EUR,SDN) BLUISH GRAY,TRIM1# |
55539-32010-B0 |
— | ||
| replacement | |||||
|
55534A
|
55534A
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 01.1994] LH10#,11#,RZH10#,11#..LHD..(EUR,SDN) BLUISH GRAY,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55534A
|
55534A
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD..(EUR,SDN) BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539
|
55539
55539-32010-11
Cover, Cooler Switch Hole
[08.1991 - 05.1992] LH10#,11#;RZH103..5D BLACK,TRIM1#; RZH103..4D..STD DENMARK SPEC,BLACK,TRIM1# |
55539-32010-11 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[08.1991 - 05.1992] LH10#,11#;RZH103..5D BLACK,TRIM1#; RZH103..4D..STD DENMARK SPEC,BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539
|
55539
55539-32010-B0
Cover, Spare Switch Hole
[08.1993 - 01.1994] LH10#,11#,RZH10#,11# BLUISH GRAY,TRIM1# |
55539-32010-B0 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 01.1994] LH10#,11#,RZH10#,11# BLUISH GRAY,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 05.1994] LH10#,11#,RZH10#,11# BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539B
|
55539B
55539-95J02
Cover, Spare Switch Hole, No.2
[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
55539-95J02 |
— | ||
| replacement | |||||
|
55539B
|
55539B
55539-95J02-C0 Cover, Spare Switch Hole, No.2[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
55539-95J02-C0 |
US $3.35 |
||
|
55539C
|
55539C
55539-32010-11
Cover, Cooler Switch Hole
[08.1989 - 10.1990] LH10#,11#,RZH10#,11# BLACK,TRIM1# |
55539-32010-11 |
— | ||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole[08.1989 - 10.1990] LH10#,11#,RZH10#,11# BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539C
|
55539C
55539-32010-B0
Cover, Spare Switch Hole
[08.1993 - 01.1994] LH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG) BLUISH GRAY,TRIM1# |
55539-32010-B0 |
— | ||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 01.1994] LH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG) BLUISH GRAY,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 05.1994] LH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG) BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539D
|
55539D
55539-32010-11
Cover, Cooler Switch Hole
[08.1989 - 08.1993] LH10#,11#,RZH10#,11# BLACK,TRIM1# |
55539-32010-11 |
— | ||
| replacement | |||||
|
55539D
|
55539D
55539-32010-C0 Cover, Cooler Switch Hole[08.1989 - 08.1993] LH10#,11#,RZH10#,11# BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539D
|
55539D
55539-32010-B0
Cover, Spare Switch Hole
[08.1993 - 01.1994] RZH113..STD;LH10#,11#,RZH103,109,119..03S,06S BLUISH GRAY,TRIM1# |
55539-32010-B0 |
— | ||
| replacement | |||||
|
55539D
|
55539D
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 01.1994] RZH113..STD;LH10#,11#,RZH103,109,119..03S,06S BLUISH GRAY,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539D
|
55539D
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 05.1994] RZH113..STD;LH10#,11#,RZH103,109,119..03S,06S BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55560A
|
55560A
55560-26010-B0 Lock Assy, Glove Compartment Door[10.1994 - 08.1995] LH10#,11#,RZH10#,11# BLUISH GRAY,TRIM1# |
55560-26010-B0 |
US $29.99 |
||
|
55560A
|
55560A
55560-95J00-03
Lock Assy, Glove Compartment Door
[08.1989 - 08.1993] LH10#,11#,RZH10#,11# GRAY,TRIM1# |
55560-95J00-03 |
— | ||
| replacement | |||||
|
55560A
|
55560A
55560-26010-B0 Lock Assy, Glove Compartment Door[08.1989 - 08.1993] LH10#,11#,RZH10#,11# GRAY,TRIM1# |
55560-26010-B0 |
US $29.99 |
||
|
55560A
|
55560A
55560-95J00-B0
Lock Assy, Glove Compartment Door
[08.1993 - 10.1994] LH10#,11#,RZH10#,11# BLUISH GRAY,TRIM1# |
55560-95J00-B0 |
— | ||
| replacement | |||||
|
55560A
|
55560A
55560-26010-B0 Lock Assy, Glove Compartment Door[08.1993 - 10.1994] LH10#,11#,RZH10#,11# BLUISH GRAY,TRIM1# |
55560-26010-B0 |
US $29.99 |
||
|
55561A
|
55561A
55561-95J01 Striker, Glove Compartment Door Lock[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
55561-95J01 |
US $7.86 |
||
|
55562B
|
55562B
55562-95J00 Pin, Glove Compartment Door Lock[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
55562-95J00 |
US $2.91 |
||
|
55568
|
55568
55568-95J00-03
Plate, Glove Compartment Door Pad
[08.1989 - 08.1993] LH10#,11#,RZH10#,11#..LHD GRAY,TRIM1# |
55568-95J00-03 |
— | ||
| replacement | |||||
|
55568
|
55568
55568-95J00-C0 Plate, Glove Compartment Door PadGLOVE COMPARTMENT DOOR PAD [08.1989 - 08.1993] LH10#,11#,RZH10#,11#..LHD GRAY,TRIM1# |
55568-95J00-C0 |
US $41.79 |
||
|
55568
|
55568
55568-95J00-C0 Plate, Glove Compartment Door PadGLOVE COMPARTMENT DOOR PAD [08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD BLACK,TRIM1# |
55568-95J00-C0 |
US $41.79 |
||
|
55573A
|
55573A
55573-95J00 Hinge, Glove Compartment Door[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
55573-95J00 |
US $5.24 |
||
|
55650
|
55650
55650-95J06 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55650-95J06 |
US $70.76 |
||
|
55660
|
55660
55660-95J12-03
Register Assy, Instrument Panel, No.2
[08.1989 - 08.1993] LH10#,11#,RZH10#,11#..LHD GRAY,TRIM1# |
55660-95J12-03 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-95J12-B0
Register Assy, Instrument Panel, No.2
[08.1989 - 08.1993] LH10#,11#,RZH10#,11#..LHD GRAY,TRIM1# |
55660-95J12-B0 |
— | ||
|
55660
|
55660
55660-95J12-B0
Register Assy, Instrument Panel, No.2
[08.1993 - 08.1995] LH10#,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
55660-95J12-B0 |
— | ||
|
55670A
|
55670A
55670-95J02
Register Assy, Instrument Panel, Center
[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
55670-95J02 |
— | ||
|
61165B
|
61165B
61165-95J00 Bracket, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
61165-95J00 |
US $5.10 |
||
|
61182
|
61182
61182-95J02 Seal, Cowl Panel, OuterCOWL PANEL, OUTER [08.1989 - 08.1995] LH10#,11#,RZH10#,11#..LHD |
61182-95J02 |
US $11.07 |
||
|
9011908492
|
9011908492
90119-08492
New Genuine Part
|
90119-08492 |
— | ||
|
9015950115
|
9015950115
90159-50115 New Genuine Part |
90159-50115 |
US $3.06 |
||
|
9015950338
|
9015950338
90159-50338
New Genuine Part
|
90159-50338 |
— | ||
|
9016850033
|
9016850033
90168-50033 New Genuine Part |
90168-50033 |
US $1.60 |
||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $2.15 |
||
|
9017908107
|
9017908107
90179-08107
New Genuine Part
|
90179-08107 |
— | ||
| replacement | |||||
|
9017908107
|
9017908107
90179-08179 New Genuine Part |
90179-08179 |
US $3.58 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9018905016
|
9018905016
90189-05016 Grommet, Screw |
90189-05016 |
from US $3.76 |
||
|
9018905045
|
9018905045
90189-05045 New Genuine Part |
90189-05045 |
US $1.05 |
||
|
9018905101
|
9018905101
90189-05101 New Genuine Part |
90189-05101 |
US $1.75 |
||
|
9024904029
|
9024904029
90249-04029 Pin, Instrument Panel, No.1 |
90249-04029 |
US $2.89 |
||
|
9046710048
|
9046710048
90467-10048 New Genuine Part |
90467-10048 |
US $0.70 |
||
|
9046715015
|
9046715015
90467-15015 CLIP |
90467-15015 |
from US $1.40 |
||
|
9046715028
|
9046715028
90467-15028
New Genuine Part
|
90467-15028 |
— | ||
|
9046804147
|
9046804147
90468-04147 Clip(For Back Door Trim Board) |
90468-04147 |
US $1.25 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9352054012
|
9352054012
93520-54012 New Genuine Part |
93520-54012 |
from US $0.64 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.25 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
|
9356015016
|
9356015016
93560-15016 New Genuine Part |
93560-15016 |
US $1.25 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
||
|
9356615514
|
9356615514
93566-15514
Direct
|
93566-15514 |
— | ||
| replacement | |||||
|
9356615514
|
9356615514
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356715012
|
9356715012
93567-15012
New Genuine Part
|
93567-15012 |
— | ||
| replacement | |||||
|
9356715012
|
9356715012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356715014
|
9356715014
93567-15014 Direct |
93567-15014 |
US $1.60 |
||
| replacement | |||||
|
9356715014
|
9356715014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356715016
|
9356715016
93567-15016
New Genuine Part
|
93567-15016 |
— | ||
| replacement | |||||
|
9356715016
|
9356715016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
