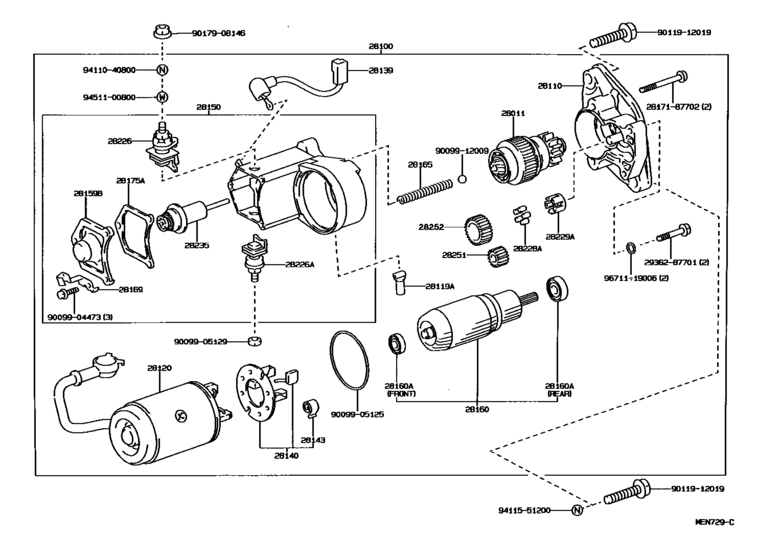

Starter ([09.1989 - 08.1993] 12V 2.0KW (8908-8909)2L..5F ; (8909-9308)2L..LH102,112..5F) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28011-54010 |
from US $189.79 |
||
|
28011
|
28011
28011-54070 Clutch Sub-Assy, Starter[08.1989 - 08.1993] 2L..LH10#,11#..5F |
28011-54070 |
from US $240.53 |
||
|
28011
|
28011
28011-54380 Clutch Sub-Assy, Starter[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28011-54380 |
US $363.42 |
||
|
28100
|
28100
28100-54070 Starter Assy[08.1989 - 09.1989] 2L..LH10#,11#..5F 12V 2.0KW |
28100-54070 |
US $1,805.44 |
||
| replacement | |||||
|
28100
|
28100
28100-54180 Starter Assy[08.1989 - 09.1989] 2L..LH10#,11#..5F 12V 2.0KW |
28100-54180 |
US $1,805.44 |
||
|
28100
|
28100
28100-54170 Starter Assy[05.1992 - 08.1993] 2L..LH102,112..5F 12V 2.0KW |
28100-54170 |
US $1,820 |
||
| replacement | |||||
|
28100
|
28100
28100-54380 Starter Assy[05.1992 - 08.1993] 2L..LH102,112..5F 12V 2.0KW |
28100-54380 |
from US $819.51 |
||
|
28100
|
28100
28100-54220
Starter Assy
[08.1989 - 05.1992] 2L..LH112..4FC 12V 2.7KW; 2L..LH10#,11#..5F 12V 2.7KW,COLD SPEC |
28100-54220 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54210 Starter Assy[08.1989 - 05.1992] 2L..LH112..4FC 12V 2.7KW; 2L..LH10#,11#..5F 12V 2.7KW,COLD SPEC |
28100-54210 |
US $2,169.44 |
||
|
28100
|
28100
28100-54250
Starter Assy
[05.1992 - 08.1993] 2L..LH112..4FC 12V 2.7KW; 2L..LH10#,11#..5F 12V 2.7KW,COLD SPEC |
28100-54250 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54430
Starter Assy
[05.1992 - 08.1993] 2L..LH112..4FC 12V 2.7KW; 2L..LH10#,11#..5F 12V 2.7KW,COLD SPEC |
28100-54430 |
— | ||
|
28100
|
28100
28100-54320
Starter Assy
[08.1993 - 08.1995] 2L..LH102..GL;2L..LH112..4FC 12V 2.7KW; 2L..LH10#,11#..5F..(DX,STD) 12V 2.7KW,COLD SPEC |
28100-54320 |
— | ||
|
28100
|
28100
28100-54380 Starter Assy[08.1993 - 08.1995] 2L..LH102,112..5F..(DX,STD) 12V 2.0KW |
28100-54380 |
from US $819.51 |
||
|
28110
|
28110
28110-54380 Housing Assy, Starter Drive[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28110-54380 |
US $90.27 |
||
|
28110
|
28110
28115-54011
Housing Assy, Starter Drive
[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28115-54011 |
— | ||
|
28110
|
28110
28115-54070
Housing Assy, Starter Drive
[08.1989 - 08.1993] 2L..LH10#,11#..5F |
28115-54070 |
— | ||
|
28119A
|
28119A
28199-46080 Cover, Starter End Frame[08.1990 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28199-46080 |
from US $2.97 |
||
|
28119A
|
28119A
28199-74110 Cover, Starter End Frame[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28199-74110 |
US $2.89 |
||
|
28119A
|
28119A
28199-77090
Cover, Starter End Frame
[08.1989 - 08.1990] 2L..LH10#,11# |
28199-77090 |
— | ||
|
28120
|
28120
28120-54070
Yoke Assy, Starter
[08.1989 - 09.1989] 2L..LH10#,11#..5F |
28120-54070 |
— | ||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[08.1993 - 08.1995] 2L..LH102,112..5F..(DX,STD) |
28120-54380 |
US $182.40 |
||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28120-56081 |
— | ||
|
28139
|
28139
28139-54070
Wire, Lead, No.1(For Starter)
[08.1989 - 05.1992] 2L..LH10#,11#..5F |
28139-54070 |
— | ||
|
28139
|
28139
28139-54250
Wire, Lead, No.1(For Starter)
[08.1993 - 11.1994] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28139-54250 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56290
Wire, Lead, No.1(For Starter)
[08.1993 - 11.1994] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28139-56290 |
— | ||
|
28139
|
28139
28139-54251
Wire, Lead, No.1(For Starter)
[11.1994 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28139-54251 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56290
Wire, Lead, No.1(For Starter)
[11.1994 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28139-56290 |
— | ||
|
28139
|
28139
28139-54380
Wire, Lead, No.1(For Starter)
[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28139-54380 |
— | ||
|
28139
|
28139
28139-77110
Wire, Lead, No.1(For Starter)
[08.1989 - 08.1993] 2L..LH112..4FC; 2L..LH10#,11#..5F COLD SPEC |
28139-77110 |
— | ||
|
28140
|
28140
28140-54070
Holder Assy, Starter Brush
[08.1989 - 08.1993] 2L..LH10#,11#..5F |
28140-54070 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28140-77090 |
from US $55.39 |
||
|
28143
|
28143
28143-54380
Spring, Starter Brush
[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28143-54380 |
— | ||
|
28143
|
28143
90099-17115
Spring, Starter Brush
[08.1989 - 08.1993] 2L..LH10#,11#..5F |
90099-17115 |
— | ||
|
28150
|
28150
28150-54070
Switch Assy, Magnet Starter
[08.1989 - 05.1992] 2L..LH10#,11#..5F |
28150-54070 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-54110 Switch Assy, Magnet Starter[08.1989 - 05.1992] 2L..LH10#,11#..5F |
28150-54110 |
US $352.35 |
||
|
28150
|
28150
28150-54220 Switch Assy, Magnet Starter[08.1989 - 08.1993] 2L..LH112..4FC; 2L..LH10#,11#..5F COLD SPEC |
28150-54220 |
US $336.34 |
||
| replacement | |||||
|
28150
|
28150
28150-54210 Switch Assy, Magnet Starter[08.1989 - 08.1993] 2L..LH112..4FC; 2L..LH10#,11#..5F COLD SPEC |
28150-54210 |
US $334.88 |
||
|
28150
|
28150
28150-54320 Switch Assy, Magnet Starter[08.1993 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28150-54320 |
US $336.34 |
||
|
28150
|
28150
28150-54380 Switch Assy, Magnet Starter[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28150-54380 |
from US $213.88 |
||
|
28159B
|
28159B
28159-54170
Cover, Magnet Switch
[10.1990 - 08.1993] 2L..LH10#,11#..5F |
28159-54170 |
— | ||
|
28159B
|
28159B
28159-54380
Cover, Magnet Switch
[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28159-54380 |
— | ||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[10.1990 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28159-56310 |
— | ||
|
28160
|
28160
28160-54071
Armature Assy, Starter
[08.1989 - 08.1993] 2L..LH10#,11#..5F |
28160-54071 |
— | ||
|
28160
|
28160
28160-54140 Armature Assy, Starter[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28160-54140 |
from US $185.07 |
||
|
28160
|
28160
28160-54380
Armature Assy, Starter
[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28160-54380 |
— | ||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[08.1989 - 08.1993] 2L..LH10#,11#..5F FRONT |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC FRONT; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC,FRONT |
90099-10107 |
from US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC REAR; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC,REAR |
90099-10119 |
from US $10.18 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[08.1989 - 08.1993] 2L..LH10#,11#..5F REAR |
90099-10131 |
US $7.43 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[08.1993 - 08.1995] 2RZE..RZH103..GL;2RZE..RZH113..SDN;2L..LH10#,11#..5F..(DX,STD) REAR |
90099-10197 |
from US $6.64 |
||
|
28160A
|
28160A
90099-10208 Bearing, Starter Armature[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) FRONT |
90099-10208 |
US $16.44 |
||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[08.1989 - 08.1993] 1RZ,2RZE..RZH112,113;2L,1RZ,2RZE..LH10#,11#,RZH10#,115,119..5F |
28165-26040 |
— | ||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[08.1993 - 08.1995] 2RZE..RZH103..GL;2RZE..RZH113..SDN;2L..LH10#,11#..5F..(DX,STD) |
28165-76070 |
— | ||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28165-77090 |
— | ||
|
28169
|
28169
28169-54070
Clamp, Starter Motor Lead Wire
[10.1990 - 08.1993] 2L..LH10#,11#..5F |
28169-54070 |
— | ||
|
28169
|
28169
28169-54380 Clamp, Starter Motor Lead Wire[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28169-54380 |
US $1.93 |
||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[10.1990 - 08.1993] 1RZ,2RZE..RZH112,113;2L,1RZ,2RZE..LH10#,11#,RZH10#,115,119..5F |
28175-10040 |
— | ||
|
28175A
|
28175A
28175-54380 Gasket, Magnet Switch Cover[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28175-54380 |
US $1.67 |
||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[10.1990 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28175-56310 |
from US $1.92 |
||
|
28226
|
28226
28226-54080
Starter Kit, Battery Terminal
[08.1989 - 01.1991] 2L..LH10#,11#..5F |
28226-54080 |
— | ||
|
28226
|
28226
28226-54250
Starter Kit, Battery Terminal
[08.1989 - 08.1993] 2L..LH112..4FC; 2L..LH10#,11#..5F COLD SPEC |
28226-54250 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54300 Starter Kit, Battery Terminal[08.1989 - 08.1993] 2L..LH112..4FC; 2L..LH10#,11#..5F COLD SPEC |
28226-54300 |
from US $8.68 |
||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[08.1993 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28226-54320 |
from US $10.28 |
||
|
28226
|
28226
28226-54350
Starter Kit, Battery Terminal
[01.1991 - 08.1993] 2L..LH10#,11#..5F |
28226-54350 |
— | ||
|
28226A
|
28226A
28226-54100
Starter Kit, Motor Terminal
[09.1989 - 01.1991] 2L..LH10#,11#..5F |
28226-54100 |
— | ||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28226-54220 |
from US $12.40 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[01.1991 - 08.1995] 1RZ,2RZE..RZH112,113..EUR;2L,1RZ,2RZE..LH10#,11#,RZH10#,115,119..5F..(DX,STD) |
28226-72010 |
from US $10.22 |
||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[08.1989 - 08.1995] 1RZ,2RZE..RZH103,112,113;2L,1RZ,2RZE..LH10#,11#,RZH102,109,115,119..5F..(DX,STD) |
28228-26040 |
— | ||
|
28228A
|
28228A
28228-56080
Roller, Starter Idle Gear Clutch
[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28228-56080 |
— | ||
|
28229A
|
28229A
28229-26040
Retainer, Starter Idle Gear
[08.1989 - 08.1993] 1RZ,2RZE..RZH112,113;2L,1RZ,2RZE..LH10#,11#,RZH10#,115,119..5F |
28229-26040 |
— | ||
|
28229A
|
28229A
28229-56080
Retainer, Starter Idle Gear
[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28229-56080 |
— | ||
|
28229A
|
28229A
28229-74070 Retainer, Starter Idle Gear[08.1993 - 08.1995] 2RZE..RZH103..GL;2RZE..RZH113..SDN;2L..LH10#,11#..5F..(DX,STD) |
28229-74070 |
US $1.44 |
||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[10.1990 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28235-17030 |
from US $25.68 |
||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[08.1989 - 09.1989] 2L..LH10#,11#..5F |
28235-35080 |
from US $23.41 |
||
|
28235
|
28235
28235-54380 Plunger, Magnet Switch[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28235-54380 |
from US $20.36 |
||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[08.1989 - 08.1993] 2L..LH10#,11#..5F |
28251-54070 |
— | ||
|
28251
|
28251
28254-54380
Pinion, Starter Drive
[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28254-54380 |
— | ||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[08.1989 - 08.1993] 2L..LH10#,11#..5F |
28254-54070 |
— | ||
|
28252
|
28252
28254-64130
Pinion, Starter Drive
[08.1993 - 08.1995] 2L..LH10#,11#..5F..(DX,STD) |
28254-64130 |
— | ||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[08.1989 - 08.1995] 2L..LH102..GL;2L..LH112..4FC; 2L..LH10#,11#..5F..(DX,STD) COLD SPEC |
28254-77090 |
— | ||
|
2817187702
|
2817187702
28171-87702
Bolt, Starter
|
28171-87702 |
— | ||
|
2936287701
|
2936287701
29362-87701
Bolt, Starter
|
29362-87701 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009905125
|
9009905125
90099-05125
New Genuine Part
|
90099-05125 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011912019
|
9011912019
90119-12019 Bolt(For Transaxle & Engine Setting) |
90119-12019 |
US $2.80 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9671119006
|
9671119006
96711-19006 Packing(For Radiator Drain Cock) |
96711-19006 |
US $3.23 |
||
