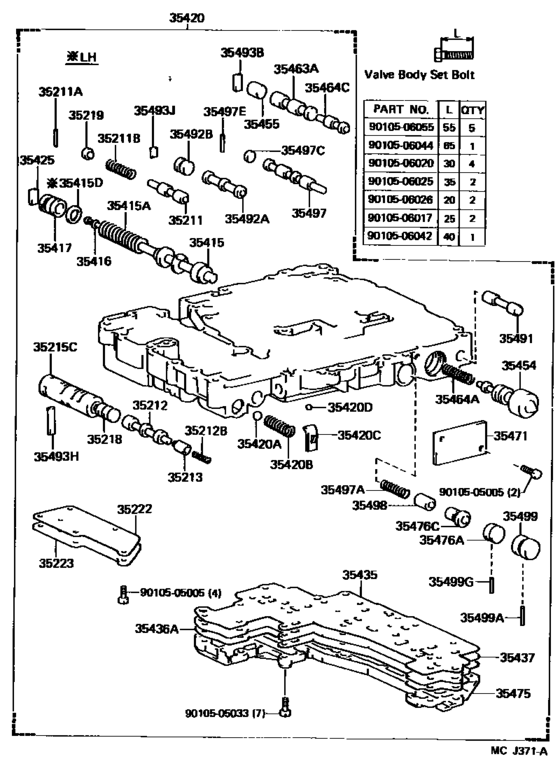

Valve Body & Oil Strainer (Atm) ([08.1989 - ] A45DL (8908- )) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010505033
|
9010505033
90105-05033
New Genuine Part
|
90105-05033 |
— | ||
|
9010506017
|
9010506017
90105-06017 Bolt(for Cylinder Head Cover) |
90105-06017 |
US $1.89 |
||
| replacement | |||||
|
9010506017
|
9010506017
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
9010506020
|
9010506020
90105-06020 New Genuine Part |
90105-06020 |
US $2.62 |
||
| replacement | |||||
|
9010506020
|
9010506020
91511-C0630 New Genuine Part |
91511-C0630 |
US $0.52 |
||
|
9010506025
|
9010506025
90105-06025 New Genuine Part |
90105-06025 |
US $1.75 |
||
| replacement | |||||
|
9010506025
|
9010506025
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
9010506026
|
9010506026
90105-06026 Bolt (For Transaxle Case Upper Cover) |
90105-06026 |
US $1.60 |
||
| replacement | |||||
|
9010506026
|
9010506026
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010506042
|
9010506042
90105-06042
New Genuine Part
|
90105-06042 |
— | ||
|
9010506044
|
9010506044
90105-06044 New Genuine Part |
90105-06044 |
US $1.16 |
||
|
9010506055
|
9010506055
90105-06055 New Genuine Part |
90105-06055 |
US $1.75 |
||
