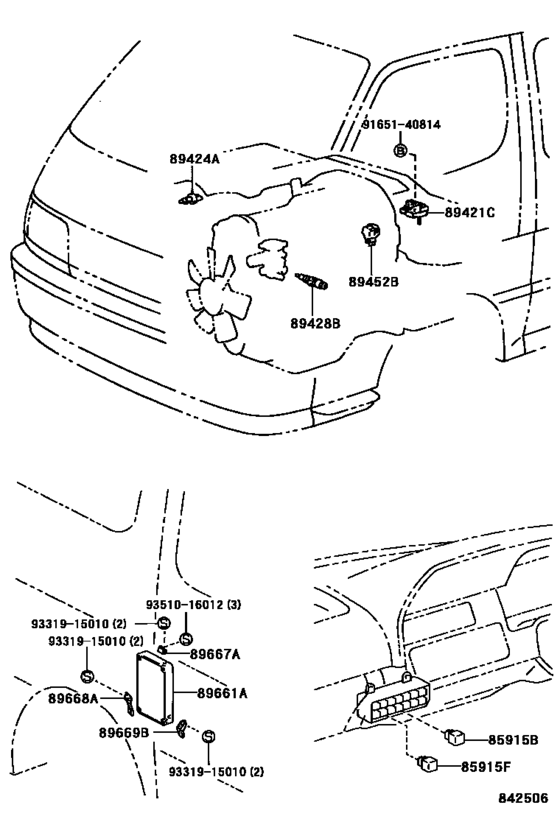

Electronic Controled Diesel (Ecd) ([10.1990 - 08.1993] (9010-9308)TDE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915B
|
85915B
85915-30050 Relay, Main[10.1990 - 08.1993] LH100,120..TDE |
85915-30050 |
from US $71.57 |
||
|
85915F
|
85915F
85915-30050 Relay, Main[10.1990 - 08.1993] LH100,120..TDE |
85915-30050 |
from US $71.57 |
||
|
89421C
|
89421C
89420-26040 Sensor, Turbo Pressure (For Diesel Turbo)[10.1990 - 08.1993] LH100,120..TDE |
89420-26040 |
US $126.67 |
||
|
89424A
|
89424A
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[10.1990 - 07.1999] KZH10#,11#,12#,13#,LH100,120..TDE |
89424-12010 |
from US $57.97 |
||
|
89428B
|
89428B
89428-30090
Switch, Temperature Detect, No.2
[10.1990 - 08.1993] LH100,120..TDE |
89428-30090 |
— | ||
|
89452B
|
89452B
89452-12040 Sensor, Throttle Position (For E.f.i.)[10.1990 - 08.1993] LH100,120..TDE |
89452-12040 |
from US $129.99 |
||
|
89661A
|
89661A
89661-26150 Computer, Engine Control[05.1992 - 08.1993] LH100,120..4FC |
89661-26150 |
US $1,557.92 |
||
|
89667A
|
89667A
89667-26010 Bracket, Emission Control Computer, No.1[10.1990 - 08.1996] LH100..TDE;KZH100,11#,12#,13#,LH120..HRF,SRF |
89667-26010 |
US $3.64 |
||
|
89668A
|
89668A
89668-26010 Bracket, Emission Control Computer, No.2[10.1990 - 08.1996] LH100..TDE;KZH100,11#,12#,13#,LH120..HRF,SRF |
89668-26010 |
US $5.24 |
||
|
89669B
|
89669B
89669-26010 Bracket, Emission Control Computer[10.1990 - 08.1996] LH100..TDE;KZH100,11#,12#,13#,LH120..HRF,SRF |
89669-26010 |
US $5.24 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9351016012
|
9351016012
93510-16012 Screw, Pillar Joint Setting |
93510-16012 |
US $2.33 |
||
