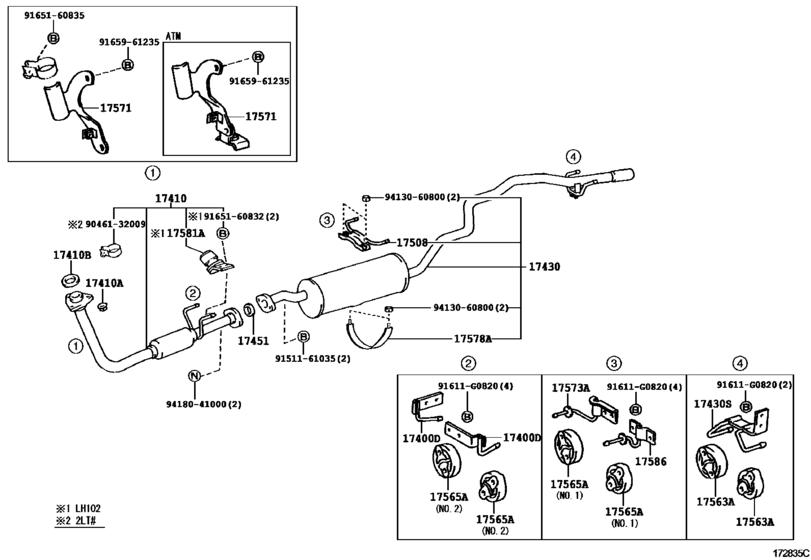

Exhaust Pipe ([08.1989 - 08.1993] (8908-9308)2L,2LT#) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400D
|
17400D
17587-75011 Bracket, Catalytic Converter Support[11.1991 - 08.1995] 1KZTE..KZH106..5F;2LTE,3L,1RZE,2RZE..LH100,107,RZH100,101;1KZTE,2L#,3L,1RZ#..KZH10 0,11#,12#,LH100,102,103,109,11#,12#,140,RZH102,11#,12#..03S,05S,06S,08S,09S,10S,15 S 右側 |
17587-75011 |
US $24.32 |
||
|
17400D
|
17400D
17588-75011 Bracket, Catalytic Converter Support[08.1989 - 08.1995] 2LT#,3L,1RZE,2RZE..LH100,107,RZH100,101;1KZTE,2L,2LT,3L,1RZ#..KZH106,11#,126,LH100 ,109,110,115,117,120,125,140,RZH110,12#..5F;1KZTE,2L,2LTE,3L,1RZ#..KZH100,120,LH10 2,103,113,119,120,123,129,RZH102,112..(V1,WG)..(03S,05S,06S,08S,09S,1 |
17588-75011 |
US $26.21 |
||
|
17410
|
17410
17401-54080 Pipe Assy, Exhaust, Front[08.1989 - 08.1993] 2LT#..LH100,120 |
17401-54080 |
US $224.22 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZ H10#,11#,12#,133 |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZ H10#,11#,12#,133 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06042 Gasket, Exhaust Pipe[08.1989 - 06.1995] 2L,2LT#,3L..LH10#,11#,12#,140 |
90917-06042 |
from US $4.62 |
||
|
17430
|
17430
17430-5B320 Pipe Assy, Exhaust, Tail[08.1989 - 08.1993] 2LT#..LH120 |
17430-5B320 |
US $531.44 |
||
| replacement | |||||
|
17430
|
17430
17430-5B270 Pipe Assy, Exhaust, Tail[08.1989 - 08.1993] 2LT#..LH120 |
17430-5B270 |
US $522.70 |
||
|
17430S
|
17430S
17574-75010 Bracket, Exhaust Tail Pipe (For Rear)[08.1989 - 07.1999] 2L,2LT#,3L,5L,1RZ#,2RZE..LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1, WG |
17574-75010 |
US $31.16 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[04.1991 - 07.1999] 1RZ#..RZH102,112,122,124 フロント; 2L#,3L,5L,1RZ#,2RZE..LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 リヤ |
90917-06045 |
from US $1.60 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[04.1991 - 07.1999] 1RZ#..RZH102,112,122,124 フロント; 2L#,3L,5L,1RZ#,2RZE..LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 リヤ |
90080-43028 |
US $26.18 |
||
|
17508
|
17508
17508-75020 Support Sub-Assy, Exhaust Pipe, No.3[08.1989 - 08.1993] 2LT#..LH120; 2L,3L..LH100,107..5F; 2LT#..LH100 |
17508-75020 |
US $50.90 |
||
|
17563A
|
17563A
17565-63020 Ring, Catalytic Converter[07.1991 - 07.1999] 2L#,3L,5L,1RZ#,2RZE..LH10#,113,115,117,119,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
17565-63020 |
from US $15.05 |
||
|
17565A
|
17565A
17565-63020 Ring, Catalytic Converter[07.1991 - 08.1998] 2L#,3L,1RZ#,2RZE..LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4F C ＮＯ．１ ＆ ＮＯ．２ |
17565-63020 |
from US $15.05 |
||
|
17571
|
17571
17506-54170 Bracket, Exhaust Pipe Support, No.1[08.1989 - 08.1993] 2LT#..LH100,120..4FC |
17506-54170 |
US $35.38 |
||
|
17573A
|
17573A
17573-75020 Bracket, Exhaust Pipe Support, No.3[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH11#,12#,13#,LH11#,12#,17#,18#,RZH11#,12#,133..CO M,V1,WG |
17573-75020 |
US $20.68 |
||
| replacement | |||||
|
17573A
|
17573A
17573-75021 Bracket, Exhaust Pipe Support, No.3[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH11#,12#,13#,LH11#,12#,17#,18#,RZH11#,12#,133..CO M,V1,WG |
17573-75021 |
US $20.53 |
||
|
17578A
|
17578A
17578-75040 Clamp, Muffler[08.1989 - 08.1993] 3L..LH107..4FC; 2LT#..LH120; 2L,3L..LH100,107..5F; 2LT#..LH100 |
17578-75040 |
US $80.14 |
||
|
17586
|
17586
17586-75010 Bracket, Heat Insulator, No.1[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZ H10#,11#,12#,133..COM,V1,WG |
17586-75010 |
US $26.21 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9046132009
|
9046132009
90461-32009 CLAMP |
90461-32009 |
US $8.88 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.94 |
||
|
9165160832
|
9165160832
91651-60832 New Genuine Part |
91651-60832 |
US $1.46 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9165961235
|
9165961235
91659-61235 New Genuine Part |
91659-61235 |
US $2.62 |
||
| replacement | |||||
|
9165961235
|
9165961235
91512-61235 BOLT FLANGE |
91512-61235 |
US $2.48 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.31 |
||
