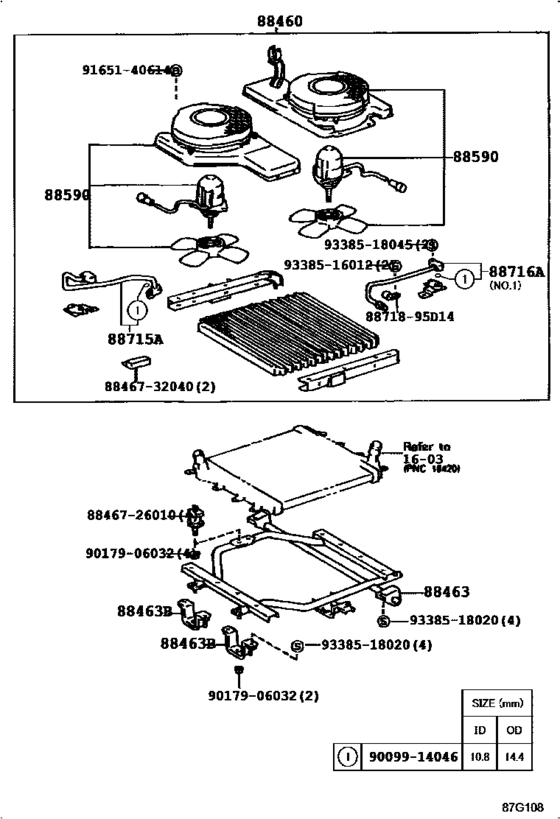

Heating & Air Conditioning - Cooler Piping ([08.1989 - 08.1993] CONDENSER--DUAL(DEALER OPT) (8908-9308)LH100,120..4FC) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-95J17 Condenser Assy, Cooler[08.1989 - 08.1993] LH100,120..4FC |
88460-95J17 |
US $1,153.15 |
||
|
88463
|
88463
88463-95J21
Bracket, Cooler Condenser, No.1
[08.1989 - 08.1993] LH100,120..4FC |
88463-95J21 |
— | ||
|
88463B
|
88463B
88463-95J24
Bracket, Cooler Condenser, No.3
[08.1989 - 08.1993] LH100,120..4FC |
88463-95J24 |
— | ||
|
88590
|
88590
88590-26030
Blower Assy, W/shroud
[08.1990 - 08.1993] LH100..CTM..TDE;LH100,120..(HRF,MRF)..4FC 右側 |
88590-26030 |
— | ||
|
88590
|
88590
88590-26070
Blower Assy, W/shroud
[10.1990 - 08.1993] LH100,120..4FC 左側 |
88590-26070 |
— | ||
|
88715A
|
88715A
88715-26070 Pipe, Cooler Refrigerant Discharge, A[08.1990 - 08.1993] LH100,120..(HRF,MRF)..4FC |
88715-26070 |
US $87.36 |
||
|
88716A
|
88716A
88716-26060
Pipe, Cooler Refrigerant Liquid, A
[02.1991 - 07.1992] LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,14 0,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100, 110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
88716-26060 |
— | ||
|
88716A
|
88716A
88716-95N16 Pipe, Cooler Refrigerant Liquid, A[08.1989 - 08.1993] LH100,120..4FC ＮＯ．１ |
88716-95N16 |
US $45.43 |
||
|
8871895D14
|
8871895D14
88718-95D14
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95D14 |
— | ||
|
8846726010
|
8846726010
88467-26010
Cushion, Cooler Condenser, No.1
|
88467-26010 |
— | ||
|
8846732040
|
8846732040
88467-32040
Cushion, Cooler Condenser, No.1
|
88467-32040 |
— | ||
|
9009914046
|
9009914046
90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose) |
90099-14046 |
from US $0.55 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $0.96 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
|
9338518045
|
9338518045
93385-18045
New Genuine Part
|
93385-18045 |
— | ||
