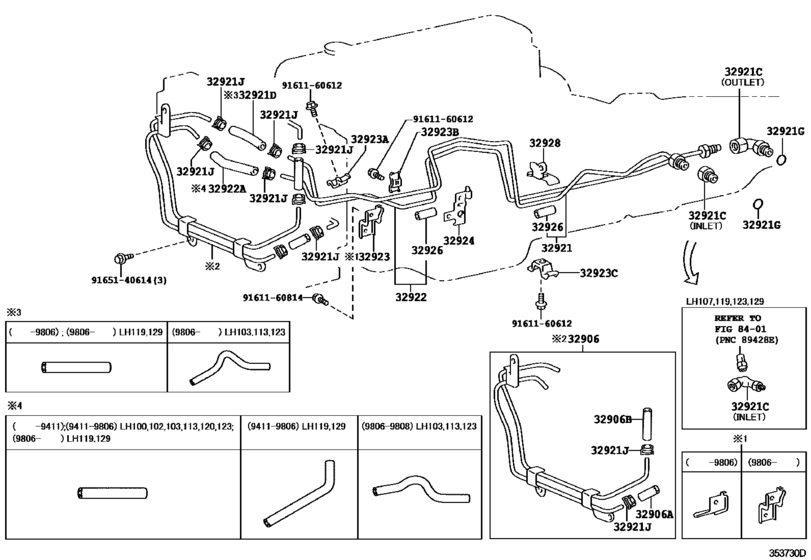

Oil Cooler & Tube (Atm) ([08.1989 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9808)LH100,102,103,107,113,119,120,123,129 ..4FC) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32906
|
32906
32906-26110 Tube Sub-Assy, Oil Cooler[10.1989 - 08.1993] LH107..08S..4FC;LH100,102,113,119,120,123,RZH10#,112..4FC |
32906-26110 |
US $99.01 |
||
| replacement | |||||
|
32906
|
32906
32906-26150
Tube Sub-Assy, Oil Cooler
[10.1989 - 08.1993] LH107..08S..4FC;LH100,102,113,119,120,123,RZH10#,112..4FC |
32906-26150 |
— | ||
|
32906A
|
32906A
90445-17093
Hose, Oil Cooler Tube(For Inlet)
[08.1989 - 01.1998] LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
90445-17093 |
— | ||
|
32906B
|
32906B
90445-17100 Hose, Oil Cooler Tube[08.1989 - 08.1998] LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
90445-17100 |
from US $10.88 |
||
|
32921
|
32921
32921-26110 Tube, Oil Cooler Inlet, No.1[10.1990 - 08.1993] LH100,120..4FC |
32921-26110 |
US $28.25 |
||
|
32921C
|
32921C
90404-16029 Union(For Oil Cooler Tube)[10.1990 - 08.1993] LH100,120..4FC インレット |
90404-16029 |
US $7.71 |
||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC アウトレット |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
90445-17110 Hose(For Oil Cooler Inlet)[08.1989 - 01.1993] LH100,107,119,120..4FC..(DSL,TDE) |
90445-17110 |
US $14.52 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[10.1990 - 08.1998] KZH10#,11#,120,13#,LH100,120..4FC |
90301-11006 |
from US $2.50 |
||
|
32921J
|
32921J
90467-16013
Clip(For Oil Return Hose)
[08.1989 - 08.1998] LH100,102,103,107,113,119,120,123,129..4FC |
90467-16013 |
— | ||
| replacement | |||||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[08.1989 - 08.1998] LH100,102,103,107,113,119,120,123,129..4FC |
90467-16022 |
from US $2.32 |
||
|
32922
|
32922
32922-26120 Tube, Oil Cooler Outlet, No.1[10.1990 - 08.1993] LH100,120..4FC |
32922-26120 |
US $28.25 |
||
|
32922A
|
32922A
90445-17110 Hose(For Oil Cooler Inlet)[08.1989 - 01.1993] LH100,102,113,120,123..4FC |
90445-17110 |
US $14.52 |
||
|
32923
|
32923
32923-26070 Clamp, Automatic Transmission Oil Cooler Tube[08.1989 - 01.1993] LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL ,SCM,SGL) |
32923-26070 |
US $8.01 |
||
| replacement | |||||
|
32923
|
32923
32923-26130 Clamp, Automatic Transmission Oil Cooler Tube[08.1989 - 01.1993] LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL ,SCM,SGL) |
32923-26130 |
US $8.01 |
||
|
32923A
|
32923A
90462-12079 Clamp, Automatic Transmission Oil Cooler Tube[01.1993 - 06.1998] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4 FC |
90462-12079 |
US $2.62 |
||
|
32923B
|
32923B
90462-12079 Clamp, Automatic Transmission Oil Cooler Tube[01.1993 - 07.1999] LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC |
90462-12079 |
US $2.62 |
||
|
32923C
|
32923C
90462-12079 Clamp, Automatic Transmission Oil Cooler Tube[01.1993 - 06.1998] LH100,102,103,107,113,119,120,123,129..4FC |
90462-12079 |
US $2.62 |
||
|
32924
|
32924
32924-26050
Clamp, Oil Cooler Tube, No.2
[08.1989 - 01.1993] LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL ,SCM,SGL) |
32924-26050 |
— | ||
| replacement | |||||
|
32924
|
32924
32924-26140 Clamp, Oil Cooler Tube, No.2[08.1989 - 01.1993] LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL ,SCM,SGL) |
32924-26140 |
US $8.30 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1989 - 07.1999] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ＝３５，内径＝１０ |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
32928-26010 Clamp, Flexible Hose, No.1[08.1989 - 01.1993] LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL ,SCM,SGL) |
32928-26010 |
US $8.30 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
