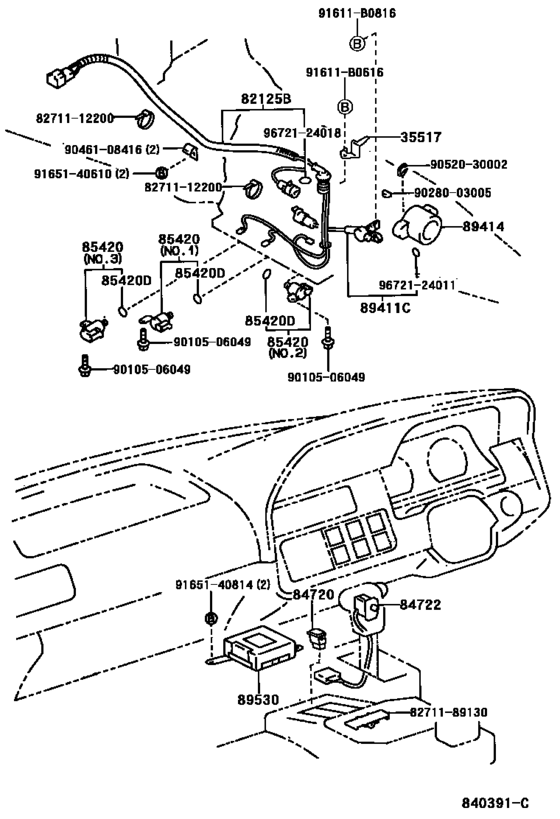

Overdrive & Electronic Controlled Transmission ([10.1990 - 08.1993] ECT (9010-9308)LH100,120..4FC) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-30010 Plate, Transmission Wire Lock[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC |
35517-30010 |
US $4.37 |
||
|
82125B
|
82125B
82125-26050 Wire, Transmission[10.1990 - 08.1993] LH100,120..4FC |
82125-26050 |
US $36.84 |
||
|
84720
|
84720
84720-26020 Switch Assy, Pattern Select[08.1989 - 08.1993] LH100,107,120,RZH100,101..4FC |
84720-26020 |
US $49.94 |
||
|
84722
|
84722
84722-26050-02
Switch, Transmission Control
[08.1989 - 07.1992] LH100,107,120,RZH100,101..(07S,08S,10S)..4FC MAROON,TRIM3# |
84722-26050-02 |
— | ||
| replacement | |||||
|
84722
|
84722
84722-26080-B1
Switch, Transmission Control
[08.1989 - 07.1992] LH100,107,120,RZH100,101..(07S,08S,10S)..4FC MAROON,TRIM3# |
84722-26080-B1 |
— | ||
|
85420
|
85420
85420-22080 Solenoid Assy, Transmission[10.1990 - 08.1995] KZH106,LH100,120..4FC ＮＯ．１ ＆ ＮＯ．２ |
85420-22080 |
US $217.60 |
||
|
85420
|
85420
85420-30110
Solenoid Assy, Transmission
[10.1990 - 08.1995] KZH106,LH100,120..4FC ＮＯ．３，ＡＩＳＩＮ |
85420-30110 |
— | ||
|
85420
|
85420
85420-30120
Solenoid Assy, Transmission
[10.1990 - 08.1993] LH100,120..4FC ＮＯ．３，ＮＩＰＰＯＮＤＥＮＳＯ |
85420-30120 |
— | ||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[10.1990 - 08.1993] LH100,120..4FC |
90301-06004 |
from US $2.15 |
||
|
89411C
|
89411C
89411-22061
Sensor, Speed
[08.1989 - 08.1993] LH100,120,RZH100,101..4FC |
89411-22061 |
— | ||
|
89414
|
89414
89414-30021
Rotor, Sensor
[10.1990 - 07.1999] KZH100,110,120,132,LH100,120..4FC |
89414-30021 |
— | ||
|
89530
|
89530
89530-26080 Computer Assy, Transmission Control[10.1990 - 08.1993] LH100,120..4FC |
89530-26080 |
US $762.94 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271189130
|
8271189130
82711-89130 Wire, Fuse To Fuse(for Combustion Heater) |
82711-89130 |
US $3.64 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
|
9046108416
|
9046108416
90461-08416
New Genuine Part
|
90461-08416 |
— | ||
|
9052030002
|
9052030002
90520-30002 Ring, Shaft Snap (For Output Shaft Bearing) |
90520-30002 |
US $1.05 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9672124011
|
9672124011
96721-24011 Ring, O(For Oil Pipe) |
96721-24011 |
US $4.66 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $3.78 |
||
