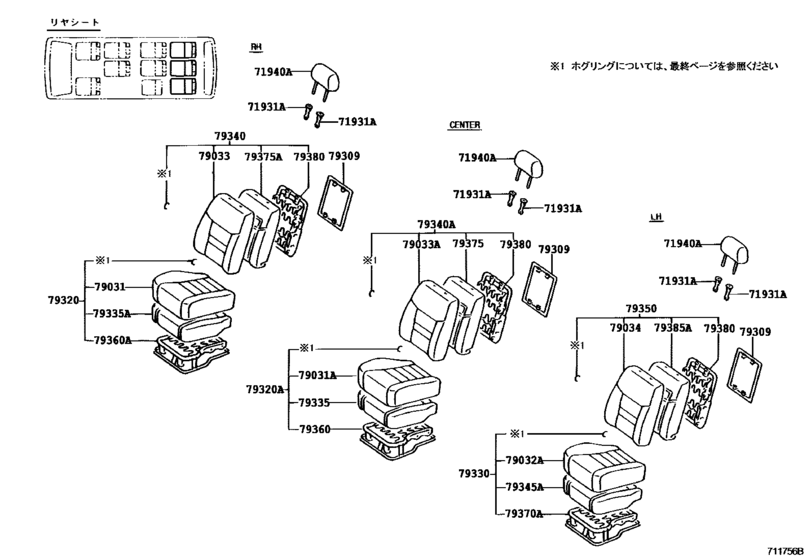

Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.3 (9205- )KZH12#,LH120..DX,GCGN) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71931A
|
71931A
71956-30020-12
Support, Front Seat Headrest
[05.1992 - 08.1993] LH120 ロック無,NEW MAROON,TRIM3# |
71956-30020-12 |
— | ||
|
71931A
|
71931A
71990-30020-12
Support, Front Seat Headrest
[05.1992 - 08.1993] LH120 ロック付,NEW MAROON,TRIM3# |
71990-30020-12 |
— | ||
|
71940A
|
71940A
71940-95J20-02 Headrest Assy, Rear Seat[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
71940-95J20-02 |
US $372.74 |
||
|
79031
|
79031
79031-26110-D0 Cover Sub-Assy, No.3 Seat Cushion, Rh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79031-26110-D0 |
US $430.98 |
||
|
79031A
|
79031A
79031-26110-D0 Cover Sub-Assy, No.3 Seat Cushion, Rh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79031-26110-D0 |
US $430.98 |
||
|
79032A
|
79032A
79031-26110-D0 Cover Sub-Assy, No.3 Seat Cushion, Rh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79031-26110-D0 |
US $430.98 |
||
|
79033
|
79033
79013-26080-D0 Cover Sub-Assy, No.1 Seat Back[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79013-26080-D0 |
US $417.87 |
||
|
79033A
|
79033A
79014-26040-D0 Cover Sub-Assy, No.1 Seat Back, Lh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79014-26040-D0 |
US $417.87 |
||
|
79034
|
79034
79034-26030-D0 Cover Sub-Assy, No.3 Seat Back, Lh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79034-26030-D0 |
US $417.87 |
||
|
79309
|
79309
C7409-95B02-D4 Board Sub-Assy, No.3 Seat Back[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3# |
C7409-95B02-D4 |
US $65.67 |
||
|
79320
|
79320
79320-26100-D0 Cushion Assy, No.3 Seat, Rh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79320-26100-D0 |
US $1,029.39 |
||
|
79320A
|
79320A
79320-26120-D0 Cushion Assy, No.3 Seat[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79320-26120-D0 |
US $1,029.39 |
||
|
79330
|
79330
79330-26030-D0 Cushion Assy, No.3 Seat, Lh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79330-26030-D0 |
US $1,029.39 |
||
|
79335
|
79335
79135-95J12 Pad, No.1 Seat Cushion[05.1992 - 07.1999] KZH12#,LH120 |
79135-95J12 |
US $152.88 |
||
|
79335A
|
79335A
79135-95J12 Pad, No.1 Seat Cushion[05.1992 - 07.1999] KZH12#,LH120 |
79135-95J12 |
US $152.88 |
||
|
79340
|
79340
79140-26080-D0 Back Assy, No.1 Seat[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79140-26080-D0 |
US $895.44 |
||
|
79340A
|
79340A
79340-26070-D0 Back Assy, No.3 Seat[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79340-26070-D0 |
US $895.44 |
||
|
79345A
|
79345A
79135-95J12 Pad, No.1 Seat Cushion[05.1992 - 07.1999] KZH12#,LH120 |
79135-95J12 |
US $152.88 |
||
|
79350
|
79350
79350-26020-D0 Back Assy, No.3 Seat, Lh[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
79350-26020-D0 |
US $895.44 |
||
|
79360
|
79360
C7470-95B04 Spring Assy, No.3 Seat Cushion[05.1992 - 07.1999] KZH12#,LH120 |
C7470-95B04 |
US $313.04 |
||
|
79360A
|
79360A
C7470-95B03 Spring Assy, No.3 Seat Cushion, Rh[05.1992 - 07.1999] KZH12#,LH120 |
C7470-95B03 |
US $313.04 |
||
|
79370A
|
79370A
C7470-95B05 Spring Assy, No.3 Seat Cushion, Lh[05.1992 - 07.1999] KZH12#,LH120 |
C7470-95B05 |
US $313.04 |
||
|
79375
|
79375
79175-95J20 Pad, No.1 Seat Back[05.1992 - 07.1999] KZH12#,LH120 |
79175-95J20 |
US $116.48 |
||
|
79375A
|
79375A
C7275-95B02 Pad, No.1 Seat Back[05.1992 - 07.1999] KZH12#,LH120 |
C7275-95B02 |
US $133.95 |
||
|
79380
|
79380
79180-95J18 Spring Assy, No.1 Seat Back[05.1992 - 08.1993] LH120 |
79180-95J18 |
US $216.94 |
||
| replacement | |||||
|
79380
|
79380
79180-26071 Spring Assy, No.1 Seat Back[05.1992 - 08.1993] LH120 |
79180-26071 |
US $216.94 |
||
|
79385A
|
79385A
C7475-95B02 Pad, No.3 Seat Back, Lh[05.1992 - 08.1995] KZH12#,LH120 |
C7475-95B02 |
US $216.94 |
||
