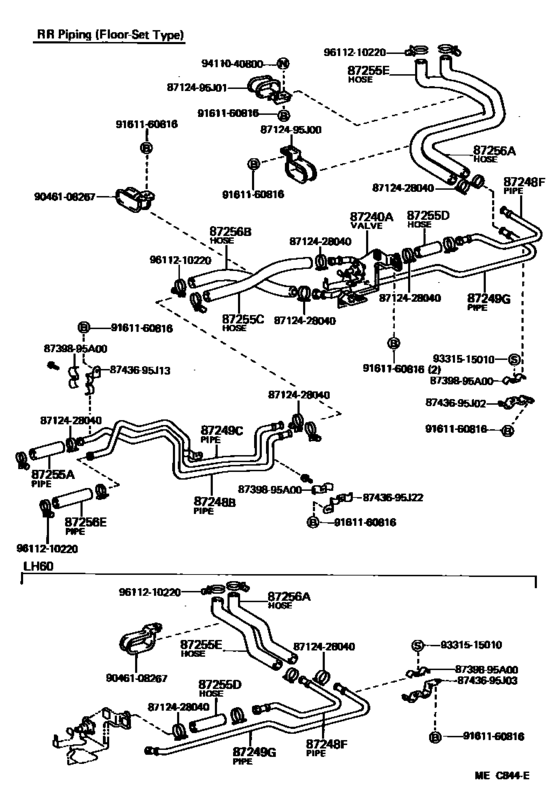

Heating & Air Conditioning - Water Piping ([12.1982 - ] (8212- )LH50,51,60,61..LHD..COM) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87240A
|
87240A
87240-95J01 Valve Assy, Rear Heater WaterREAR HEATER WATER [12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM; YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50 ,60..VSG..(4HC,5H)..(03S,09S) |
87240-95J01 |
US $43.83 |
||
|
87248B
|
87248B
87248-95J20
Pipe, Heater Water Inlet, B
[12.1982 - 08.1985] LH5#,6#..COM; LH6#..M1 |
87248-95J20 |
— | ||
| replacement | |||||
|
87248B
|
87248B
87248-95J53
Pipe, Heater Water Inlet, B
[12.1982 - 08.1985] LH5#,6#..COM; LH6#..M1 |
87248-95J53 |
— | ||
|
87248B
|
87248B
87248-95J53
Pipe, Heater Water Inlet, B
[08.1985 - 01.1986] LH51,61..M1; LH51,61..COM |
87248-95J53 |
— | ||
|
87248B
|
87248B
87248-95J66
Pipe, Heater Water Inlet, B
[01.1986 - 08.1987] LH51,61..M1; LH51,61..COM |
87248-95J66 |
— | ||
|
87248F
|
87248F
87248-95J06
Pipe, Heater Water Inlet, F
[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM |
87248-95J06 |
— | ||
|
87249C
|
87249C
87248-95J19
Pipe, Heater Water Outlet, C
[12.1982 - 08.1985] LH5#,6#..COM; LH6#..M1 |
87248-95J19 |
— | ||
| replacement | |||||
|
87249C
|
87249C
87248-95J52
Pipe, Heater Water Outlet, C
[12.1982 - 08.1985] LH5#,6#..COM; LH6#..M1 |
87248-95J52 |
— | ||
|
87249C
|
87249C
87248-95J52
Pipe, Heater Water Outlet, C
[08.1985 - 01.1986] LH51,61..M1; LH51,61..COM |
87248-95J52 |
— | ||
|
87249C
|
87249C
87248-95J65
Pipe, Heater Water Outlet, C
[01.1986 - 08.1987] LH51,61..M1; LH51,61..COM |
87248-95J65 |
— | ||
|
87249G
|
87249G
87248-95J07
Pipe, Heater Water Outlet, G
[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM |
87248-95J07 |
— | ||
|
87255A
|
87255A
99552-20200 Hose, Rear Heater Water Inlet, A(From Engine)REAR HEATER WATER INLET, A(FROM ENGINE) [12.1982 - 08.1984] LH5#,6#,YH50,60..COM *H,L=130; LH6#,YH5#,6#..(4HC,5H)..09S..EUR *H,L=130 |
99552-20200 |
US $4.51 |
||
| replacement | |||||
|
87255A
|
87255A
99556-20200 Hose, Water(For Lpg Regulator Outlet)[12.1982 - 08.1984] LH5#,6#,YH50,60..COM *H,L=130; LH6#,YH5#,6#..(4HC,5H)..09S..EUR *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
87255A
|
87255A
99556-20130 Hose, Rear Heater Water Inlet, A(From Engine)[08.1984 - 08.1985] LH51,61,YH50,60..COM *H,L=130; LH61,YH5#,61..(4HC,5H)..09S..EUR *H,L=130 |
99556-20130 |
US $3.49 |
||
| replacement | |||||
|
87255A
|
87255A
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1984 - 08.1985] LH51,61,YH50,60..COM *H,L=130; LH61,YH5#,61..(4HC,5H)..09S..EUR *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
87255A
|
87255A
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1985 - 08.1987] LH51,61,YH50,51,60,61..COM..(EUR,GEN) *H,L=130; LH51,61,YH51..5H..M1;YH50,61..LHD..V4D..VSG..5H *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
87255C
|
87255C
99552-21000 Hose, Rear Heater Water Inlet, A(From Engine)[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM *H,L=520; YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50 ,60..VSG..(4HC,5H)..(03S,09S) *H,L=520 |
99552-21000 |
US $18.93 |
||
| replacement | |||||
|
87255C
|
87255C
99556-21000 Hose, Rear Heater Water Inlet, B[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM *H,L=520; YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50 ,60..VSG..(4HC,5H)..(03S,09S) *H,L=520 |
99556-21000 |
US $21.99 |
||
|
87255D
|
87255D
99552-20100
Hose, Heater Water, Inlet E
[12.1982 - 08.1984] LH5#,6#,YH50,60..COM *H,L=50 |
99552-20100 |
— | ||
| replacement | |||||
|
87255D
|
87255D
99556-20200 Hose, Water(For Lpg Regulator Outlet)[12.1982 - 08.1984] LH5#,6#,YH50,60..COM *H,L=50 |
99556-20200 |
from US $6.32 |
||
|
87255D
|
87255D
99556-20050 Hose, Rear Heater Water Inlet, C[08.1984 - 08.1985] LH51,61,YH50,60..COM *H,L=50 |
99556-20050 |
US $1.89 |
||
| replacement | |||||
|
87255D
|
87255D
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1984 - 08.1985] LH51,61,YH50,60..COM *H,L=50 |
99556-20200 |
from US $6.32 |
||
|
87255D
|
87255D
99556-20100
Hose, Rear Heater Water Inlet, A(From Engine)
[08.1985 - 08.1987] LH51,61,YH50,51,60,61..COM..(EUR,GEN) *H,L=50 |
99556-20100 |
— | ||
| replacement | |||||
|
87255D
|
87255D
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1985 - 08.1987] LH51,61,YH50,51,60,61..COM..(EUR,GEN) *H,L=50 |
99556-20200 |
from US $6.32 |
||
|
87255E
|
87255E
87245-95J00 Hose, Rear Heater Water Inlet, E(To Heater Unit)REAR HEATER WATER INLET, E(TO HEATER UNIT) [12.1982 - 08.1987] LH50,51,YH50,51..LHD..12S |
87245-95J00 |
US $35.67 |
||
| replacement | |||||
|
87255E
|
87255E
87245-95J43 Hose, Rear Heater Water Inlet, E(To Heater Unit)[12.1982 - 08.1987] LH50,51,YH50,51..LHD..12S |
87245-95J43 |
US $15 |
||
|
87256A
|
87256A
87245-95J01 Hose, Rear Heater Water Outlet, A (From Heater Unit)REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) [12.1982 - 08.1987] LH50,51,YH50,51..LHD..12S |
87245-95J01 |
US $35.67 |
||
| replacement | |||||
|
87256A
|
87256A
87245-95J44 Hose, Rear Heater Water Outlet, A (From Heater Unit)[12.1982 - 08.1987] LH50,51,YH50,51..LHD..12S |
87245-95J44 |
US $39.02 |
||
|
87256B
|
87256B
99552-20500 Hose, Sub Radiator, No.2[12.1982 - 08.1984] LH5#,6#,YH50,60..LHD..COM *H,L=490 |
99552-20500 |
US $10.05 |
||
| replacement | |||||
|
87256B
|
87256B
99556-20500
Hose, Rear Heater Water Inlet, B
[12.1982 - 08.1984] LH5#,6#,YH50,60..LHD..COM *H,L=490 |
99556-20500 |
— | ||
|
87256B
|
87256B
99556-20490
Hose, Heater Water, Inlet B
[08.1984 - 08.1987] LH51,61,YH50,51,60,61..LHD..COM *H,L=490 |
99556-20490 |
— | ||
| replacement | |||||
|
87256B
|
87256B
99556-20500
Hose, Rear Heater Water Inlet, B
[08.1984 - 08.1987] LH51,61,YH50,51,60,61..LHD..COM *H,L=490 |
99556-20500 |
— | ||
|
87256E
|
87256E
99552-20200 Hose, Rear Heater Water Inlet, A(From Engine)REAR HEATER WATER INLET, A(FROM ENGINE) [12.1982 - 08.1984] LH5#,6#..COM *H,L=130; LH6#..M1 *H,L=130 |
99552-20200 |
US $4.51 |
||
| replacement | |||||
|
87256E
|
87256E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[12.1982 - 08.1984] LH5#,6#..COM *H,L=130; LH6#..M1 *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
87256E
|
87256E
99556-20130 Hose, Rear Heater Water Inlet, A(From Engine)[08.1984 - 08.1985] LH61..M1 *H,L=130; LH51,61..COM *H,L=130 |
99556-20130 |
US $3.49 |
||
| replacement | |||||
|
87256E
|
87256E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1984 - 08.1985] LH61..M1 *H,L=130; LH51,61..COM *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
87256E
|
87256E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1985 - 08.1987] LH51,61..COM *H,L=130; LH5#,61..U *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
8712495J00
|
8712495J00
87124-95J00
Clamp, Heater
|
87124-95J00 |
— | ||
|
8712495J01
|
8712495J01
87124-95J01
Clamp, Heater
|
87124-95J01 |
— | ||
|
8739895A00
|
8739895A00
87398-95A00
Band Assy (for Combustion Heater)
|
87398-95A00 |
— | ||
|
8743695J02
|
8743695J02
87436-95J02
New Genuine Part
|
87436-95J02 |
— | ||
|
8743695J03
|
8743695J03
87436-95J03
New Genuine Part
|
87436-95J03 |
— | ||
|
8743695J13
|
8743695J13
87436-95J13
New Genuine Part
|
87436-95J13 |
— | ||
|
8743695J22
|
8743695J22
87436-95J22
New Genuine Part
|
87436-95J22 |
— | ||
|
8712428040
|
8712428040
87124-28040
Clamp, Heater
|
87124-28040 |
— | ||
|
9046108267
|
9046108267
90461-08267
New Genuine Part
|
90461-08267 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
