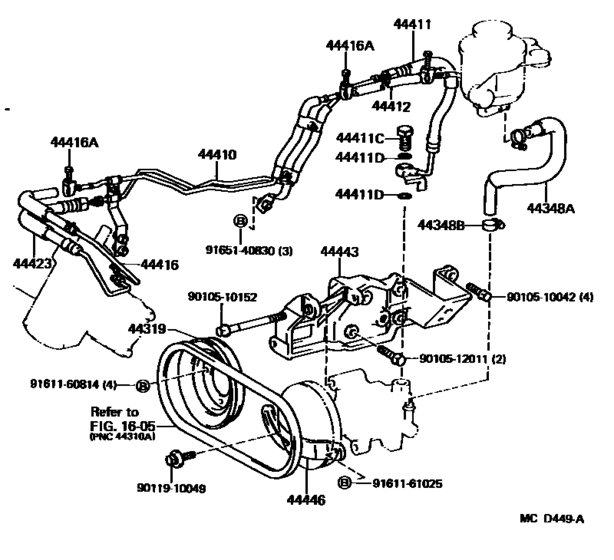

Power Steering Tube ([08.1986 - 08.1987] (8508-8608)LH51,61..LHD..GEN ; (8608-8708)LH51,6 1..LHD) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44319
|
44319
44319-30030
Pulley, Vane Pump Drive
[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
44319-30030 |
— | ||
|
44348A
|
44348A
44348-26011 Hose, Oil Reservoir To Pump, No.1[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
44348-26011 |
US $39.17 |
||
|
44348B
|
44348B
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
90460-26001 |
US $10.57 |
||
|
44410
|
44410
44410-26070 Tube Assy, Pressure FeedPRESSURE FEED [08.1985 - 08.1986] LH51,61..LHD..GEN |
44410-26070 |
US $218.40 |
||
|
44410
|
44410
44410-26110 Tube Assy, Pressure FeedPRESSURE FEED [08.1986 - 08.1987] LH51,61..LHD |
44410-26110 |
US $208.21 |
||
|
44411
|
44411
44411-26011 Hose, Pressure Feed[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
44411-26011 |
US $132.50 |
||
|
44411C
|
44411C
90401-16005 Bolt, Union(For Pressure Feed Tube)[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
90401-16005 |
US $21.56 |
||
| replacement | |||||
|
44411C
|
44411C
90401-16008 Bolt, Union(For Pressure Feed Tube)[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
90401-16008 |
from US $10.93 |
||
|
44411D
|
44411D
90430-16242 Gasket, W/head Straight Screw Plug[08.1985 - 08.1986] LH71;LH51,61..LHD..GEN |
90430-16242 |
from US $0.82 |
||
|
44412
|
44412
90445-18079
Hose, Return
[08.1985 - 08.1987] LH51,61..LHD..GEN |
90445-18079 |
— | ||
| replacement | |||||
|
44412
|
44412
90445-18137 Hose, Return[08.1985 - 08.1987] LH51,61..LHD..GEN |
90445-18137 |
US $4.48 |
||
|
44416
|
44416
44416-26020 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [08.1985 - 08.1986] LH51,61,YH50,60..LHD..GEN |
44416-26020 |
US $66.54 |
||
|
44416A
|
44416A
90460-01001 Clamp, Oil Cooler Hose[08.1985 - 08.1987] LH51,61,YH50,51,60,61..LHD..GEN |
90460-01001 |
US $10.39 |
||
|
44423
|
44423
44423-26030 Tube, Oil Pump To Gear BoxOIL PUMP TO GEAR BOX [08.1985 - 08.1986] LH51,61,YH50,60..LHD..GEN |
44423-26030 |
US $141.23 |
||
|
44443
|
44443
44443-26010 Bracket, Pump[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
44443-26010 |
US $123.76 |
||
|
44446
|
44446
44446-26010
Strut, Adjusting
[08.1985 - 08.1987] LH71;LH51,61..LHD..GEN |
44446-26010 |
— | ||
|
9010510042
|
9010510042
90105-10042 Bolt, Flywheel Setting |
90105-10042 |
from US $1.29 |
||
|
9010510152
|
9010510152
90105-10152 New Genuine Part |
90105-10152 |
US $4.22 |
||
|
9010512011
|
9010512011
90105-12011 Bolt, Flywheel Setting |
90105-12011 |
US $3.93 |
||
|
9011910049
|
9011910049
90119-10049 Bolt, Center Support Bearing Bracket |
90119-10049 |
from US $1.50 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
