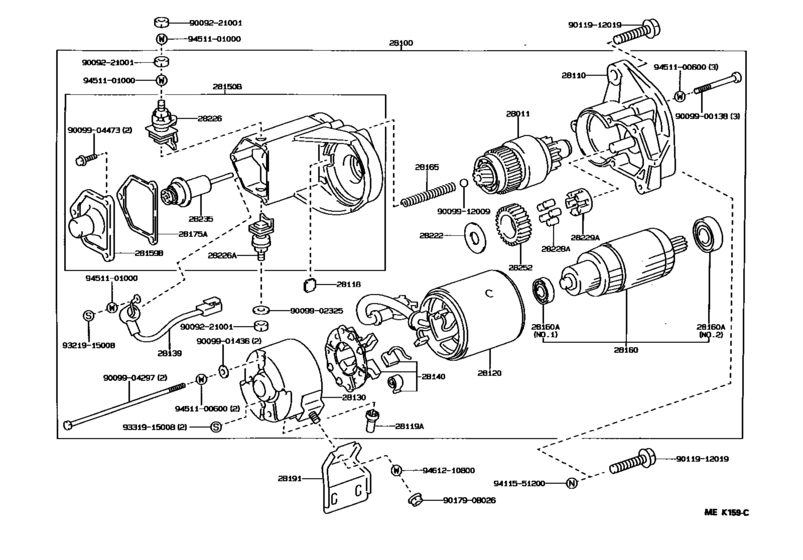

Starter ([08.1987 - ] 12V 2.5KW (8708- )2L..LH51,61) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54070 Clutch Sub-Assy, Starter[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28011-54070 |
from US $240.53 |
||
|
28100
|
28100
28100-54070 Starter Assy[08.1987 - 08.1989] 2L..LH51,61,71..5H 12V 2.0KW |
28100-54070 |
US $1,805.44 |
||
| replacement | |||||
|
28100
|
28100
28100-54180 Starter Assy[08.1987 - 08.1989] 2L..LH51,61,71..5H 12V 2.0KW |
28100-54180 |
US $1,805.44 |
||
|
28110
|
28110
28115-54070
Housing Assy, Starter Drive
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28115-54070 |
— | ||
|
28119A
|
28119A
28119-54070
Cover, Starter End Frame
[08.1987 - 06.1988] 2L..LH51,61,71..5H |
28119-54070 |
— | ||
|
28119A
|
28119A
28199-77090
Cover, Starter End Frame
[06.1988 - 08.1989] 2L..LH51,61,71 |
28199-77090 |
— | ||
|
28120
|
28120
28120-54070
Yoke Assy, Starter
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28120-54070 |
— | ||
|
28139
|
28139
28139-54070
Wire, Lead, No.1(For Starter)
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28139-54070 |
— | ||
|
28140
|
28140
28140-54070
Holder Assy, Starter Brush
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28140-54070 |
— | ||
|
28150B
|
28150B
28150-54070
Switch Assy, Magnet Starter
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28150-54070 |
— | ||
| replacement | |||||
|
28150B
|
28150B
28150-54110 Switch Assy, Magnet Starter[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28150-54110 |
US $352.35 |
||
|
28159B
|
28159B
28159-54170
Cover, Magnet Switch
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28159-54170 |
— | ||
|
28160
|
28160
28160-54070 Armature Assy, Starter[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28160-54070 |
US $487.76 |
||
| replacement | |||||
|
28160
|
28160
28160-54071
Armature Assy, Starter
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28160-54071 |
— | ||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[08.1987 - 08.1989] 2L..LH51,61,71..5H NO.1 |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[08.1987 - 08.1989] 2L..LH51,61,71..5H NO.2 |
90099-10131 |
US $7.43 |
||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[08.1987 - 03.1992] 3Y,4Y..YH53,61,63;2L,2Y,3Y,4Y..LH51,61,71,YH51,60,73..MTM |
28165-26040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[08.1987 - 03.1992] 3Y,4Y..YH53,61,63;2L,2Y,3Y,4Y..LH51,61,71,YH51,60,73..MTM |
28175-10040 |
— | ||
|
28226
|
28226
28226-54080
Starter Kit, Battery Terminal
[08.1987 - 01.1991] 2L..LH51,61,71..5H |
28226-54080 |
— | ||
|
28226A
|
28226A
28226-54100
Starter Kit, Motor Terminal
[08.1987 - 01.1991] 2L..LH51,61,71..5H |
28226-54100 |
— | ||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[08.1987 - 03.1992] 3Y,4Y..YH53,61,63;2L,2Y,3Y,4Y..LH51,61,71,YH51,60,73..MTM |
28228-26040 |
— | ||
|
28229A
|
28229A
28229-26040
Retainer, Starter Idle Gear
[08.1987 - 03.1992] 3Y,4Y..YH53,61,63;2L,2Y,3Y,4Y..LH51,61,71,YH51,60,73..MTM |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[08.1987 - 03.1992] 3Y,4Y..YH53,61,63;2L,2Y,3Y,4Y..LH51,61,71,YH51,60,73..MTM |
28235-35080 |
from US $23.41 |
||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[08.1987 - 08.1989] 2L..LH51,61,71..5H |
28254-54070 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900138
|
9009900138
90099-00138
New Genuine Part
|
90099-00138 |
— | ||
| replacement | |||||
|
9009900138
|
9009900138
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.29 |
||
|
9009904297
|
9009904297
90099-04297
BOLT
|
90099-04297 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011912019
|
9011912019
90119-12019 Bolt(For Transaxle & Engine Setting) |
90119-12019 |
US $2.80 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9321915008
|
9321915008
93219-15008
New Genuine Part
|
93219-15008 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
