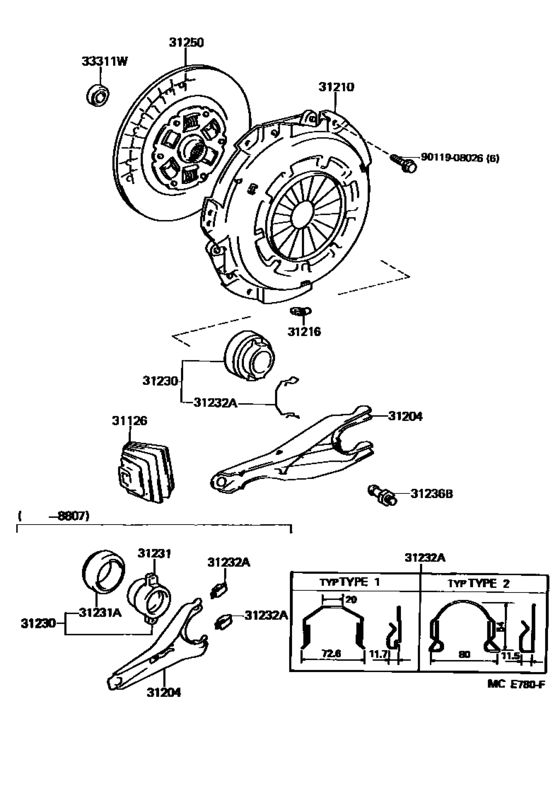

Clutch & Release Fork ([08.1987 - 08.1989] (8708-8908)LH51,61,71..5H) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1987 - 08.1989] LH51,61,71..5H |
31126-20070 |
from US $12.69 |
||
|
31204
|
31204
31204-20090 Fork Sub-Assy, Clutch Release[08.1987 - 07.1988] LH51,61,71..5H |
31204-20090 |
US $37.97 |
||
|
31204
|
31204
31204-35050 Fork Sub-Assy, Clutch Release[07.1988 - 08.1989] LH51,61,71..5H |
31204-35050 |
from US $16.19 |
||
|
31210
|
31210
31210-14130 Cover Assy, Clutch[08.1987 - 08.1988] LH51,61,71..5H |
31210-14130 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[08.1987 - 08.1988] LH51,61,71..5H |
31210-22101 |
from US $155.47 |
||
|
31210
|
31210
31210-35090
Cover Assy, Clutch
[08.1988 - 08.1989] LH51,61,71..5H |
31210-35090 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[08.1988 - 08.1989] LH51,61,71..5H |
31210-22101 |
from US $155.47 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[08.1987 - 06.1992] LH51,61,71,YH60..MTM |
31216-30010 |
— | ||
|
31230
|
31230
31230-35070
Bearing Assy, Clutch Release
[07.1988 - 02.1991] LH51,61,71..5H |
31230-35070 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-35071 Bearing Assy, Clutch Release[07.1988 - 02.1991] LH51,61,71..5H |
31230-35071 |
from US $55.44 |
||
|
31231
|
31231
31231-20090 Hub, Clutch Release Bearing[08.1987 - 07.1988] LH51,61,71..5H |
31231-20090 |
US $21.77 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1987 - 07.1988] LH51,61,71,YH5#,6#,73..MTM |
90363-40022 |
from US $40.89 |
||
|
31232A
|
31232A
31232-22010 Clip Or Spring, Release Bearing Hub[08.1987 - 07.1988] LH51,61,71,YH5#,6#,73..MTM |
31232-22010 |
from US $1.60 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[07.1988 - 03.1998] LH51,61,71,YH5#,6#,73..MTM TYPE 1 |
31232-35020 |
from US $2.34 |
||
|
31232A
|
31232A
31232-35030 Clip Or Spring, Release Bearing Hub[07.1988 - 08.1989] LH51,61,71..5H TYPE 2 |
31232-35030 |
US $2.62 |
||
|
31236B
|
31236B
31236-30060 Ball, Release Fork[08.1987 - 08.1988] LH51,61,71,YH5#,61..MTM..STD |
31236-30060 |
from US $10.24 |
||
|
31250
|
31250
31250-26051 Disc Assy, Clutch[08.1987 - 01.1988] LH51,61,71..5H |
31250-26051 |
US $149.97 |
||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [08.1987 - 01.1988] LH51,61,71..5H |
31250-35410 |
from US $253.34 |
||
|
31250
|
31250
31250-26052 Disc Assy, Clutch[01.1988 - 08.1989] LH51,61,71..5H |
31250-26052 |
US $148.51 |
||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [01.1988 - 08.1989] LH51,61,71..5H |
31250-35410 |
from US $253.34 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1987 - 10.1996] LH51,61,71,YH5#,6#,73..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1987 - 10.1996] LH51,61,71,YH5#,6#,73..MTM |
90363-12024 |
from US $5.67 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
