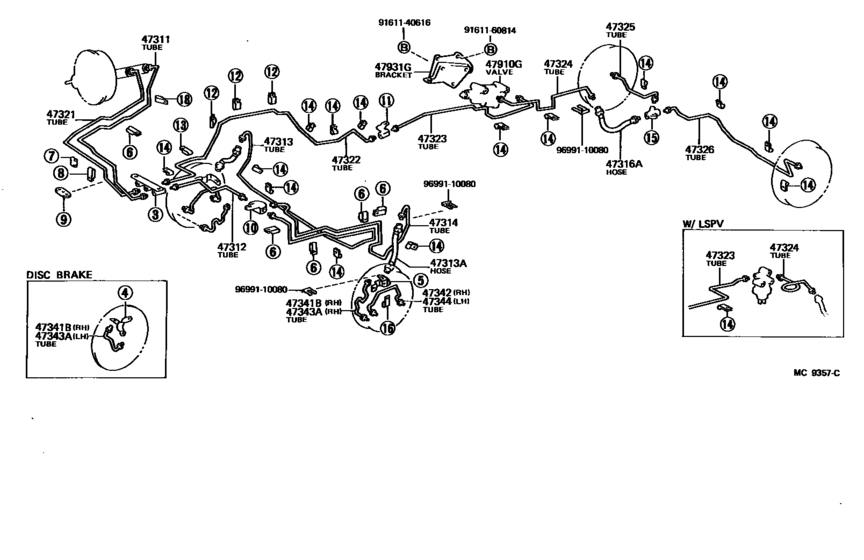

Brake Tube & Clamp ([12.1982 - ] (8212- )LH50,51,60,61,7#,YH5#,6#,71..COM,V..S T) Diagram Toyota HIACE
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LH60V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 01.1984
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-26190 Tube, Front Brake, No.1[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
47311-26190 |
US $12.96 |
||
| replacement | |||||
|
47311
|
47311
47311-26192 Tube, Front Brake, No.1[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
47311-26192 |
US $13.10 |
||
|
47312
|
47312
47312-26170 Tube, Front Brake, No.2[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
47312-26170 |
US $8.44 |
||
| replacement | |||||
|
47312
|
47312
47312-26190 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
47312-26190 |
US $9.17 |
||
|
47313
|
47313
47313-26090 Tube, Front Brake, No.3[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
47313-26090 |
US $25.04 |
||
| replacement | |||||
|
47313
|
47313
47313-26100 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
47313-26100 |
US $25.04 |
||
|
47313A
|
47313A
90947-02436
Hose, Flexible, No.1(For Front)
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
90947-02436 |
— | ||
|
47314
|
47314
47314-26080 Tube, Front Brake, No.4[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
47314-26080 |
US $17.62 |
||
| replacement | |||||
|
47314
|
47314
47314-26090 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
47314-26090 |
US $14.71 |
||
|
47316A
|
47316A
96940-33205 Hose, Flexible(For Rear Brake Tube)[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71..ST |
96940-33205 |
US $11.15 |
||
|
47321
|
47321
47321-26100 Tube, Rear Brake, No.1[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
47321-26100 |
US $14.71 |
||
| replacement | |||||
|
47321
|
47321
47321-26101 Tube, Rear Brake, No.1[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
47321-26101 |
US $14.71 |
||
|
47322
|
47322
47322-26090 Tube, Rear Brake, No.2[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
47322-26090 |
US $23.30 |
||
| replacement | |||||
|
47322
|
47322
47322-26120 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
47322-26120 |
US $17.76 |
||
|
47323
|
47323
47323-26200 Tube, Rear Brake, No.3[12.1982 - 08.1985] LH6#,70,YH6#..(COM,V)..DLX..ST |
47323-26200 |
US $22.28 |
||
| replacement | |||||
|
47323
|
47323
47323-26201 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [12.1982 - 08.1985] LH6#,70,YH6#..(COM,V)..DLX..ST |
47323-26201 |
US $22.42 |
||
|
47323
|
47323
47323-26210 Tube, Rear Brake, No.3[12.1982 - 08.1985] LH6#,YH6#..(COM,V)..ST W/LSPV |
47323-26210 |
US $17.62 |
||
| replacement | |||||
|
47323
|
47323
47323-26211 Tube, Rear Brake, No.3[12.1982 - 08.1985] LH6#,YH6#..(COM,V)..ST W/LSPV |
47323-26211 |
US $14.71 |
||
|
47323
|
47323
47323-26211 Tube, Rear Brake, No.3[08.1985 - 08.1987] LH6#,YH6#..(COM,V)..ST |
47323-26211 |
US $14.71 |
||
|
47324
|
47324
47324-26090 Tube, Rear Brake, No.4[12.1982 - 11.1984] LH5#,6#,YH50,52,6#..(COM,V)..(DLX,STD)..ST |
47324-26090 |
US $5.82 |
||
| replacement | |||||
|
47324
|
47324
47324-26091 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [12.1982 - 11.1984] LH5#,6#,YH50,52,6#..(COM,V)..(DLX,STD)..ST |
47324-26091 |
US $5.53 |
||
|
47324
|
47324
47324-26100 Tube, Rear Brake, No.4[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST W/LSPV |
47324-26100 |
US $11.94 |
||
| replacement | |||||
|
47324
|
47324
47324-26101 Tube, Rear Brake, No.4[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST W/LSPV |
47324-26101 |
US $10.48 |
||
|
47324
|
47324
47324-26101 Tube, Rear Brake, No.4[08.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..(COM,V)..ST |
47324-26101 |
US $10.48 |
||
|
47325
|
47325
47325-26140 Tube, Rear Brake, No.5[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
47325-26140 |
US $11.94 |
||
| replacement | |||||
|
47325
|
47325
47325-26180 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
47325-26180 |
US $11.94 |
||
|
47326
|
47326
47326-26120 Tube, Rear Brake, No.6[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
47326-26120 |
US $17.76 |
||
| replacement | |||||
|
47326
|
47326
47326-26121 Tube, Rear Brake, No.6[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
47326-26121 |
US $18.05 |
||
|
47341B
|
47341B
47341-26030
Tube, Wheel Cylinder, Front Rh No.1
[12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47341-26030 |
— | ||
|
47341B
|
47341B
47341-26040
Tube, Wheel Cylinder, Front Rh No.1
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
47341-26040 |
— | ||
| replacement | |||||
|
47341B
|
47341B
47341-26050
Tube, Wheel Cylinder, Front Rh No.1
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
47341-26050 |
— | ||
|
47342
|
47342
47342-26020 Tube, Wheel Cylinder, Front Rh No.2[12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47342-26020 |
US $9.17 |
||
| replacement | |||||
|
47342
|
47342
47342-26030 Tube, Wheel Cylinder, Front Rh No.2WHEEL CYLINDER, FRONT RH NO.2 [12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47342-26030 |
US $7.86 |
||
|
47343A
|
47343A
47343-26020 Tube, Wheel Cylinder, Front Lh No.1[12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47343-26020 |
US $16.89 |
||
|
47343A
|
47343A
47343-26030
Tube, Wheel Cylinder, Front Lh No.1
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
47343-26030 |
— | ||
| replacement | |||||
|
47343A
|
47343A
47343-26040
Tube, Wheel Cylinder, Front Lh No.1
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 FR DISC BRAKE |
47343-26040 |
— | ||
|
47344
|
47344
47344-26010 Tube, Wheel Cylinder, Front Lh No.2[12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47344-26010 |
US $9.17 |
||
| replacement | |||||
|
47344
|
47344
47344-26030 Tube, Wheel Cylinder, Front Lh No.2WHEEL CYLINDER, FRONT LH NO.2 [12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47344-26030 |
US $7.86 |
||
|
47910G
|
47910G
47910-26060
Valve Assy, Deceleration Sensing Proportioning
[12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47910-26060 |
— | ||
|
47931G
|
47931G
47931-26080 Bracket, Deceleration Sensing Valve[12.1982 - 11.1984] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) FR DRUM BRAKE |
47931-26080 |
US $29.41 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
