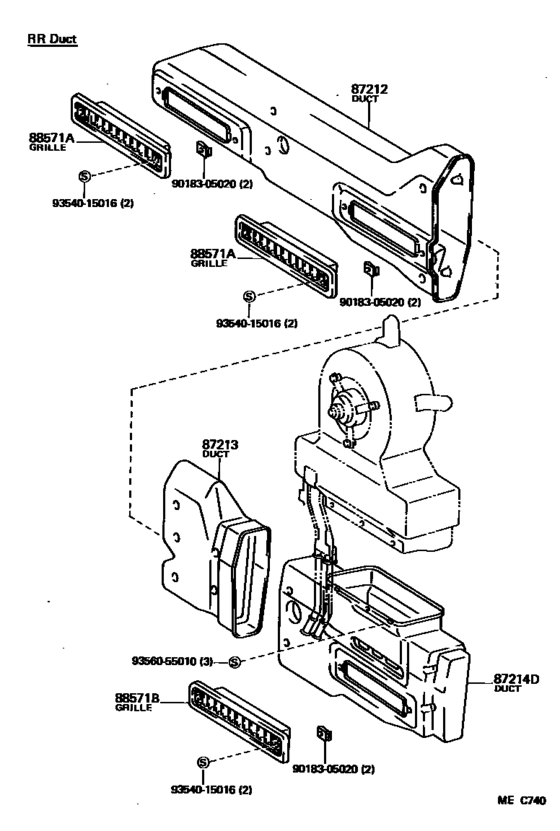

Heating & Air Conditioning - Control & Air Duct ([12.1982 - ] (8212- )V4D..ST) Diagram Toyota HIACE
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LH60V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 01.1984
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87212
|
87212
87212-95J00
Duct, Air, Rear No.1
[12.1982 - 08.1987] LH50,51,60,61,YH51,61..WG; LH56,60,66,7#,YH52,62,71..V4D..VSG;LH50,51,61,YH50,61..V4D..(05S,06S,09S)..ST |
87212-95J00 |
— | ||
|
87213
|
87213
87213-95J00
Duct, Air, Rear No.2
[12.1982 - 08.1987] LH50,51,60,61,YH51,61..WG; LH56,60,66,YH52,62..V4D..VSG;LH50,51,61,YH50,61..V4D..(05S,06S,09S)..ST |
87213-95J00 |
— | ||
|
87214D
|
87214D
87214-95J00
Duct, Air, Rear No.3
[12.1982 - 08.1987] LH50,51,YH51..WG; LH56,60,66,7#,YH52,62,71..V4D..VSG;LH50,51,61,YH50,61..V4D..(05S,06S,09S)..ST |
87214-95J00 |
— | ||
|
88571A
|
88571A
87125-95J00-04
Grille, Air Outlet
[12.1982 - 08.1985] YH52,62 BLUE,BLUE; LH5#,6#,7#,YH50,61,71..V4D..(06S,09S) BLUE,BLUE |
87125-95J00-04 |
— | ||
| replacement | |||||
|
88571A
|
88571A
87125-95J00-J0
Grille, Air Outlet
[12.1982 - 08.1985] YH52,62 BLUE,BLUE; LH5#,6#,7#,YH50,61,71..V4D..(06S,09S) BLUE,BLUE |
87125-95J00-J0 |
— | ||
|
88571A
|
88571A
87125-95J00-05
Grille, Air Outlet
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..V4D..VSG BEIGE,BEIGE |
87125-95J00-05 |
— | ||
|
88571A
|
88571A
87125-95J00-14
Grille, Air Outlet
[08.1985 - 08.1987] YH62 BLUE,BLUE; LH5#,6#,71,YH50,61,71..V4D..(DLX,GL)..ST BLUE,BLUE |
87125-95J00-14 |
— | ||
|
88571A
|
88571A
87125-95J00-16
Grille, Air Outlet
[08.1985 - 08.1987] YH62 BROWN,BROWN; LH5#,6#,71,YH50,61,71..V4D..(DLX,GL)..ST BROWN,BROWN |
87125-95J00-16 |
— | ||
|
88571B
|
88571B
87125-95J02-04
Grille, Air Outlet
[12.1982 - 08.1985] LH50,YH50..V4D..06S;LH51,6#,7#,YH52,6#,71..V4D..VSG BLUE,BLUE |
87125-95J02-04 |
— | ||
|
88571B
|
88571B
87125-95J02-05
Grille, Air Outlet
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..V4D..VSG BEIGE,BEIGE |
87125-95J02-05 |
— | ||
|
9018305020
|
9018305020
90183-05020 New Genuine Part |
90183-05020 |
US $1.75 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
|
9356055010
|
9356055010
93560-55010 Screw(For Mat Set Plate) |
93560-55010 |
US $1.08 |
||
