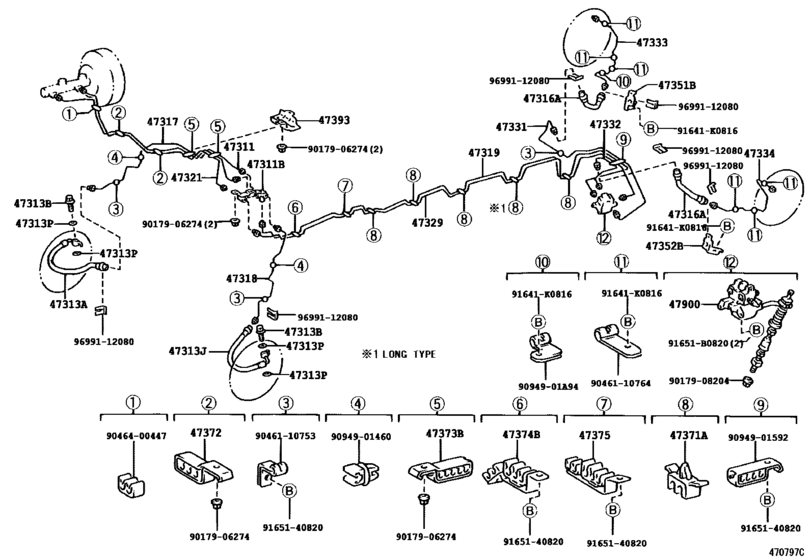

Brake Tube & Clamp ([08.1997 - 08.2001] (9708-0108)RHD) Diagram Toyota HIACE
- Year
- 1995 - 1999
- Sales region
- Europe
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.1995
- To
- 07.1999
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-26520 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1995 - 08.1997] RCH12..RHD |
47311-26520 |
US $21.84 |
||
|
47311
|
47311
47311-26620 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [04.1998 - 10.1999] RCH12,13..RHD..03S W(ABS) |
47311-26620 |
US $29.27 |
||
|
47311
|
47311
47311-26640 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1997 - 10.1999] RCH12,13..RHD..03S |
47311-26640 |
US $21.99 |
||
|
47311B
|
47311B
90412-10165 Way, No.1(For Front Brake Tube)[04.1998 - 10.1999] LXH12,22,RCH12,13,23..03S,05S,06S,09S W(ABS) |
90412-10165 |
US $6.47 |
||
|
47311B
|
47311B
90904-14005 Way, No.1(For Front Brake Tube)[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
90904-14005 |
US $13.54 |
||
|
47313A
|
47313A
90947-02833 Hose, Flexible, No.1(For Front)[08.1995 - 07.1999] LXH12,22,RCH12,13,22,23 |
90947-02833 |
US $25.03 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
90401-10015 |
from US $3.58 |
||
|
47313J
|
47313J
90947-02834 Hose, Flexible, No.2(For Front)[08.1995 - 07.1999] LXH12,22,RCH12,13,22,23 |
90947-02834 |
US $25.03 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
90430-10074 |
from US $0.88 |
||
|
47316A
|
47316A
90947-02828 Hose, Flexible(For Rear Brake Tube)[08.1995 - 07.1999] LXH1#,2#,RCH1#,2# |
90947-02828 |
US $25.03 |
||
|
47317
|
47317
47317-26200 Tube, Front Brake, No.7FRONT BRAKE, NO.7 [08.1997 - 10.1999] LXH12,22,RCH12,13,22,23..03S,05S,06S,09S |
47317-26200 |
US $17.76 |
||
|
47318
|
47318
47318-26060 Tube, Front Brake, No.4[08.1997 - 10.1999] LXH12,22,RCH12,13,22,23..03S,05S,06S,09S |
47318-26060 |
US $12.67 |
||
|
47319
|
47319
47319-26051 Tube, Front Brake, No.9FRONT BRAKE, NO.9 [04.1998 - 07.1999] LXH12,RCH12,13 W(ABS) |
47319-26051 |
US $39.02 |
||
|
47319
|
47319
47319-26060 Tube, Rear Brake, No.1[08.1997 - 04.1998] LXH12,RCH12 |
47319-26060 |
US $36.25 |
||
|
47319
|
47319
47319-26061 Tube, Front Brake, No.9FRONT BRAKE, NO.9 [04.1998 - 07.1999] LXH12,RCH12,13 |
47319-26061 |
US $39.02 |
||
|
47321
|
47321
47319-26060 Tube, Rear Brake, No.1[08.1995 - 08.1997] LXH12,RCH12 |
47319-26060 |
US $36.25 |
||
|
47321
|
47321
47321-26470 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.1997 - 10.1999] RCH12,13..RHD..03S |
47321-26470 |
US $21.99 |
||
|
47329
|
47329
47329-26070 Tube, Rear Brake, No.2[08.1997 - 04.1998] LXH12,RCH12 |
47329-26070 |
US $41.35 |
||
|
47329
|
47329
47329-26071 Tube, Rear Brake, No.9REAR BRAKE, NO.9 [04.1998 - 07.1999] LXH12,RCH12,13 |
47329-26071 |
US $41.35 |
||
|
47331
|
47331
47331-26060 Tube, Rear Brake, No.3[08.1997 - 07.1999] LXH12,22,RCH12,13,22,23 |
47331-26060 |
US $14.71 |
||
|
47332
|
47332
47332-26030 Tube, Rear Brake, No.4[08.1997 - 07.1999] LXH12,22,RCH12,13,22,23 |
47332-26030 |
US $7.43 |
||
|
47333
|
47333
47333-26030 Tube, Rear Brake, No.5[08.1997 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
47333-26030 |
US $14.71 |
||
| replacement | |||||
|
47333
|
47333
47333-26080 Tube, Rear Brake, No.5[08.1997 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
47333-26080 |
US $15.38 |
||
|
47334
|
47334
47334-26070 Tube, Rear Brake, No.6[08.1997 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
47334-26070 |
US $14.71 |
||
| replacement | |||||
|
47334
|
47334
47334-26090 Tube, Rear Brake, No.6[08.1997 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
47334-26090 |
US $15.38 |
||
|
47351B
|
47351B
47351-26150 Bracket, Flexible Hose, No.1[08.1995 - 07.1999] LXH1#,2#,RCH1#,2# |
47351-26150 |
US $6.99 |
||
|
47352B
|
47352B
47352-26140 Bracket, Flexible Hose, No.2[08.1995 - 07.1999] LXH1#,2#,RCH1#,2# |
47352-26140 |
US $6.99 |
||
|
47371A
|
47371A
90469-05013 Clamp, Brake Tube, No.1[08.1995 - 10.1999] LXH1#,RCH1#..03S,05S,06S,09S |
90469-05013 |
US $1.46 |
||
|
47372
|
47372
47371-26050 Clamp, Brake Tube, No.1[04.1998 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S W(ABS) |
47371-26050 |
US $10.34 |
||
|
47372
|
47372
47371-26060 Clamp, Brake Tube, No.2[08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
47371-26060 |
US $9.03 |
||
|
47373B
|
47373B
47371-26110 Clamp, Brake Tube, No.2[08.1995 - 10.1998] LXH12,22,RCH12,13..RHD |
47371-26110 |
US $10.48 |
||
| replacement | |||||
|
47373B
|
47373B
47371-26050 Clamp, Brake Tube, No.1[08.1995 - 10.1998] LXH12,22,RCH12,13..RHD |
47371-26050 |
US $10.34 |
||
|
47374B
|
47374B
47371-26140 Clamp, Brake Tube, No.6[08.1995 - 08.1997] LXH1#,2#,RCH1#,2# |
47371-26140 |
US $11.79 |
||
|
47375
|
47375
47371-26150 Clamp, Brake Tube, No.7[08.1995 - 08.1997] LXH1#,2#,RCH1#,2# |
47371-26150 |
US $10.48 |
||
|
47393
|
47393
47393-26020 Insulator, Brake Tube Heat[08.1995 - 08.1997] LXH1#,2#,RCH1#,2# |
47393-26020 |
US $14.41 |
||
|
47393
|
47393
47393-26050 Insulator, Brake Tube Heat[08.1997 - 10.1999] RCH1#,2#..03S,05S,06S,09S |
47393-26050 |
US $24.02 |
||
|
47900
|
47900
47900-26540
Valve Assy, Load Sensing W/spring
[08.1995 - 04.1998] LXH1#,2#,RCH1#,2# |
47900-26540 |
— | ||
| replacement | |||||
|
47900
|
47900
47900-26543 Valve Assy, Load Sensing W/spring[08.1995 - 04.1998] LXH1#,2#,RCH1#,2# |
47900-26543 |
US $275.20 |
||
|
47900
|
47900
47900-26541 Valve Assy, Load Sensing W/spring[04.1998 - 07.1999] LXH1#,2#,RCH1#,2# |
47900-26541 |
US $232.96 |
||
| replacement | |||||
|
47900
|
47900
47900-26543 Valve Assy, Load Sensing W/spring[04.1998 - 07.1999] LXH1#,2#,RCH1#,2# |
47900-26543 |
US $275.20 |
||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.33 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9094901A94
|
9094901A94
90949-01A94 New Genuine Part |
90949-01A94 |
US $4.66 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9046110753
|
9046110753
90461-10753 New Genuine Part |
90461-10753 |
US $4.02 |
||
|
9046110764
|
9046110764
90461-10764
New Genuine Part
|
90461-10764 |
— | ||
|
9046400447
|
9046400447
90464-00447 Clamp, Brake Tube, No.3 |
90464-00447 |
US $6.55 |
||
|
9094901460
|
9094901460
90949-01460 New Genuine Part |
90949-01460 |
US $2.97 |
||
|
9094901592
|
9094901592
90949-01592 New Genuine Part |
90949-01592 |
US $3.79 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $2.15 |
||
