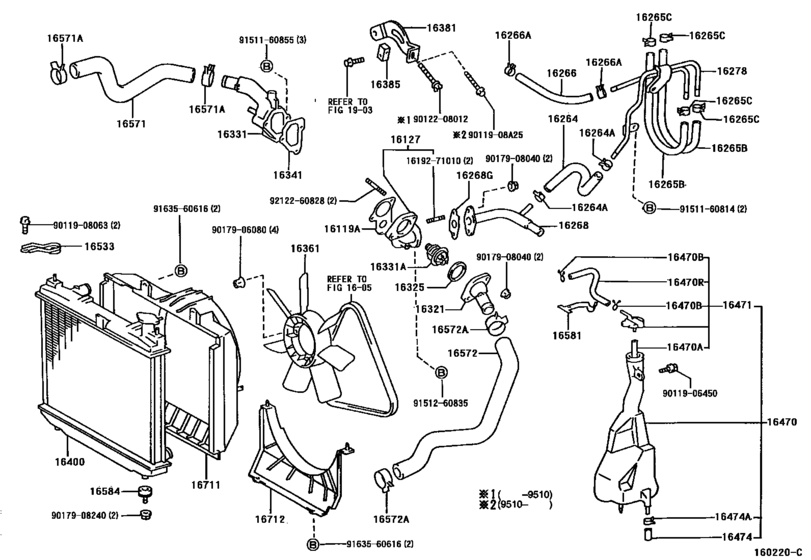

Radiator & Water Outlet ([08.1995 - 07.1999] (9508-9907)2RZE) Diagram Toyota HIACE
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.1995
- To
- 07.1999
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16119A
|
16119A
16119-75020 Gasket, Thermostat Guide[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16119-75020 |
from US $3.65 |
||
|
16127
|
16127
16127-75020 Plate, Water Pump Thermostat Guide[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16127-75020 |
from US $20.38 |
||
|
16264
|
16264
16264-75050 Hose, Water By-Pass, No.2[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16264-75050 |
US $7.72 |
||
|
16264A
|
16264A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
96135-41300 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
96135-51300 |
from US $2.13 |
||
|
16265B
|
16265B
99555-10300
Hose, Water, No.1
[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 *H,L=250 |
99555-10300 |
— | ||
| replacement | |||||
|
16265B
|
16265B
99555-10500 Hose, Water, No.1[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 *H,L=250 |
99555-10500 |
from US $19.32 |
||
|
16265C
|
16265C
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
96135-41300 |
— | ||
| replacement | |||||
|
16265C
|
16265C
96135-51300 Clamp, Hose[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
96135-51300 |
from US $2.13 |
||
|
16266
|
16266
99555-10200 Hose, Water By-Pass[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 *H,L=140 |
99555-10200 |
from US $5.13 |
||
|
16266A
|
16266A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
96135-41300 |
— | ||
| replacement | |||||
|
16266A
|
16266A
96135-51300 Clamp, Hose[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
96135-51300 |
from US $2.13 |
||
|
16268
|
16268
16268-75060 Pipe, Water By-Pass, No.1[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16268-75060 |
US $37.13 |
||
|
16268G
|
16268G
17175-75010 Gasket(For Water By-Pass Pipe)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
17175-75010 |
from US $2.50 |
||
|
16278
|
16278
16278-75011 Pipe, Water By-Pass, No.2[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16278-75011 |
US $45.28 |
||
|
16321
|
16321
16321-75010 Inlet, Water[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16321-75010 |
from US $51.54 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[08.1995 - 09.1996] 2RZE..RCH1# |
16325-62010 |
from US $3.94 |
||
|
16325
|
16325
16325-76010 Gasket, Water Inlet Housing, No.1[09.1996 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16325-76010 |
from US $3.88 |
||
|
16331
|
16331
16304-75010 Outlet, Water[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16304-75010 |
from US $67.06 |
||
|
16331A
|
16331A
90916-03101
Thermostat
[08.1995 - 09.1997] 2RZE..RCH1#,2# *WAX 82-95 |
90916-03101 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03120 Thermostat[08.1995 - 09.1997] 2RZE..RCH1#,2# *WAX 82-95 |
90916-03120 |
from US $24.73 |
||
|
16331A
|
16331A
90916-03120 Thermostat[09.1997 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S *WAX 82-95 |
90916-03120 |
from US $24.73 |
||
|
16341
|
16341
16341-75010 Gasket, Water Outlet[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16341-75010 |
US $4.66 |
||
|
16361
|
16361
16361-38010 Fan[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16361-38010 |
from US $79.42 |
||
|
16381
|
16381
16381-75010 Bar, Fan Belt Adjusting[08.1995 - 04.1997] 2RZE..RCH1#,2# |
16381-75010 |
US $28.97 |
||
|
16381
|
16381
16381-75040 Bar, Fan Belt Adjusting[04.1997 - 08.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16381-75040 |
US $31.74 |
||
| replacement | |||||
|
16381
|
16381
16381-75050 Bar, Fan Belt Adjusting[04.1997 - 08.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16381-75050 |
US $30.58 |
||
|
16385
|
16385
16385-71010 Slider, Fan Belt Adjusting[08.1995 - 04.1997] 2RZE..RCH1#,2# |
16385-71010 |
US $12.23 |
||
|
16385
|
16385
16385-75030 Slider, Fan Belt Adjusting[04.1997 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16385-75030 |
US $14.33 |
||
|
16400
|
16400
16400-75140 Radiator Assy[08.1995 - 07.1999] 2RZE..RCH12..ARL |
16400-75140 |
US $611.52 |
||
|
16470
|
16470
16470-54290 Tank Assy, Radiator Reserve[08.1995 - 07.1999] 2L#..LXH1#,2#; 2RZE,3RZFE..RCH1#,2# |
16470-54290 |
US $74.26 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1995 - 07.1999] 2L#..LXH1#,2# *H,L=450; 2RZE,3RZFE..RCH1#,2# *H,L=450 |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90467-11085 |
from US $0.72 |
||
|
16470R
|
16470R
16472-54290
Hose, No.2(For Radiator Reserve Tank)
[08.1995 - 07.1997] 2RZE..RCH1#,2#; 2L#..LXH1#,2# |
16472-54290 |
— | ||
|
16470R
|
16470R
16477-54290
Hose, No.2(For Radiator Reserve Tank)
[07.1997 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16477-54290 |
— | ||
|
16471
|
16471
16405-54260
Cap Sub-Assy, Reserve Tank
[08.1995 - 07.1999] 2L#..LXH1#,2#; 2RZE,3RZFE..RCH1#,2# |
16405-54260 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-54261
Cap Sub-Assy, Reserve Tank
[08.1995 - 07.1999] 2L#..LXH1#,2#; 2RZE,3RZFE..RCH1#,2# |
16405-54261 |
— | ||
|
16474
|
16474
16474-54290 Cap(For Radiator Reserve Tank Drain)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16474-54290 |
US $3.20 |
||
|
16474A
|
16474A
90467-09173 Clamp Or Clip(For Radiator Reserve Tank Drain Cap)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90467-09173 |
US $0.87 |
||
|
16533
|
16533
16505-54050 Support, Radiator, Upper[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16505-54050 |
US $12.08 |
||
|
16571
|
16571
16571-75060 Hose, Radiator, Inlet[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16571-75060 |
US $23.94 |
||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90467-37003 |
from US $4.56 |
||
|
16572
|
16572
16572-75060 Hose, Radiator, OutletRADIATOR, OUTLET [08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16572-75060 |
US $26.50 |
||
|
16572A
|
16572A
90467-37001
Clip(For Water Inlet Hose)
[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90467-37001 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90467-37003 |
from US $4.56 |
||
|
16581
|
16581
16581-54060 Clamp, Hose(For Water Hose)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16581-54060 |
US $5.68 |
||
|
16584
|
16584
16584-54010 Insulator, Radiator Mounting[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
16584-54010 |
from US $5.62 |
||
|
16711
|
16711
16711-75040 Shroud, Fan[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
16711-75040 |
from US $130.14 |
||
|
16712
|
16712
16712-75020 Shroud, Fan, No.2FAN, NO.2 [08.1995 - 01.1997] 2RZE..RCH1# |
16712-75020 |
US $55.18 |
||
| replacement | |||||
|
16712
|
16712
16712-75021 Shroud, Fan, No.2[08.1995 - 01.1997] 2RZE..RCH1# |
16712-75021 |
US $55.04 |
||
|
16712
|
16712
16712-75021 Shroud, Fan, No.2[01.1997 - 07.1999] 2RZE..RCH12,18,22,28 |
16712-75021 |
US $55.04 |
||
|
9011908A25
|
9011908A25
90119-08A25 BOLT WWASHER |
90119-08A25 |
US $2.48 |
||
|
1619271010
|
1619271010
16192-71010 BOLT |
16192-71010 |
US $6.45 |
||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.92 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9012208012
|
9012208012
90122-08012 BOLT |
90122-08012 |
US $4.12 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.47 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017908240
|
9017908240
90179-08240 New Genuine Part |
90179-08240 |
US $2.33 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
9151160855
|
9151160855
91511-60855 New Genuine Part |
91511-60855 |
US $2.33 |
||
| replacement | |||||
|
9151160855
|
9151160855
91511-B0855 BOLT FLANGE |
91511-B0855 |
US $3.05 |
||
|
9151260835
|
9151260835
91512-60835 Bolt (for Pawl Stopper Plate) |
91512-60835 |
US $1.46 |
||
| replacement | |||||
|
9151260835
|
9151260835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.40 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9212260828
|
9212260828
92122-60828 New Genuine Part |
92122-60828 |
US $3.05 |
||
