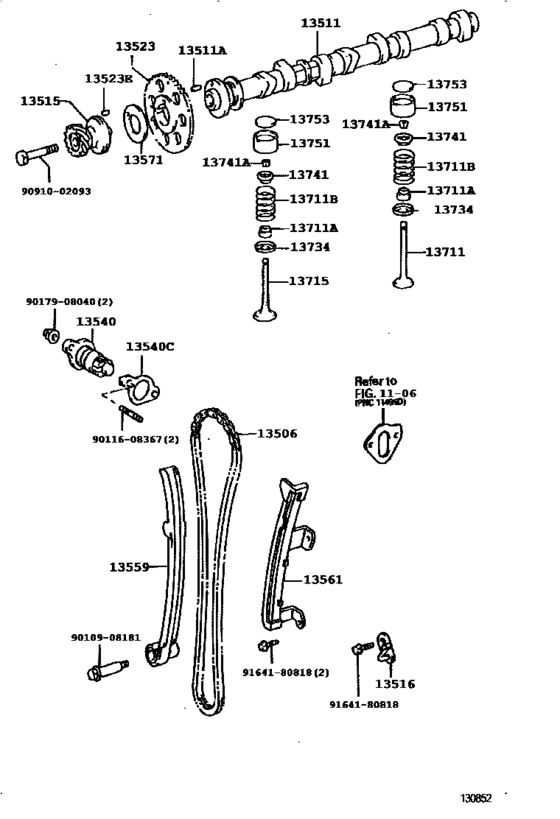

Camshaft & Valve ([08.1995 - ] (9508- )2RZE) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13506
|
13506
13506-75010 Chain Sub-Assy[07.1999 - 11.2003] 2RZE..RCH12,22 |
13506-75010 |
from US $100.21 |
||
|
13511
|
13511
13501-75010 Camshaft[07.1999 - 11.2003] 2RZE..RCH12,22 |
13501-75010 |
US $476.11 |
||
|
13511A
|
13511A
90250-06068 Pin, Straight[07.1999 - 11.2003] 2RZE..RCH12,22 L=11,OD=6 |
90250-06068 |
from US $0.99 |
||
|
13515
|
13515
13515-75010 Gear, Distributor Drive[07.1999 - 11.2003] 2RZE..RCH12,22 |
13515-75010 |
US $37.39 |
||
|
13516
|
13516
13516-75020 Jet, Oil[07.1999 - 11.2003] 2RZE..RCH12,22 |
13516-75020 |
US $10.48 |
||
|
13523
|
13523
13523-75010 Gear Or Sprocket, Camshaft Timing[07.1999 -] 2RZE,3RZFE..RCH1#,2# |
13523-75010 |
from US $25.56 |
||
|
13523E
|
13523E
90250-05021 Pin, Straight[07.1999 - 11.2003] 2RZE..RCH12,22 |
90250-05021 |
from US $0.68 |
||
|
13540
|
13540
13540-75020 Tensioner Assy, Chain, No.1[07.1999 - 05.2006] 2RZE,3RZFE..RCH1#,2# |
13540-75020 |
from US $28.94 |
||
|
13540C
|
13540C
13552-75010 Gasket(For Chain Tensioner)[07.1999 -] 2RZE,3RZFE..RCH1#,2# |
13552-75010 |
from US $2.44 |
||
|
13559
|
13559
13559-76010 Slipper, Chain Tensioner[07.1999 - 11.2003] 2RZE..RCH12,22 |
13559-76010 |
from US $30.26 |
||
|
13561
|
13561
13561-76020 Damper, Chain Vibration, No.1[07.1999 - 11.2003] 2RZE..RCH12,22 |
13561-76020 |
from US $44.03 |
||
|
13571
|
13571
13571-35010
Plate, Camshaft Thrust
[07.1999 - 11.2003] 2RZE..RCH12,22 |
13571-35010 |
— | ||
|
13711
|
13711
13711-75040 Valve, Intake[07.1999 - 11.2003] 2RZE..RCH12,22 |
13711-75040 |
from US $35.37 |
||
|
13711A
|
13711A
90913-02110 Seal Or Ring, O(For Valve Stem Oil)[07.1999 - 11.2003] 2RZE..RCH12,22 |
90913-02110 |
from US $4.84 |
||
| replacement | |||||
|
13711A
|
13711A
90913-02116 Seal Or Ring, O(For Valve Stem Oil)[07.1999 - 11.2003] 2RZE..RCH12,22 |
90913-02116 |
from US $6.30 |
||
|
13711B
|
13711B
90501-45033 Spring, Compression(For Inner)[07.1999 - 11.2003] 2RZE..RCH12,22 |
90501-45033 |
US $8.74 |
||
|
13715
|
13715
13715-75030 Valve, Exhaust[07.1999 - 11.2003] 2RZE..RCH12,22 |
13715-75030 |
from US $42.26 |
||
|
13715
|
13715
13715-75070 Valve, ExhaustEXHAUST [01.2002 - 11.2003] 2RZE..RCH12,22 W(LPG) |
13715-75070 |
US $72.36 |
||
|
13734
|
13734
13734-75010 Seat, Valve Spring[07.1999 - 11.2003] 2RZE..RCH12,22 |
13734-75010 |
US $5.77 |
||
|
13741
|
13741
13741-43010 Retainer, Valve Spring[07.1999 - 11.2003] 2RZE..RCH12,22 |
13741-43010 |
US $4.72 |
||
|
13741A
|
13741A
90913-03014 Lock, Valve Spring Retainer[07.1999 - 11.2003] 2RZE..RCH12,22 |
90913-03014 |
from US $1.38 |
||
|
13751
|
13751
13751-64011 Lifter, Valve[07.1999 - 11.2003] 2RZE..RCH12,22 |
13751-64011 |
from US $16.44 |
||
|
13753
|
13753
13753-65600 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.25 |
13753-65600 |
US $8.91 |
||
|
13753
|
13753
13753-65620 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.30 |
13753-65620 |
US $8.44 |
||
|
13753
|
13753
13753-65640 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.35 |
13753-65640 |
US $8.44 |
||
|
13753
|
13753
13753-65660 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.40 |
13753-65660 |
US $8.44 |
||
|
13753
|
13753
13753-65680 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.45 |
13753-65680 |
US $8.44 |
||
|
13753
|
13753
13753-65700 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.50 |
13753-65700 |
US $8.44 |
||
|
13753
|
13753
13753-65720 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.55 |
13753-65720 |
US $8.44 |
||
|
13753
|
13753
13753-65740 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.60 |
13753-65740 |
US $8.44 |
||
|
13753
|
13753
13753-65760 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.65 |
13753-65760 |
US $8.21 |
||
|
13753
|
13753
13753-65780 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.70 |
13753-65780 |
US $8.21 |
||
|
13753
|
13753
13753-65800 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.75 |
13753-65800 |
US $8.21 |
||
|
13753
|
13753
13753-65820 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.80 |
13753-65820 |
US $8.21 |
||
|
13753
|
13753
13753-65840 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.85 |
13753-65840 |
US $8.21 |
||
|
13753
|
13753
13753-65860 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.90 |
13753-65860 |
US $8.21 |
||
|
13753
|
13753
13753-65880 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=2.95 |
13753-65880 |
US $8.21 |
||
|
13753
|
13753
13753-6B010 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.00 |
13753-6B010 |
US $8.21 |
||
|
13753
|
13753
13753-6B030 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.05 |
13753-6B030 |
US $8.44 |
||
|
13753
|
13753
13753-6B050 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.10 |
13753-6B050 |
US $8.44 |
||
|
13753
|
13753
13753-6B070 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.15 |
13753-6B070 |
US $8.44 |
||
|
13753
|
13753
13753-6B090 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.20 |
13753-6B090 |
US $8.44 |
||
|
13753
|
13753
13753-6B110 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.25 |
13753-6B110 |
US $8.44 |
||
|
13753
|
13753
13753-6B130 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.30 |
13753-6B130 |
US $8.44 |
||
|
13753
|
13753
13753-6B150 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.35 |
13753-6B150 |
US $8.44 |
||
|
13753
|
13753
13753-6B170 Shim, Valve Adjusting[07.1999 - 11.2003] 2RZE..RCH12,22 T=3.40 |
13753-6B170 |
US $8.44 |
||
|
9010908181
|
9010908181
90109-08181 BOLT |
90109-08181 |
from US $6.20 |
||
|
9011608367
|
9011608367
90116-08367 New Genuine Part |
90116-08367 |
US $2.04 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9091002093
|
9091002093
90910-02093 Bolt |
90910-02093 |
US $3.85 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
