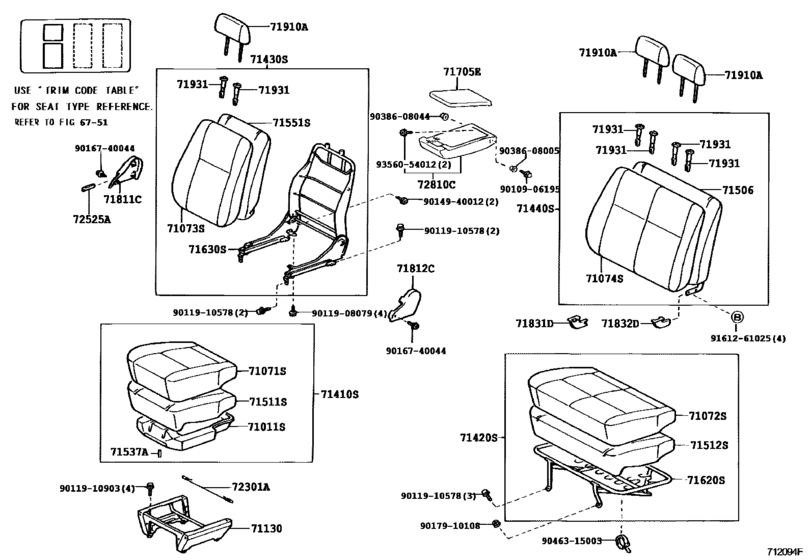

Seat & Seat Track ([08.1995 - 08.2006] SEPARATE SEAT (1+2 TYPE) (9508-0608)RHD) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-26040 Frame Sub-Assy, Front Seat Cushion, Rh[07.1999 - 11.2003] RCH12,22 |
71011-26040 |
US $131.04 |
||
|
71071S
|
71071S
71071-26690-B0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [07.1999 - 08.2001] LXH12,22,RCH12,13,22..RHD SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71071-26690-B0 |
US $331.97 |
||
|
71071S
|
71071S
71071-2F050-B0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [08.2001 - 11.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71071-2F050-B0 |
US $331.97 |
||
|
71072S
|
71072S
71071-26730-B0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [07.1999 - 08.2001] LXH12,22,RCH12,13,22..RHD SEAT = TYPE C OR TYPE D-*104 & W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1# |
71071-26730-B0 |
US $331.97 |
||
|
71072S
|
71072S
71071-2F070-B0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [08.2001 - 11.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71071-2F070-B0 |
US $331.97 |
||
|
71072S
|
71072S
71072-26730-B0 Cover, Front Seat Cushion, Lh(For Separate Type)FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) [08.2001 - 11.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1# |
71072-26730-B0 |
US $460.10 |
||
|
71072S
|
71072S
71072-26760-B0 Cover, Front Seat Cushion, Lh(For Separate Type)FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) [07.1999 - 08.2001] LXH12,22,RCH12,13,22..RHD SEAT = TYPE C OR TYPE D-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1# |
71072-26760-B0 |
US $331.97 |
||
|
71073S
|
71073S
71027-26020-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [08.2001 - 11.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71027-26020-B0 |
US $432.43 |
||
|
71073S
|
71073S
71027-26030-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [08.2001 - 11.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
71027-26030-B0 |
US $432.43 |
||
|
71073S
|
71073S
71073-26780-B1 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 08.2001] LXH12,22,RCH12,13,22,23..02S,09S SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
71073-26780-B1 |
US $430.98 |
||
|
71073S
|
71073S
71073-26790-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 08.2001] RCH13,23..DX;LXH12,22,RCH12,22..RHD SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1#; RCH13,23..STD;LXH1#,2#,RCH19,29..LHD..(DX,STD) SEAT = TYPE C-*104 & W(SEPARATE SEAT(1+1 TYPE) & ARMREST),BLUISH GRAY,TRIM1# |
71073-26790-B0 |
US $430.98 |
||
|
71074S
|
71074S
70169-26100-B0 Cover, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [08.2001 - 11.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1# |
70169-26100-B0 |
US $575.12 |
||
|
71074S
|
71074S
71027-26020-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [08.2001 - 11.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71027-26020-B0 |
US $432.43 |
||
|
71074S
|
71074S
71073-26780-B1 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 08.2001] LXH12,22,RCH12,13,22,23..02S,09S SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
71073-26780-B1 |
US $430.98 |
||
|
71074S
|
71074S
71073-26860-B0
Cover, Front Seat Back, Rh(For Separate Type)
[07.1999 - 08.2001] LXH12,22,RCH12,13,22..RHD SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71073-26860-B0 |
— | ||
|
71074S
|
71074S
71074-26680-B0
Cover, Front Seat Back, Lh(For Separate Type)
[07.1999 - 08.2001] LXH1#,2#,RCH13,19,23,29..LHD..(DX,STD) SEAT = TYPE C-*104 & W(ARMREST),BLUISH GRAY,TRIM1#; LXH12,22,RCH12,13,22..RHD SEAT = TYPE C OR TYPE D-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
71074-26680-B0 |
— | ||
|
71130
|
71130
71130-26070 Leg Assy, Front Seat, RhFRONT SEAT, RH [07.1999 - 11.2003] RCH12,22 |
71130-26070 |
US $128.13 |
||
|
71410S
|
71410S
71410-2F060-B0
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.2001 - 08.2003] KLH12,22,RCH12,13,22..RHD ***,SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71410-2F060-B0 |
— | ||
|
71420S
|
71420S
71410-2F080-B0
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.2001 - 08.2003] RCH13..RHD BLUISH GRAY,TRIM1#; KLH12,22,RCH12,22..RHD ***,SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71410-2F080-B0 |
— | ||
|
71420S
|
71420S
71420-26880-B0
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.2001 - 08.2003] KLH12,22,RCH12,13,22..RHD ***,SEAT = TYPE C OR TYPE D-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1# |
71420-26880-B0 |
— | ||
|
71430S
|
71430S
71040-26110-B0
Back Assy, Front Seat, Rh(For Separate Type)
[07.1999 - 08.2001] RCH12,22 SEAT = TYPE D-*104,BLUISH GRAY,TRIM1# |
71040-26110-B0 |
— | ||
|
71430S
|
71430S
71040-26280-B0
Back Assy, Front Seat, Rh(For Separate Type)
[07.1999 - 08.2001] RCH12,22 SEAT = TYPE D-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
71040-26280-B0 |
— | ||
|
71430S
|
71430S
71040-26520-B1
Back Assy, Front Seat, Rh(For Separate Type)
[08.2001 - 08.2003] RCH12,22 SEAT = TYPE D-*104,BLUISH GRAY,TRIM1# |
71040-26520-B1 |
— | ||
|
71430S
|
71430S
71040-26530-B1
Back Assy, Front Seat, Rh(For Separate Type)
[08.2001 - 08.2003] RCH12,22 SEAT = TYPE D-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
71040-26530-B1 |
— | ||
|
71440S
|
71440S
71070-26050-B0
Back Assy, Front Seat, Lh(For Separate Type)
[07.1999 - 08.2001] RCH12,22 SEAT = TYPE D-*104,BLUISH GRAY,TRIM1# |
71070-26050-B0 |
— | ||
|
71440S
|
71440S
71070-26310-B0
Back Assy, Front Seat, Lh(For Separate Type)
[07.1999 - 08.2001] RCH12,22 SEAT = TYPE D-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
71070-26310-B0 |
— | ||
|
71440S
|
71440S
71070-26500-B1
Back Assy, Front Seat, Lh(For Separate Type)
[08.2001 - 08.2003] KLH12,RCH12,13..RHD ***,SEAT = TYPE C OR TYPE D-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1# |
71070-26500-B1 |
— | ||
|
71440S
|
71440S
71070-26540-B1
Back Assy, Front Seat, Lh(For Separate Type)
[08.2001 - 08.2003] RCH12,22 SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71070-26540-B1 |
— | ||
|
71506
|
71506
71505-26040 Pad Sub-Assy, Front Seat Back W/frame, RhFRONT SEAT BACK W/FRAME, RH [07.1999 - 08.2001] RCH12,13..RHD;LXH12..RHD..DX; LXH12..RHD..4DV..STD W(FABRIC SEAT); LXH12..RHD..5DV FABRIC SEAT |
71505-26040 |
US $463.01 |
||
|
71506
|
71506
71505-26080
Pad Sub-Assy, Front Seat Back W/frame, Lh
[08.2001 - 11.2003] RCH12 W(ARMREST) |
71505-26080 |
— | ||
|
71511S
|
71511S
71511-26140 Pad, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 |
71511-26140 |
US $203.84 |
||
|
71512S
|
71512S
71511-26060 Pad, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 PASSENGER SIDE, W(SEPARATE SEAT (1+2 TYPE)) |
71511-26060 |
US $257.71 |
||
|
71512S
|
71512S
71511-26150 Pad, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 W(SEPARATE SEAT(1+1 TYPE)) |
71511-26150 |
US $203.84 |
||
|
71537A
|
71537A
71537-26010 Protector, Front Seat Cushion[07.1999 - 08.2001] LXH12,22,RCH12,13,22..RHD; LXH1#,2#;RCH13..ATM W(SEPARATE SEAT),FRONT |
71537-26010 |
US $1.08 |
||
|
71537A
|
71537A
71695-26050 Protector, Front Seat Cushion[08.2001 - 11.2003] RCH12,22 SIDE |
71695-26050 |
US $2.04 |
||
|
71551S
|
71551S
71551-26220 Pad, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 |
71551-26220 |
US $147.06 |
||
| replacement | |||||
|
71551S
|
71551S
71552-26100 Pad, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 |
71552-26100 |
US $147.06 |
||
|
71551S
|
71551S
71551-26240 Pad, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 W(ARMREST) |
71551-26240 |
US $147.06 |
||
|
71620S
|
71620S
71620-26010 Spring Assy, Front Seat Cushion, Lh(For Separate Type)FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 |
71620-26010 |
US $302.85 |
||
|
71630S
|
71630S
71013-26220 Spring Assy, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 BACK FRAME |
71013-26220 |
US $120.85 |
||
|
71630S
|
71630S
71013-26230 Spring Assy, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 11.2003] RCH12,22 W(ARMREST),BACK FRAME |
71013-26230 |
US $131.04 |
||
|
71630S
|
71630S
72010-26020-C0 Spring Assy, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 08.2001] LXH12,22,RCH12,22..RHD W(VERTICAL ADJUSTER),BLACK,TRIM1#,ADJUSTER FRAME |
72010-26020-C0 |
US $774.59 |
||
|
71630S
|
71630S
72010-26040-C0 Spring Assy, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.1999 - 08.2001] RCH12,22 BLACK,TRIM1#,ADJUSTER FRAME; LXH12,22..RHD W(ARMREST & VERTICAL ADJUSTER),BLACK,TRIM1#,ADJUSTER FRAME |
72010-26040-C0 |
US $774.59 |
||
|
71705E
|
71705E
71705-26060-B0
Board Sub-Assy, Front Seat Back
[08.2001 - 11.2003] RCH12,22 BLUISH GRAY,TRIM1# |
71705-26060-B0 |
— | ||
|
71811C
|
71811C
71811-26120-B0 Cover, Reclining Adjuster, RhRECLINING ADJUSTER, RH [07.1999 - 08.2001] LXH12,22,RCH12,22..RHD BLUISH GRAY,TRIM1# |
71811-26120-B0 |
US $27.52 |
||
|
71812C
|
71812C
71812-26110-B0 Cover, Reclining Adjuster, LhRECLINING ADJUSTER, LH [07.1999 - 08.2001] LXH12,22,RCH12,22..RHD BLUISH GRAY,TRIM1# |
71812-26110-B0 |
US $39.17 |
||
|
71831D
|
71831D
71831-26010-B0 Cover, Front Seat Hinge, Rh[07.1999 - 08.2001] RCH13..ATM;LXH1#,2#,RCH12,22..DX,STD BLUISH GRAY,TRIM1# |
71831-26010-B0 |
US $9.61 |
||
|
71832D
|
71832D
71832-26010-B0 Cover, Front Seat Hinge, Lh[07.1999 - 08.2001] RCH13..ATM;LXH1#,2#,RCH12,22..DX,STD BLUISH GRAY,TRIM1# |
71832-26010-B0 |
US $9.61 |
||
|
71910A
|
71910A
71910-26320-B1 Headrest Assy, Front SeatFRONT SEAT [08.2001 - 11.2003] RCH12,22 SEAT = TYPE D-*104 & FOR 2 PERSONS,BLUISH GRAY,TRIM1# |
71910-26320-B1 |
US $189.28 |
||
| replacement | |||||
|
71910A
|
71910A
71910-26321-B2
Headrest Assy, Front Seat
[08.2001 - 11.2003] RCH12,22 SEAT = TYPE D-*104 & FOR 2 PERSONS,BLUISH GRAY,TRIM1# |
71910-26321-B2 |
— | ||
|
71910A
|
71910A
71910-26360-B0 Headrest Assy, Front SeatFRONT SEAT [07.1999 - 08.2001] LXH1#,2#,RCH13,19,23,29..LHD..(DX,STD) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#; LXH12,22,RCH12,13,22..RHD SEAT = TYPE C OR TYPE D-*104,BLUISH GRAY,TRIM1# |
71910-26360-B0 |
US $371.28 |
||
|
71931
|
71931
71930-28030-B0 Support, Front Seat Headrest[07.1999 - 08.2001] LXH12..GL;LXH12..RHD..DX;LXH2#,RCH1#,2#;LXH12..RHD..5DV W(LOCK),GRAY,TRIM1#; LXH12..LHD..DX;LXH12..4DV..STD;LXH1#..LHD..5DV W(LOCK),W(SEPARATE SEAT),GRAY,TRIM1# |
71930-28030-B0 |
US $18.20 |
||
| replacement | |||||
|
71931
|
71931
71930-28030-C0 Support, Front Seat Headrest[07.1999 - 08.2001] LXH12..GL;LXH12..RHD..DX;LXH2#,RCH1#,2#;LXH12..RHD..5DV W(LOCK),GRAY,TRIM1#; LXH12..LHD..DX;LXH12..4DV..STD;LXH1#..LHD..5DV W(LOCK),W(SEPARATE SEAT),GRAY,TRIM1# |
71930-28030-C0 |
US $18.05 |
||
|
71931
|
71931
71930-28030-B9 Support, Front Seat Headrest[08.2001 - 11.2003] RCH12,22 W(LOCK),W(SEPARATE SEAT),SHADOW GRAY,TRIM1# |
71930-28030-B9 |
US $14.85 |
||
|
71931
|
71931
71931-28030-B0
Support, Front Seat Headrest
[07.1999 - 08.2001] LXH12..GL;LXH12..RHD..DX;LXH2#,RCH1#,2#;LXH12..RHD..5DV W/O(LOCK),GRAY,TRIM1#; LXH12..LHD..DX;LXH12..4DV..STD;LXH1#..LHD..5DV W/O(LOCK),W(SEPARATE SEAT),GRAY,TRIM1# |
71931-28030-B0 |
— | ||
| replacement | |||||
|
71931
|
71931
71931-28030-C0 Support, Front Seat Headrest (BLACK)[07.1999 - 08.2001] LXH12..GL;LXH12..RHD..DX;LXH2#,RCH1#,2#;LXH12..RHD..5DV W/O(LOCK),GRAY,TRIM1#; LXH12..LHD..DX;LXH12..4DV..STD;LXH1#..LHD..5DV W/O(LOCK),W(SEPARATE SEAT),GRAY,TRIM1# |
71931-28030-C0 |
US $14.50 |
||
|
71931
|
71931
71931-28030-B9 Support, Front Seat Headrest[08.2001 - 11.2003] RCH12,22 W/O(LOCK),W(SEPARATE SEAT),SHADOW GRAY,TRIM1# |
71931-28030-B9 |
US $11.21 |
||
| replacement | |||||
|
71931
|
71931
71931-28030-C0 Support, Front Seat Headrest (BLACK)[08.2001 - 11.2003] RCH12,22 W/O(LOCK),W(SEPARATE SEAT),SHADOW GRAY,TRIM1# |
71931-28030-C0 |
US $14.50 |
||
|
72301A
|
72301A
72301-26020 Wire Sub-Assy, Seat Track Equalizing, RhSEAT TRACK EQUALIZING, RH [07.1999 - 11.2003] RCH12,22 |
72301-26020 |
US $3.93 |
||
|
72525A
|
72525A
72525-26060-B1 Handle, Reclining Adjuster Release, RhRECLINING ADJUSTER RELEASE, RH [07.1999 - 08.2001] RCH13..ATM;LXH1#,2#,RCH12,22 BLUISH GRAY,TRIM1# |
72525-26060-B1 |
US $11.21 |
||
|
72810C
|
72810C
72810-26020-B0 Armrest Assy, Front Seat, CenterFRONT SEAT, CENTER [08.2001 - 11.2003] RCH12,22 BLUISH GRAY,TRIM1# |
72810-26020-B0 |
US $607.15 |
||
| replacement | |||||
|
72810C
|
72810C
72810-26021-B1 Armrest Assy, Front Seat, CenterFRONT SEAT, CENTER [08.2001 - 11.2003] RCH12,22 BLUISH GRAY,TRIM1# |
72810-26021-B1 |
US $524.16 |
||
|
9010906195
|
9010906195
90109-06195 New Genuine Part |
90109-06195 |
US $1.16 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9011910578
|
9011910578
90119-10578 Bolt, Hexagon(For Rear Caliper) |
90119-10578 |
from US $1.19 |
||
|
9011910903
|
9011910903
90119-10903 New Genuine Part |
90119-10903 |
US $2.33 |
||
|
9014940012
|
9014940012
90149-40012 SCREW |
90149-40012 |
from US $0.76 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.69 |
||
|
9038608005
|
9038608005
90386-08005 Bush (For Rear Seat Center Armrest) |
90386-08005 |
US $0.87 |
||
|
9038608044
|
9038608044
90386-08044 BUSH |
90386-08044 |
from US $1.97 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.87 |
||
|
9161261025
|
9161261025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
