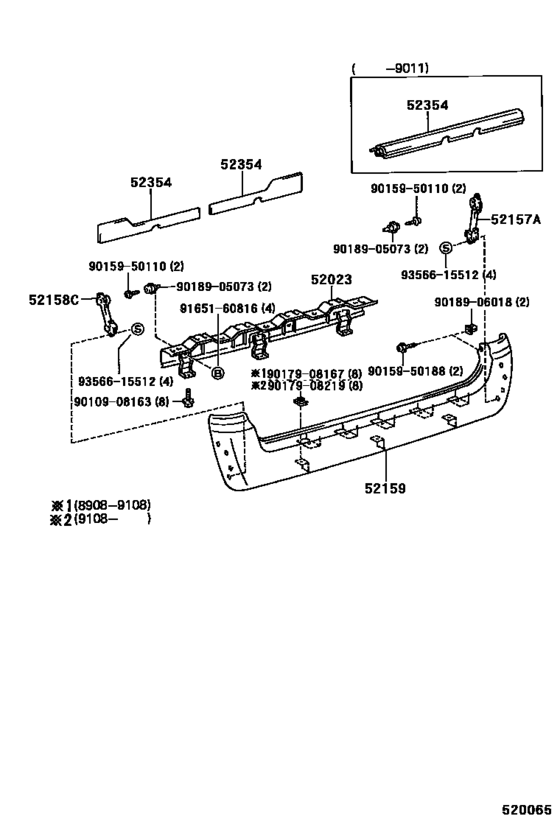

Rear Bumper & Bumper Stay ([08.1989 - 08.1993] (8908-9308)CTM,GCGE,GCGN,SCL,SCM,SCMM ; (9205-93 08)LH120..DX) Diagram Toyota HIACE
- Year
- 1989 - 1993
- Sales region
- Japan
- Frame
- RZH100
- grade
- SCL
- body
- WG
- Roof
- MRF
- ENGINE
- 1RZE
- Model
- HIACE/REGIUSACE
- From
- 08.1989
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 07S
- Fuel Induction
- EFI
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-95J01 Reinforcement Sub-Assy, Rear Bumper[08.1989 - 05.1992] LH100,107,RZH100,101..MRF,SMRF |
52023-95J01 |
US $259.20 |
||
|
52157A
|
52157A
52157-95J00 Support, Rear Bumper Side, No.2 Rh[08.1989 - 05.1992] LH10#,11#,123,125,129,140,RZH10#,11#,12# ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟ ﾘﾔﾊﾞﾝﾊﾟ) |
52157-95J00 |
from US $8.15 |
||
|
52158C
|
52158C
52158-95J00 Support, Rear Bumper Side, No.2 Lh[08.1989 - 05.1992] LH10#,11#,123,125,129,140,RZH10#,11#,12# |
52158-95J00 |
from US $7.76 |
||
|
52159
|
52159
52159-95J27-06 Cover, Rear Bumper[08.1989 - 10.1990] LH100,RZH100,101..SCL ｱﾘ(ﾊﾞﾂｸｿﾅ-),LIGHT BLOWN M.,22N |
52159-95J27-06 |
US $417.87 |
||
| replacement | |||||
|
52159
|
52159
C2226-95B01 Cover, Rear Bumper[08.1989 - 10.1990] LH100,RZH100,101..SCL ｱﾘ(ﾊﾞﾂｸｿﾅ-),LIGHT BLOWN M.,22N |
C2226-95B01 |
US $253.34 |
||
|
52159
|
52159
52159-95J28-06 Cover, Rear Bumper[08.1989 - 10.1990] LH100,RZH100,101..SCL LIGHT BROWN M.,22N |
52159-95J28-06 |
US $429.52 |
||
| replacement | |||||
|
52159
|
52159
52159-95J26 Cover, Rear Bumper (Black)[08.1989 - 10.1990] LH100,RZH100,101..SCL LIGHT BROWN M.,22N |
52159-95J26 |
from US $290.67 |
||
|
52354
|
52354
52353-26010 Shutter, Rear Cross To Bumper[11.1990 - 12.1990] LH100,107,RZH100,101..MRF,SMRF 右側 |
52353-26010 |
US $8.01 |
||
| replacement | |||||
|
52354
|
52354
52353-26020 Shutter, Rear Cross To Bumper[11.1990 - 12.1990] LH100,107,RZH100,101..MRF,SMRF 右側 |
52353-26020 |
US $7.29 |
||
|
52354
|
52354
52353-26020 Shutter, Rear Cross To Bumper[12.1990 - 05.1992] LH100,107,RZH100,101..MRF,SMRF 右側 |
52353-26020 |
US $7.29 |
||
|
52354
|
52354
52354-26010 Shutter, Rear Cross To Bumper[11.1990 - 12.1990] LH100,107,RZH100,101..MRF,SMRF 左側 |
52354-26010 |
US $8.01 |
||
| replacement | |||||
|
52354
|
52354
52354-26021 Shutter, Rear Cross To Bumper[11.1990 - 12.1990] LH100,107,RZH100,101..MRF,SMRF 左側 |
52354-26021 |
US $10.39 |
||
|
52354
|
52354
52354-26020 Shutter, Rear Cross To Bumper[12.1990 - 05.1992] LH100,107,RZH100,101..MRF,SMRF 左側 |
52354-26020 |
US $7.72 |
||
| replacement | |||||
|
52354
|
52354
52354-26021 Shutter, Rear Cross To Bumper[12.1990 - 05.1992] LH100,107,RZH100,101..MRF,SMRF 左側 |
52354-26021 |
US $10.39 |
||
|
52354
|
52354
52354-95J04 Shutter, Rear Cross To Bumper[08.1989 - 11.1990] LH100,107,RZH100,101..MRF,SMRF |
52354-95J04 |
US $52.85 |
||
|
9010908163
|
9010908163
90109-08163 BOLT |
90109-08163 |
US $2.87 |
||
|
9015950110
|
9015950110
90159-50110 SCREW |
90159-50110 |
US $2.87 |
||
|
9015950188
|
9015950188
90159-50188 New Genuine Part |
90159-50188 |
US $2.15 |
||
|
9017908167
|
9017908167
90179-08167
New Genuine Part
|
90179-08167 |
— | ||
|
9017908219
|
9017908219
90179-08219 NUT |
90179-08219 |
US $3.58 |
||
|
9018905073
|
9018905073
90189-05073 CLIP |
90189-05073 |
US $2.33 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9356615512
|
9356615512
93566-15512
New Genuine Part
|
93566-15512 |
— | ||
| replacement | |||||
|
9356615512
|
9356615512
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
