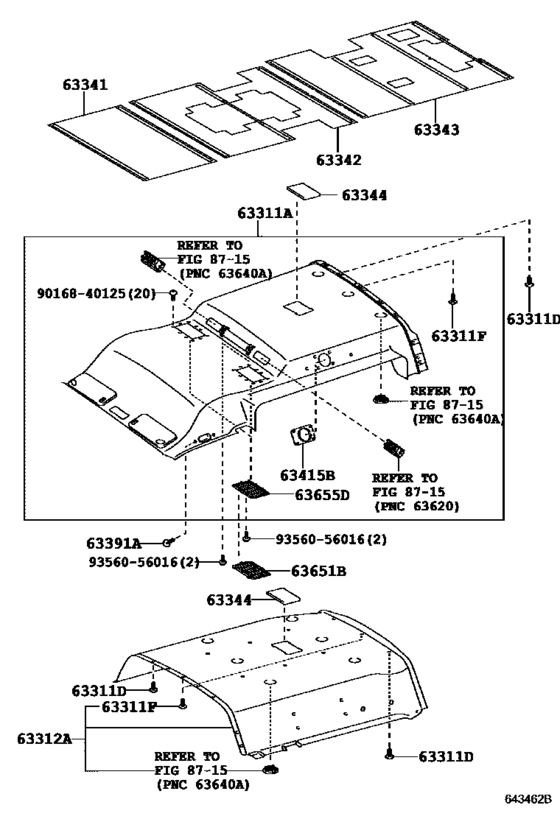

Roof Headlining & Silencer Pad ([12.2013 - ] ｺｳｷｮｳ ﾉﾘｱｲ ﾀｸｼｰ (1312- )TRH224..IV5) Diagram Toyota HIACE
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- TRH224
- grade
- GC
- body
- WG
- Roof
- HRF
- ENGINE
- 2TRFE
- Model
- HIACE/REGIUSACE
- From
- 12.2013
- To
- 01.2015
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 02S
- Building Condition
- IV5
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63311A
|
63311A
63301-26181-B0 Headlining, Roof No.1[12.2013 - 05.2016] TRH224..IV5 バックモニタ（リヤテレビジョンカメラ）−有り,LIGHT GRAY,TRIM1# |
63301-26181-B0 |
US $1,303.12 |
||
|
63311A
|
63311A
63310-26E51-B0 Headlining, Roof No.1[12.2013 - 05.2016] TRH224..IV5 LIGHT GRAY,TRIM1# |
63310-26E51-B0 |
US $1,303.12 |
||
|
63311D
|
63311D
63399-26050-B0 Clip[12.2013 -] KDH223,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
63399-26050-B0 |
from US $1.15 |
||
|
63311F
|
63311F
63399-26050-B0 Clip[12.2013 -] KDH201..SRF;KDH201..V2..HRF;KDH201..V1..HRF..4FC;KDH206,211,22#,TRH200,21#,22#..CB U,IV5,IV6 LT.GRAY,TRIM1#; KDH20#,TRH200..V1..SP 冷凍車＆寒冷地仕様,LT.GRAY,TRIM1#; KDH20#,TRH200..V1..SP 冷凍車＆寒冷地仕様＆バックモニタ（リヤテレビジョンカメラ）−有り,LT.GRAY,TRIM1#; KDH20#,TRH200.. |
63399-26050-B0 |
from US $1.15 |
||
|
63312A
|
63312A
63320-26500-B0 Headlining, Roof, No.2[12.2013 - 05.2016] TRH224..IV5 LT.GRAY,TRIM1# |
63320-26500-B0 |
US $1,001.73 |
||
|
63341
|
63341
63341-26200 Pad, Roof Silencer, No.1[12.2013 -] KDH223,TRH223,224,228,229 |
63341-26200 |
US $23.86 |
||
|
63342
|
63342
63342-26150 Pad, Roof Silencer, No.2[12.2013 - 05.2016] TRH224..IV5 |
63342-26150 |
US $18.93 |
||
|
63343
|
63343
63343-26120 Pad, Roof Silencer, No.3[12.2013 - 05.2016] TRH224..IV5 |
63343-26120 |
US $29.56 |
||
|
63344
|
63344
63344-26050 Pad, Roof Silencer, No.4[12.2013 -] KDH223,TRH223,224,228,229..GC,GL |
63344-26050 |
from US $9.46 |
||
|
63391A
|
63391A
90467-06177-B5 Clip(For Front Pillar Garnish)[12.2013 -] KDH201..V2..HRF;KDH201..V1..HRF..4FC;KDH206,22#,TRH200,22#..HRF..(CBU,IV5,IV6) LT.GRAY,TRIM1#; KDH20#,TRH200..SRF..5D..DX 寒冷地仕様＆エアコン−デュアルエアコン,LT.GRAY,TRIM1#; KDH20#,TRH200..SRF..5D..DX 寒冷地仕様＆エアコン−デュアルエアコン＆バックモニタ（リヤテレビジョンカメラ）−有 り,LT.GRAY,TRIM1# |
90467-06177-B5 |
US $0.90 |
||
|
63415B
|
63415B
63415-26080-B0 Grille, Roof Speaker, Rh[12.2013 -] KDH223,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
63415-26080-B0 |
US $16.16 |
||
|
63651B
|
63651B
63650-26010-B0 Net, Air Intake[12.2013 -] KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,21#,22#..(02S,05S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#; KDH201..V2..HRF;KDH201..SRF..SG..DX;KDH206,TRH200..SG..DX..CBU;KDH201,221,TRH221,2 26..V1..HRF..(4FC,6FC)..CBU エアコン−デュアルエアコン,LT.GRAY,TRIM1# |
63650-26010-B0 |
from US $46.05 |
||
|
63655D
|
63655D
63655-26030-B0 Cover, Air Intake[12.2013 -] KDH223,TRH22#..(02S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#,右側; KDH221,TRH221,226..CBU 寒冷地仕様＆エアコン−デュアルエアコン,LT.GRAY,TRIM1#,右側; KDH221,TRH221,226..CBU 寒冷地仕様＆エアコン−デュアルエアコン＆バックモニタ（リヤテレビジョンカメラ）−有 り,LT.GRAY,TRIM1#,右側; KDH221,TRH221,226..CBU エアコン−デュアル |
63655-26030-B0 |
US $23.72 |
||
|
63655D
|
63655D
63655-26040-B0 Cover, Air Intake[12.2013 -] KDH223,TRH22#..(02S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#,左側; KDH221,TRH221,226..CBU 寒冷地仕様＆エアコン−デュアルエアコン,LT.GRAY,TRIM1#,左側; KDH221,TRH221,226..CBU 寒冷地仕様＆エアコン−デュアルエアコン＆バックモニタ（リヤテレビジョンカメラ）−有 り,LT.GRAY,TRIM1#,左側; KDH221,TRH221,226..CBU エアコン−デュアル |
63655-26040-B0 |
US $23.72 |
||
|
9016840125
|
9016840125
90168-40125 SCREW TAPPING |
90168-40125 |
US $1.08 |
||
|
9356056016
|
9356056016
93560-56016 SCREW |
93560-56016 |
US $2.15 |
