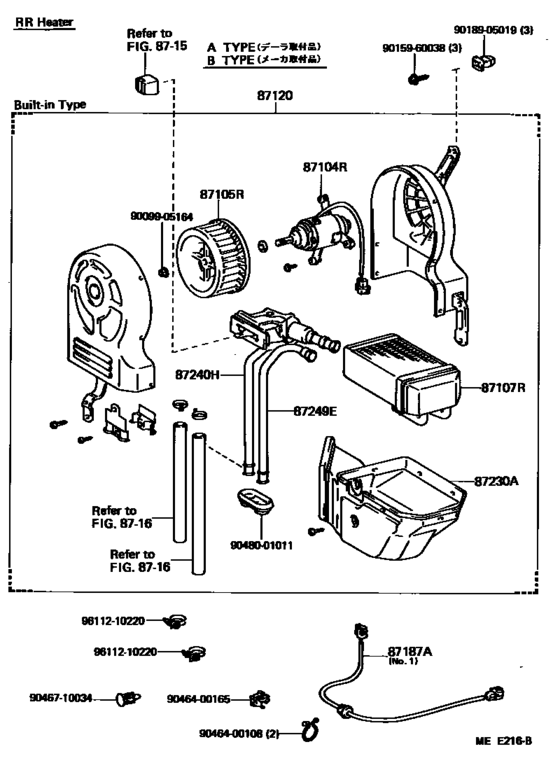

Heating & Air Conditioning - Heater Unit & Blower ([01.1984 - ] (8401- )V5D ; (8401- )V4D..WT) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH50V
- grade
- GL
- body
- V
- Roof
- SRF
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.40 |
||
|
9018905019
|
9018905019
90189-05019 New Genuine Part |
90189-05019 |
US $1.97 |
||
|
9046400108
|
9046400108
90464-00108 New Genuine Part |
90464-00108 |
from US $2.43 |
||
|
9046400165
|
9046400165
90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable) |
90464-00165 |
US $1.40 |
||
|
9046710034
|
9046710034
90467-10034 Clip(For Back Panel Trim) |
90467-10034 |
US $1.89 |
||
| replacement | |||||
|
9046710034
|
9046710034
90467-10034-C0 Clip(For Step Plate) |
90467-10034-C0 |
US $1.61 |
||
|
9048001011
|
9048001011
90480-01011
Grommet, Heater Hose
|
90480-01011 |
— | ||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
