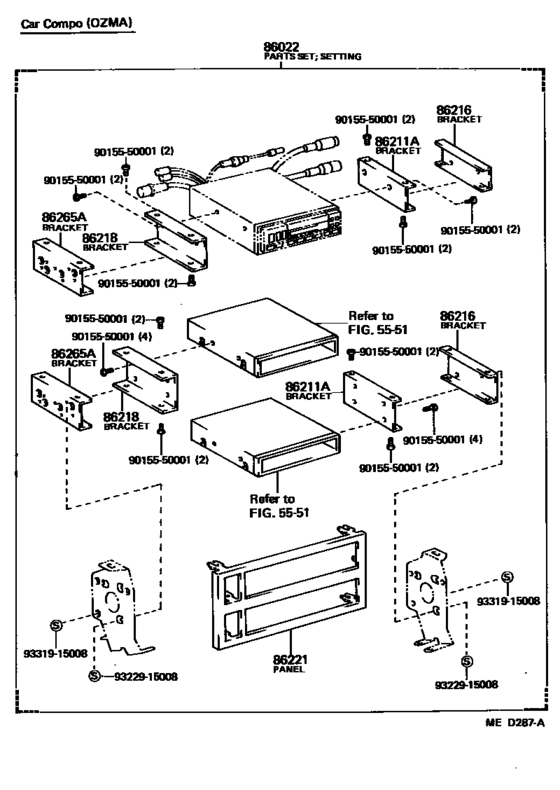

Radio Receiver & Amplifier & Condenser ([12.1982 - ] (8212- )MRF..07S,08S) Diagram Toyota HIACE
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- YH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 3YU
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86022
|
86022
86022-29085
Parts Set, Tape Player Setting
[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
86022-29085 |
— | ||
|
86211A
|
86211A
86211-95J02
Bracket, Stereo Component, No.1
[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
86211-95J02 |
— | ||
|
86216
|
86216
86211-95J03
Bracket, Stereo Component, No.2
[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
86211-95J03 |
— | ||
|
86218
|
86218
86211-95J04
Bracket, Stereo Component, No.3
[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
86211-95J04 |
— | ||
|
86221
|
86221
86220-95J00 Panel, Stereo Component[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
86220-95J00 |
US $46.01 |
||
|
86265A
|
86265A
86211-95J05
Bracket, Stereo Component, No.4
[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
86211-95J05 |
— | ||
|
9015550001
|
9015550001
90155-50001
New Genuine Part
|
90155-50001 |
— | ||
|
9322915008
|
9322915008
93229-15008 SCREW |
93229-15008 |
US $1.43 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
