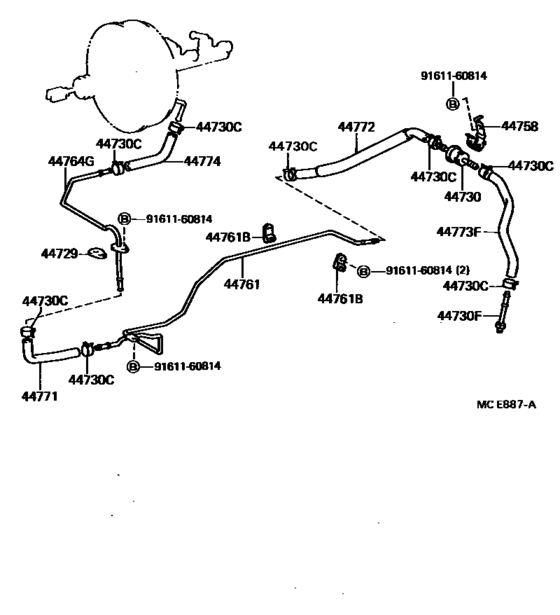

Brake Booster & Vacuum Tube ([08.1987 - ] (8708- )YH50,51,52,6#,71) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44729
|
44729
44729-26020 Gasket, Vacuum Tube[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
44729-26020 |
US $4.80 |
||
|
44730
|
44730
44730-20010 Valve Assy, Vacuum Check(For Brake)[08.1987 - 08.1989] YH50,51,52,6#,71 |
44730-20010 |
US $32.50 |
||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
96133-41500 |
from US $2.32 |
||
|
44730F
|
44730F
90404-51031 Union, Vacuum Hose(For Manifold Side)[08.1987 - 08.1989] YH5#,6#,71 |
90404-51031 |
US $8.21 |
||
|
44758
|
44758
44758-26020 Bracket, Vacuum Check Valve[08.1987 - 08.1989] YH50,51,52,6#,71 |
44758-26020 |
US $7.86 |
||
|
44761
|
44761
44761-26110 Tube, Intake Manifold Or Vacuum Pump To Connector[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..CBR,DSL |
44761-26110 |
US $42.52 |
||
|
44761B
|
44761B
90461-10221
Clamp, Conneector Tube
[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71 |
90461-10221 |
— | ||
|
44764G
|
44764G
44764-26050 Tube, Booster Vacuum[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
44764-26050 |
US $25.19 |
||
|
44771
|
44771
44771-26010 Hose, Vacuum Tube Connector[08.1987 - 08.1989] YH5#,6#,71 |
44771-26010 |
US $14.41 |
||
|
44772
|
44772
44772-26040 Hose, Vacuum Pump[08.1987 - 08.1989] YH50,51,52,6#,71 |
44772-26040 |
US $25.77 |
||
|
44773F
|
44773F
44773-26050 Hose, Vacuum, No.2[08.1987 - 08.1989] YH50,51,52,6#,71 |
44773-26050 |
US $35.38 |
||
|
44774
|
44774
44774-26120 Hose, Vacuum Tube Connector[08.1987 - 08.1989] YH51,57,61..WG |
44774-26120 |
US $14.41 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
