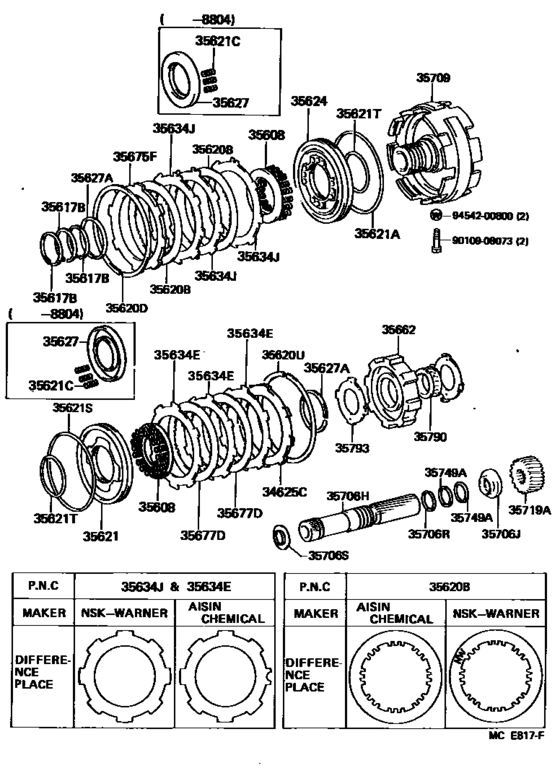

Center Support & Planetary Sun Gear (Atm) ([08.1987 - ] A44DL,A45DL (8708- )ATM..CBR,DSL) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34625C
|
34625C
34625-22010
Flange, Overdrive Brake, No.1
[08.1987 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) |
34625-22010 |
— | ||
| replacement | |||||
|
34625C
|
34625C
35676-22030
Flange, Overdrive Brake
[08.1987 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) |
35676-22030 |
— | ||
|
35608
|
35608
35608-20010
Spring Sub-Assy, 2Nd Brake Piston Return
[04.1988 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) フロント |
35608-20010 |
— | ||
|
35608
|
35608
35608-30020 Spring Sub-Assy, 2Nd Brake Piston Return[04.1988 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) リヤ |
35608-30020 |
US $15 |
||
|
35617B
|
35617B
35617-16010 Ring, Oil Seal (For Overdrive Case)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35617-16010 |
US $16.42 |
||
|
35620B
|
35620B
35677-30100 Disc, Clutch (For Brake)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35677-30100 |
US $39.31 |
||
|
35620D
|
35620D
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90521-99139 |
— | ||
|
35620U
|
35620U
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90521-99139 |
— | ||
|
35621
|
35621
35621-30010
Piston, Brake, No.1
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35621-30010 |
— | ||
|
35621A
|
35621A
90301-99192 Ring, O (For Overdrive Direct Clutch Piston)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90301-99192 |
US $14.34 |
||
|
35621C
|
35621C
90501-10671 Spring, Compression (For Overdrive Direct Clutch)[08.1987 - 04.1988] LH51,YH51,61..ATM..(CBR,TD) |
90501-10671 |
US $2.48 |
||
|
35621S
|
35621S
90301-99007 Ring, O (For Brake Piston Outer)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90301-99007 |
US $16.89 |
||
| replacement | |||||
|
35621S
|
35621S
90301-99107 Ring (For Rear Brake Piston Outer)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90301-99107 |
US $2.62 |
||
|
35621T
|
35621T
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90301-57188 |
US $11.29 |
||
| replacement | |||||
|
35621T
|
35621T
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90301-56007 |
US $3.05 |
||
|
35624
|
35624
35624-22010
Piston, Brake, No.1
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35624-22010 |
— | ||
|
35627
|
35627
35627-22010 Seat, Brake Return Spring[08.1987 - 04.1988] LH51,61,YH51,61..ATM |
35627-22010 |
US $7.13 |
||
|
35627A
|
35627A
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90520-52262 |
US $2.80 |
||
|
35634E
|
35634E
35648-30020 Plate, Clutch (For Rear Brake)[08.1987 - 08.1989] YH51,61..ATM |
35648-30020 |
US $22.13 |
||
|
35662
|
35662
35662-30010 Hub, Brake[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35662-30010 |
US $93.18 |
||
|
35675F
|
35675F
35675-22010
Flange, Overdrive Clutch
[08.1987 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) |
35675-22010 |
— | ||
| replacement | |||||
|
35675F
|
35675F
35675-22140
Flange, Overdrive Clutch
[08.1987 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) |
35675-22140 |
— | ||
|
35677D
|
35677D
35677-30020 Disc, Clutch (For Rear Brake)[08.1987 - 08.1989] YH51,61..ATM |
35677-30020 |
US $42.81 |
||
|
35706H
|
35706H
35706-30050 Gear Sub-Assy, Planetary Sun[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35706-30050 |
US $263.83 |
||
|
35706J
|
35706J
90374-21001
Race, Thrust Bearing (For Rear Planetary Ring Gear Front)
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90374-21001 |
— | ||
|
35706R
|
35706R
90520-34001
Ring, Shaft Snap (For Sun Gear Front)
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90520-34001 |
— | ||
|
35706S
|
35706S
35789-22030 Race, Thrust Bearing(For Overdrive)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35789-22030 |
US $8.21 |
||
|
35709
|
35709
35709-30051 Support Sub-Assy, Center[08.1987 - 08.1989] YH51,61..ATM |
35709-30051 |
US $206.05 |
||
|
35719A
|
35719A
35719-30050
Gear, Rear Planetary Sun
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35719-30050 |
— | ||
|
35749A
|
35749A
35749-22010 Ring, Sun Gear Shaft Oil Seal[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35749-22010 |
US $12.75 |
||
|
35790
|
35790
35791-30020 Clutch, 1Way, No.1(For Overdrive)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35791-30020 |
US $155.79 |
||
|
35793
|
35793
35793-22011
Retainer, 1 Way Clutch
[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
35793-22011 |
— | ||
|
9010908073
|
9010908073
90109-08073 Bolt (For Front Oil Pump Setting) |
90109-08073 |
US $3.93 |
||
|
9454200800
|
9454200800
94542-00800 New Genuine Part |
94542-00800 |
US $2.18 |
||
