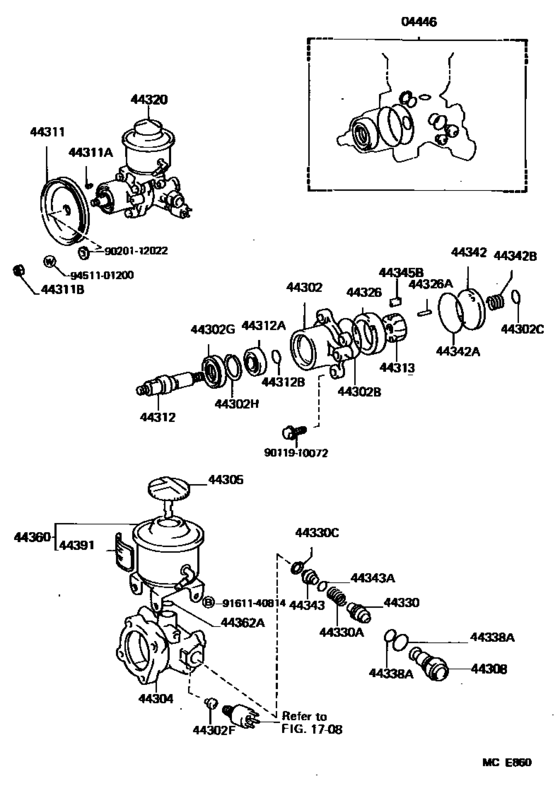

Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- )YH5#,6#,71) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- CTM
- body
- WG
- Roof
- SRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-14010
Gasket Kit, Power Steering Pump
[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
04446-14010 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-14040
Gasket Kit, Power Steering Pump
[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
04446-14040 |
— | ||
|
44302
|
44302
44302-14010 Housing Sub-Assy, Vane Pump, Front[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
44302-14010 |
US $208.21 |
||
|
44302B
|
44302B
90301-60001 Ring, O, No.1(For Vane Pump Housing)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90301-60001 |
US $4.89 |
||
|
44302C
|
44302C
96711-19016 Ring, O (For 5Th Shift Arm Shaft)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
96711-19016 |
US $5.38 |
||
|
44302F
|
44302F
90410-05035 Seat, Union(For Valve Body Housing)[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
90410-05035 |
US $2.89 |
||
|
44302G
|
44302G
90311-24001 Seal, Oil, No.1(For Vane Pump Housing)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90311-24001 |
from US $3.94 |
||
|
44302H
|
44302H
90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90521-44002 |
from US $3 |
||
|
44304
|
44304
44304-28012 Housing Sub-Assy, Vane Pump, Rear[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
44304-28012 |
US $474.66 |
||
|
44305
|
44305
44305-30020
Cap Sub-Assy, Vane Pump Oil Reservoir
[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
44305-30020 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
44305-22061 |
from US $15.88 |
||
|
44308
|
44308
44308-26011 Union Sub-Assy, Pressure Port[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
44308-26011 |
US $123.76 |
||
|
44311
|
44311
44311-12010 Pulley, Vane Pump[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
44311-12010 |
US $99.59 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90280-05008 |
US $3.94 |
||
|
44311B
|
44311B
90170-12011 Nut(For Vane Pump Pulley)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90170-12011 |
from US $1.27 |
||
|
44312
|
44312
44312-12010
Shaft, Vane Pump
[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
44312-12010 |
— | ||
|
44312A
|
44312A
90363-17004 Bearing(For Vane Pump Shaft)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90363-17004 |
US $11.71 |
||
|
44312B
|
44312B
90520-15001
Ring, Snap, No.1(For Vane Pump Shaft)
[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90520-15001 |
— | ||
| replacement | |||||
|
44312B
|
44312B
90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90520-15005 |
US $0.70 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク無し; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク無し |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク無し; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク無し |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク １; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク １ |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク １; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク １ |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク ２; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ２ |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク ２; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ２ |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク ３; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ３ |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク ３; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ３ |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク ４; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ４ |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[08.1987 - 10.1988] LH51,61,YH50,52,6#..03S マーク ４; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ４ |
44313-22080 |
US $103.38 |
||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[10.1988 - 08.1989] LH51,61,YH50,52,6#..03S マーク無し; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク無し |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[10.1988 - 08.1989] LH51,61,YH50,52,6#..03S マーク １; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク １ |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[10.1988 - 08.1989] LH51,61,YH50,52,6#..03S マーク ２; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ２ |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[10.1988 - 08.1989] LH51,61,YH50,52,6#..03S マーク ３; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ３ |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[10.1988 - 08.1989] LH51,61,YH50,52,6#..03S マーク ４; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ４ |
44313-22080 |
US $103.38 |
||
|
44320
|
44320
44320-26011 Pump Assy, Vane[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
44320-26011 |
US $1,109.47 |
||
|
44326
|
44326
44325-12010 Ring, Cam(For Vane Pump)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S マーク無し; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク無し |
44325-12010 |
US $109.78 |
||
|
44326
|
44326
44325-12020 Ring, Cam(For Vane Pump)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S マーク １; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク １ |
44325-12020 |
US $113.57 |
||
|
44326
|
44326
44325-12030 Ring, Cam(For Vane Pump)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S マーク ２; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ２ |
44325-12030 |
US $116.48 |
||
|
44326
|
44326
44325-12040 Ring, Cam(For Vane Pump)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S マーク ３; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ３ |
44325-12040 |
US $116.48 |
||
|
44326
|
44326
44325-12050 Ring, Cam(For Vane Pump)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S マーク ４; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL マーク ４ |
44325-12050 |
US $116.48 |
||
|
44326A
|
44326A
90250-05008 Pin, Straight(For Vane Pump Cam Ring)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 長さ＝２５，外径＝５．０; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 長さ＝２５，外径＝５．０ |
90250-05008 |
US $3.20 |
||
|
44330
|
44330
44330-14010
Valve Assy, Flow Control
[08.1987 - 08.1989] YH50,52,6#..03S マーク Ａ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ａ |
44330-14010 |
— | ||
| replacement | |||||
|
44330
|
44330
44330-35191 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ａ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ａ |
44330-35191 |
US $116.48 |
||
|
44330
|
44330
44330-14020 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｂ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｂ |
44330-14020 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35201 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｂ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｂ |
44330-35201 |
US $116.48 |
||
|
44330
|
44330
44330-14030 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｃ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｃ |
44330-14030 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35211 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｃ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｃ |
44330-35211 |
US $116.48 |
||
|
44330
|
44330
44330-14040 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｄ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｄ |
44330-14040 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35221 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｄ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｄ |
44330-35221 |
US $116.48 |
||
|
44330
|
44330
44330-14050 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｅ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｅ |
44330-14050 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35231 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｅ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｅ |
44330-35231 |
US $116.48 |
||
|
44330
|
44330
44330-14060 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｆ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｆ |
44330-14060 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35241 Valve Assy, Flow Control[08.1987 - 08.1989] YH50,52,6#..03S マーク Ｆ; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM マーク Ｆ |
44330-35241 |
US $116.48 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90501-12103 |
US $2.87 |
||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
96151-01700 |
US $3.30 |
||
|
44338A
|
44338A
90301-22001 Ring, O(For Pressure Port Union)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 外径＝２５．５，内径＝２２．５,OD=25.5,ID=22.5; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 外径＝２５．５，内径＝２２．５,OD=25.5,ID=22.5 |
90301-22001 |
US $10.57 |
||
|
44338A
|
44338A
96711-19014 O-Ring[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 外径＝１７．０，内径＝１３．０,OD=17.6,ID=13.8; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 外径＝１７．０，内径＝１３．０,OD=17.6,ID=13.8 |
96711-19014 |
from US $2.24 |
||
|
44342
|
44342
44341-12010 Plate, Vane Pump Side, Front[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
44341-12010 |
US $91.73 |
||
|
44342A
|
44342A
90301-53002 Ring, O(For Vane Pump Side Plate Rear)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90301-53002 |
US $4.19 |
||
|
44342B
|
44342B
90501-23014 Spring, Compression(For Vane Pump Side Plate Rear)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
90501-23014 |
from US $3.83 |
||
|
44343
|
44343
44343-12040 Seat, Flow Control Spring[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
44343-12040 |
US $9.43 |
||
|
44343A
|
44343A
96711-19014 O-Ring[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
96711-19014 |
from US $2.24 |
||
|
44345B
|
44345B
44345-12010 Plate, Vane Pump[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 長さ＝１４．９９７; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 長さ＝１４．９９７ |
44345-12010 |
US $11.83 |
||
|
44345B
|
44345B
44345-12020 Plate, Vane Pump[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 長さ＝１４．９９５; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 長さ＝１４．９９５ |
44345-12020 |
US $6.12 |
||
|
44345B
|
44345B
44345-12030 Plate, Vane Pump[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 長さ＝１４．９９３; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 長さ＝１４．９９３ |
44345-12030 |
US $6.12 |
||
|
44345B
|
44345B
44345-12040 Plate, Vane Pump[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 長さ＝１４．９９１; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 長さ＝１４．９９１ |
44345-12040 |
US $6.12 |
||
|
44345B
|
44345B
44345-12050 Plate, Vane Pump[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S 長さ＝１４．９８９; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL 長さ＝１４．９８９ |
44345-12050 |
US $6.12 |
||
|
44360
|
44360
44306-26010 Reservoir Assy, Vane Pump Oil[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
44306-26010 |
US $135.41 |
||
|
44362A
|
44362A
96711-19013 Ring, O(For Power Steering Suction Port)[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S; LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61,71..CTM,DX,GL,SCL,SCM,SGL |
96711-19013 |
from US $2.63 |
||
|
44391
|
44391
44391-14010
Plate, Power Steering Oil Reservoir Caution
[08.1987 - 08.1989] YH50,52,6#..03S; YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
44391-14010 |
— | ||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.87 |
||
|
9020112022
|
9020112022
90201-12022 New Genuine Part |
90201-12022 |
US $1.51 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
