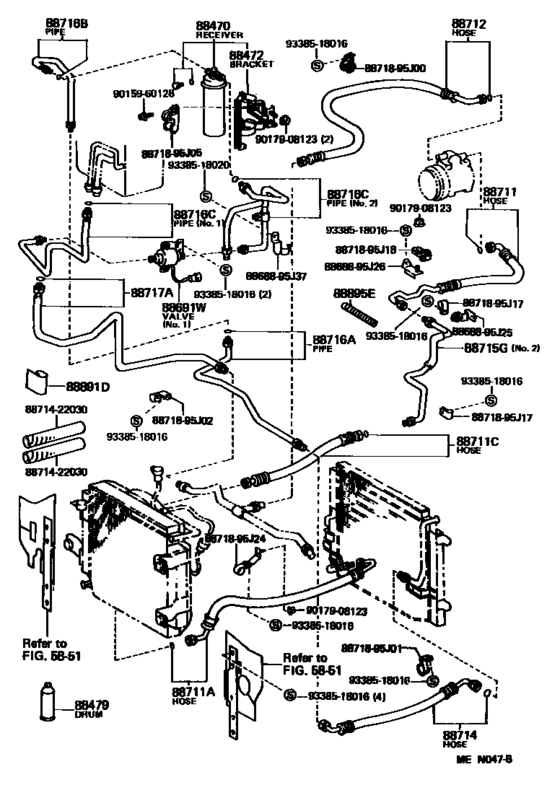

Heating & Air Conditioning - Cooler Piping ([08.1987 - 08.1989] FRONT PIPING (8708-8908)YH51,61..LHD..COM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- YH61
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88470
|
88470
88470-95J01 Receiver & Dryer Assy, CoolerCOOLER [08.1987 - 08.1989] LH51,61,YH51,61..LHD..SRF |
88470-95J01 |
US $170.35 |
||
|
88472
|
88472
88472-95J01
Bracket, Receiver Tank, No.1
[08.1987 - 08.1989] LH51,61,YH51,61..LHD..SRF |
88472-95J01 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1987 - 08.1989] YH53..05S 400G; YH61..SRF..15S 400G; LH51,61,71,YH51,73..COM 400G |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1987 - 08.1989] YH53..05S 400G; YH61..SRF..15S 400G; LH51,61,71,YH51,73..COM 400G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[08.1987 - 08.1989] YH53..05S 400G; YH61..SRF..15S 400G; LH51,61,71,YH51,73..COM 400G |
90986-02005 |
— | ||
|
88691W
|
88691W
88690-95J19
Valve, Magnet
[08.1987 - 08.1989] LH51,61,YH51,61..LHD..COM..SRF NO.1 |
88690-95J19 |
— | ||
|
88691W
|
88691W
88690-95J21
Valve, Magnet
[08.1987 - 08.1989] LH51,61,YH51,61..LHD..COM..SRF NO.2 |
88690-95J21 |
— | ||
|
88711
|
88711
88711-95J17 Hose, Cooler Refrigerant Discharge, No.1[08.1987 - 08.1989] YH73;YH5#,61,63..SRF..(ARL,GEN) |
88711-95J17 |
US $177.63 |
||
|
88711A
|
88711A
88711-95J04 Hose, Cooler Refrigerant Discharge, No.2[08.1987 - 08.1989] YH51,61..RHD..COM; YH51,61..LHD..COM..SRF; YH53,73..05S,15S |
88711-95J04 |
US $155.79 |
||
| replacement | |||||
|
88711A
|
88711A
88711-26490 Hose, Cooler Refrigerant Discharge, No.2[08.1987 - 08.1989] YH51,61..RHD..COM; YH51,61..LHD..COM..SRF; YH53,73..05S,15S |
88711-26490 |
US $82.99 |
||
|
88711C
|
88711C
88708-95J00 Hose, Cooler Refrigerant Discharge, No.3[08.1987 - 08.1989] YH51,61..RHD..COM; LH51,61,71..COM; YH51,61..LHD..COM..SRF; YH53,73..05S,15S |
88708-95J00 |
US $109.20 |
||
|
88712
|
88712
88709-95J00 Hose, Cooler Refrigerant Suction, No.1[08.1987 - 08.1989] YH61..SRF..15S; YH51,73..COM |
88709-95J00 |
US $170.35 |
||
| replacement | |||||
|
88712
|
88712
88712-26470 Hose, Cooler Refrigerant Suction, No.1[08.1987 - 08.1989] YH61..SRF..15S; YH51,73..COM |
88712-26470 |
US $107.74 |
||
|
88712
|
88712
88709-95J04 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1987 - 08.1989] LH51,61..LHD..V; LH51,61,YH5#,61..SRF..(05S,12S,15S) |
88709-95J04 |
US $198.02 |
||
|
88714
|
88714
88704-95J01 Hose, Cooler Refrigerant Liquid, No.1COOLER REFRIGERANT LIQUID, NO.1 [08.1987 - 08.1989] YH51,61..LHD..SRF |
88704-95J01 |
US $132.50 |
||
|
88715G
|
88715G
88715-95J02 Pipe, Cooler Refrigerant Discharge, B[08.1987 - 08.1989] LH51,61,YH51,61..LHD..COM..SRF NO.1 |
88715-95J02 |
US $59.40 |
||
|
88715G
|
88715G
88715-95J09 Pipe, Cooler Refrigerant Discharge, A[08.1987 - 08.1989] YH63..4HC..ARL; YH51,61..LHD..COM..SRF NO.2; YH53..(4FC,4HC,5F)..ARL; YH51,61,73..RHD..COM |
88715-95J09 |
US $69.60 |
||
|
88716A
|
88716A
88716-95J16 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [08.1987 - 08.1989] LH51,61,YH51,61..LHD..SRF |
88716-95J16 |
US $74.26 |
||
|
88716B
|
88716B
88716-95J15 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [08.1987 - 08.1989] LH51,61,YH51,61..LHD..SRF |
88716-95J15 |
US $50.23 |
||
|
88717A
|
88717A
88717-95J18 Pipe, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1987 - 08.1989] LH51..VSG..03S; LH51,61,YH51,61..LHD..SRF; LH51,61,YH51,61..LHD..COM..SRF; LH51..LHD..VSP;LH61,YH51,61..LHD..V |
88717-95J18 |
US $171.81 |
||
|
88891D
|
88891D
88578-95703
Packing, Cooler Stabilizer Amplifier
[08.1987 - 08.1989] YH63..GEN NO.2; YH51,61..RHD..COM NO.2; YH51..RHD..V5D NO.2; YH61..LHD..SRF NO.2; YH51,61..RHD..V4D NO.2; LH51,61..RHD..(06S,12S,15S) NO.2; LH51,61,YH51..LHD NO.2 |
88578-95703 |
— | ||
|
88891D
|
88891D
88578-95J06
Packing, Cooler Pipe, No.1
[08.1987 - 08.1989] YH63..GEN NO.1; YH51,61..RHD..COM NO.1; YH51..RHD..V5D NO.1; YH53..4H NO.1; YH61..LHD..SRF NO.1; YH51,61..RHD..V4D NO.1; YH63..5H..ARL NO.1; LH51,61..RHD..(06S,12S,15S) NO.1; LH51,61,YH51..LHD NO.1 |
88578-95J06 |
— | ||
|
88895E
|
88895E
88895-12030
Insulator, Cooler Refrigerant Pipe, No.2
[08.1987 - 08.1989] YH61..SRF;LH51..VSG;LH51..12S;LH61..06S,15S;LH51,61..LHD..VSP;LH71,YH5#,63,73..ARL ,GEN |
88895-12030 |
— | ||
|
8868895J25
|
8868895J25
88688-95J25
Bracket, Cooler Refrigerant Hose, No.2
|
88688-95J25 |
— | ||
|
8868895J26
|
8868895J26
88688-95J26
Bracket, Cooler Refrigerant Hose, No.1
|
88688-95J26 |
— | ||
|
8868895J37
|
8868895J37
88688-95J37
Bracket, Cooler Refrigerant Pipe
|
88688-95J37 |
— | ||
|
8871895J00
|
8871895J00
88718-95J00
Clamp(For Cooler Refrigerant Hose), No.4
|
88718-95J00 |
— | ||
|
8871895J01
|
8871895J01
88718-95J01
Clamp(For Cooler Refrigerant Pipe), No.3
|
88718-95J01 |
— | ||
|
8871895J02
|
8871895J02
88718-95J02
Clamp(For Cooler Refrigerant Hose), No.2
|
88718-95J02 |
— | ||
|
8871895J05
|
8871895J05
88718-95J05
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-95J05 |
— | ||
|
8871895J17
|
8871895J17
88718-95J17
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-95J17 |
— | ||
|
8871895J18
|
8871895J18
88718-95J18
Clamp(For Cooler Refrigerant Hose), No.1
|
88718-95J18 |
— | ||
|
8871895J24
|
8871895J24
88718-95J24
Clamp(For Cooler Refrigerant Hose), No.3
|
88718-95J24 |
— | ||
|
8871422030
|
8871422030
88714-22030
Insulator, Cooler Refrigerant Hose, No.1
|
88714-22030 |
— | ||
| replacement | |||||
|
8871422030
|
8871422030
88714-12050
Insulator, Cooler Refrigerant Hose, No.1
|
88714-12050 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $2.15 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
