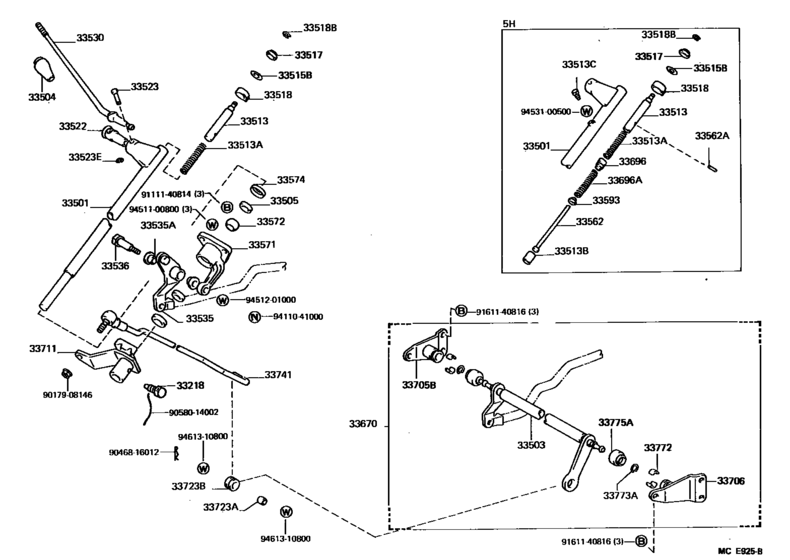

Control Shaft & Crossshaft ([08.1987 - ] (8708- )LH51,61,YH51,61..LHD..MTM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- YH61
- grade
- STD
- body
- V
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33218
|
33218
33218-35010 Bolt, Shift Lever Lock[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
33218-35010 |
US $4.72 |
||
|
33501
|
33501
33501-26160
Shaft Sub-Assy, Control (For Column Shift)
[08.1987 - 08.1989] LH51,61,YH51,61..LHD..5H |
33501-26160 |
— | ||
|
33503
|
33503
33503-26090 Lever Sub-Assy, Shift(For Column Shift)SHIFT(FOR COLUMN SHIFT) [08.1987 - 08.1989] LH51,61,YH51,61..LHD..MTM |
33503-26090 |
US $46.88 |
||
|
33504
|
33504
33504-30110 Knob Sub-Assy, Shift Lever (For Column Shift)[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
33504-30110 |
from US $10.74 |
||
|
33505
|
33505
90303-17005 Seal Sub-Assy, Control Shaft Dust (For Column Shift)[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
90303-17005 |
US $2.51 |
||
|
33513
|
33513
33513-26020 Shaft, Control Shaft Bracket, Upper[08.1987 - 08.1989] LH51,61,YH51,61..5H |
33513-26020 |
US $19.66 |
||
|
33513A
|
33513A
90501-14395 Spring, Compression (For Bracket Upper Shaft)[08.1987 - 08.1989] LH51,61,YH51,61 |
90501-14395 |
US $2.97 |
||
|
33513B
|
33513B
90560-11015 Spacer (For Control Shaft Bracket Upper Shaft)[08.1987 - 08.1989] LH51,61,YH51,61..5H |
90560-11015 |
US $1.31 |
||
|
33513C
|
33513C
90109-05012 Bolt (For Control Shaft Bracket Upper Shaft)[08.1987 - 08.1989] LH51,61,YH51,61..5H |
90109-05012 |
US $2.91 |
||
|
33515B
|
33515B
33515-30010 Seat, Control Shaft Upper[08.1987 - 08.1989] LH51,61,YH51,61 |
33515-30010 |
US $5.73 |
||
|
33517
|
33517
33517-30010 Retainer, Control Shaft Upper Spring[08.1987 - 08.1989] LH51,61,YH51,61 |
33517-30010 |
US $4.66 |
||
|
33518
|
33518
33518-36010
Bush, Upper Control Shaft Piece
[08.1987 - 08.1989] LH51,61,YH51,61 |
33518-36010 |
— | ||
| replacement | |||||
|
33518
|
33518
33518-35010 Bush, Upper Control Shaft Piece[08.1987 - 08.1989] LH51,61,YH51,61 |
33518-35010 |
US $12.54 |
||
|
33518B
|
33518B
90523-06019 Ring, E (For Upper Control Shaft Piece Bush)[08.1987 - 08.1989] LH51,61,YH51,61 |
90523-06019 |
US $3.94 |
||
|
33522
|
33522
33522-36010 Seat, Shift Lever Plate (For Column Shift)[08.1987 - 08.1989] LH51,61,YH51,61 |
33522-36010 |
from US $4.06 |
||
|
33523
|
33523
90249-07001 Pin, Shift Lever (For Column Shift)[08.1987 - 08.1989] LH51,61,YH51,61 |
90249-07001 |
US $3.14 |
||
|
33523E
|
33523E
96160-00500 Ring, E(For Over Center Lever)[08.1987 - 08.1989] LH51,61,YH51,61 |
96160-00500 |
from US $1.01 |
||
|
33530
|
33530
33541-26060 Lever Assy, Shift (For Column Shift)SHIFT (FOR COLUMN SHIFT) [08.1987 - 08.1989] LH51,61,YH51,61..LHD..MTM |
33541-26060 |
US $32.76 |
||
|
33535
|
33535
33535-26040
Lever, Control Select (For Column Shift)
[08.1987 - 08.1989] LH51,61,YH51,61..LHD..MTM |
33535-26040 |
— | ||
|
33535A
|
33535A
90386-13192 Bush(For Over Center Plate)[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
90386-13192 |
from US $1.64 |
||
|
33536
|
33536
33536-36040
Shaft, Control Select Lever (For Column Shift)
[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
33536-36040 |
— | ||
|
33562
|
33562
33562-26010 Stopper, Control Shaft Upper Bracket Shaft[08.1987 - 08.1989] LH51,61,YH51,61..5H |
33562-26010 |
US $4.22 |
||
|
33562A
|
33562A
90254-03006 Pin(For Reverse Shift Head)[08.1987 - 08.1989] LH51,61,YH51,61..5H |
90254-03006 |
US $1.16 |
||
|
33571
|
33571
33571-26012 Bracket, Control Shaft, Lower (For Column Shift)[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
33571-26012 |
US $30.58 |
||
|
33572
|
33572
33572-36010 Bush, Control Shaft Lower (For Column Shift)[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
33572-36010 |
from US $5.93 |
||
|
33574
|
33574
33574-25010 Retainer, Dust Seal (For Column Shift Control Shaft)[08.1987 - 08.1989] LH51,61,YH51,61..MTM |
33574-25010 |
US $4.66 |
||
|
33593
|
33593
33593-26030 Holder, Spring (For Select Lever)[08.1987 - 08.1989] LH51,61,YH51,61..5H |
33593-26030 |
US $5.10 |
||
|
33670
|
33670
33670-26321 Support Assy, Control Rod (For Column Shift)CONTROL ROD (FOR COLUMN SHIFT) [08.1987 - 08.1989] LH51,61,YH51,61..LHD..MTM |
33670-26321 |
US $101.92 |
||
|
33696
|
33696
33696-26020 Seat, Select Spring[08.1987 - 08.1989] LH51,61,YH51,61..5H |
33696-26020 |
US $5.53 |
||
|
33696A
|
33696A
90501-18049 Spring, Compression[08.1987 - 08.1989] LH51,61,YH51,61..5H |
90501-18049 |
US $3.79 |
||
|
33705B
|
33705B
33705-26061 Support Sub-Assy, Cross Shaft (For Body Side)CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) [08.1987 - 08.1989] LH51,61,YH51,61..LHD |
33705-26061 |
US $15.87 |
||
|
33706
|
33706
33706-26040 Support Sub-Assy, Cross Shaft, No.2 (For Column Shift)CROSS SHAFT, NO.2 (FOR COLUMN SHIFT) [08.1987 - 08.1989] LH51,61,YH51,61..LHD |
33706-26040 |
US $15.43 |
||
|
33711
|
33711
33527-26070
Lever, Control Shaft (For Column Shift)
[08.1987 - 08.1989] LH51,61,YH51,61..LHD..MTM |
33527-26070 |
— | ||
|
33723A
|
33723A
90389-08005 Bushing(For Gear Selecting Rod)[08.1987 - 08.1989] LH51,61,YH51,61 |
90389-08005 |
from US $1.77 |
||
|
33723B
|
33723B
90480-17177 Grommet (For Transmission Control Rod)[08.1987 - 08.1989] LH51,61,YH51,61 |
90480-17177 |
from US $2.07 |
||
|
33741
|
33741
33710-26091 Rod, Gear Shifting, No.1 (For Column Shift)GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) [08.1987 - 08.1989] LH51,61,YH51,61..LHD..MTM |
33710-26091 |
US $24.90 |
||
|
33772
|
33772
33772-20010 Bush (For Control Rod Support)[08.1987 - 08.1989] LH51,61,YH51,61..LHD |
33772-20010 |
from US $4.43 |
||
|
33773A
|
33773A
96151-01600
Ring, Snap
[08.1987 - 08.1989] LH51,61,YH51,61..LHD |
96151-01600 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.90 |
||
|
9058014002
|
9058014002
90580-14002
Wire(For Shift Lever Lock Bolt)
|
90580-14002 |
— | ||
|
9111140814
|
9111140814
91111-40814
Bolt (for Transmission Control Cable Bracket)
|
91111-40814 |
— | ||
| replacement | |||||
|
9111140814
|
9111140814
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
|
9453100500
|
9453100500
94531-00500 WASHER,WAVE |
94531-00500 |
US $1.93 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
