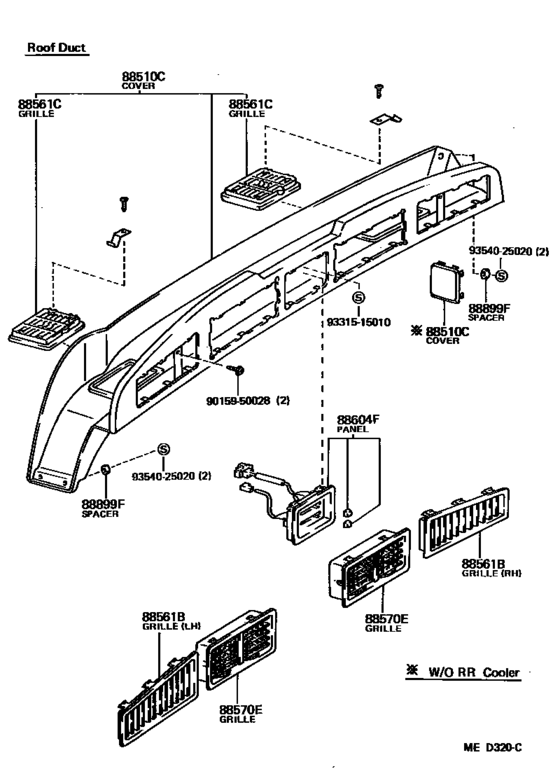

Heating & Air Conditioning - Control & Air Duct ([12.1982 - ] (8212- )COM..SRF..GEN) Diagram Toyota HIACE
- Year
- 1986 - 1987
- Sales region
- Europe
- Frame
- YH61
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1986
- To
- 08.1987
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88510C
|
88510C
61749-95J00-08 Cover Assy, Cooler Unit[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..COM..GEN IVORY,W/O RR COOLER,IVORY |
61749-95J00-08 |
US $5.82 |
||
|
88510C
|
88510C
88896-95J02-08
Cover Assy, Cooler Unit
[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..RHD..COM..GEN IVORY,IVORY |
88896-95J02-08 |
— | ||
|
88561B
|
88561B
88561-95J00-06
Grille, Cooler Air Inlet
[08.1985 - 08.1987] LH71,YH7# LH,BROWN,BROWN; LH51,61,YH50,51,60,61..COM..GEN LH,BROWN,BROWN |
88561-95J00-06 |
— | ||
|
88561B
|
88561B
88561-95J01-06
Grille, Cooler Air Inlet
[08.1985 - 08.1987] LH71,YH7# RH,BROWN,BROWN; LH51,61,YH50,51,60,61..COM..GEN RH,BROWN,BROWN |
88561-95J01-06 |
— | ||
|
88561C
|
88561C
88561-95J02-06
Grille, Cooler Air Inlet
[08.1985 - 08.1987] LH71,YH7# BROWN,BROWN; LH51,61,YH50,51,60,61..COM..GEN BROWN,BROWN |
88561-95J02-06 |
— | ||
|
88570E
|
88570E
88570-95J00-06
Grille Assy, Air Outlet
[08.1985 - 08.1987] LH71,YH7# BROWN,BROWN; LH51,61,YH50,51,60,61..COM..GEN BROWN,BROWN |
88570-95J00-06 |
— | ||
|
88899F
|
88899F
88899-95J02-06
Spacer
[08.1985 - 08.1987] LH51,61,YH50,51,60,61..COM..GEN BROWN,BROWN |
88899-95J02-06 |
— | ||
|
9015950028
|
9015950028
90159-50028 New Genuine Part |
90159-50028 |
US $2.33 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9354025020
|
9354025020
93540-25020 New Genuine Part |
93540-25020 |
US $1.60 |
