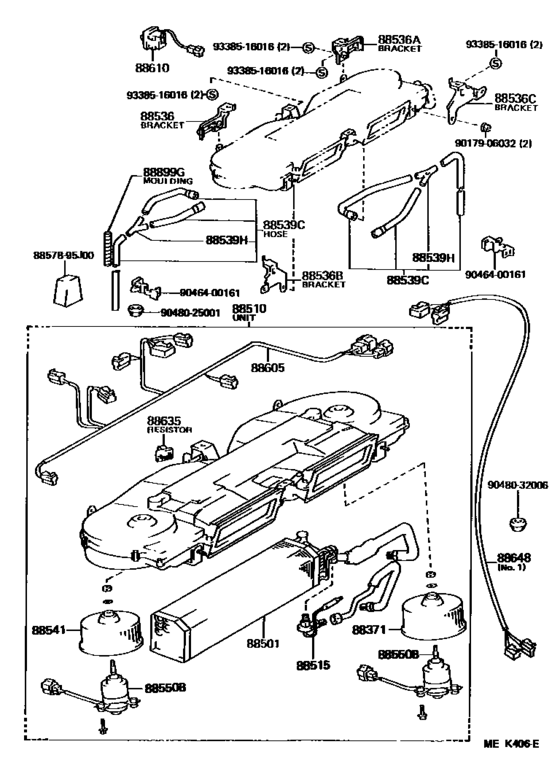

Heating & Air Conditioning - Cooler Unit ([08.1987 - 08.1989] REAR (8708-8908)LH51,61,YH51,61..COM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- YH61
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88371
|
88371
87105-95J00
Fan Sub-Assy, Blower, Rear
[08.1987 - 10.1987] LH51,61,YH51,61..COM..SRF |
87105-95J00 |
— | ||
|
88501
|
88501
88501-95J01
Evaporator Sub-Assy, Cooler, No.1
[08.1987 - 10.1989] LH51,61,YH51,61..RHD..COM REAR |
88501-95J01 |
— | ||
|
88501
|
88501
88501-95J08
Evaporator Sub-Assy, Cooler, No.1
[08.1987 - 10.1989] LH51,61,YH51,61..RHD..COM FRONT; YH51,61,63..RHD..V..GEN |
88501-95J08 |
— | ||
|
88510
|
88510
88510-95J03
Unit Assy, Cooler
[08.1987 - 10.1989] LH51,61,YH51,61..RHD..COM REAR |
88510-95J03 |
— | ||
|
88510
|
88510
88510-95J55
Unit Assy, Cooler
[08.1987 - 10.1989] LH51,61,71,YH5#,61,73..RHD..(05S,12S,15S) FRONT |
88510-95J55 |
— | ||
| replacement | |||||
|
88510
|
88510
88510-95J54
Unit Assy, Cooler
[08.1987 - 10.1989] LH51,61,71,YH5#,61,73..RHD..(05S,12S,15S) FRONT |
88510-95J54 |
— | ||
|
88536
|
88536
88536-95J00
Bracket, Cooling Unit, No.1
[08.1987 - 08.1989] LH51,61,YH5#,61..SRF..(05S,12S,15S) |
88536-95J00 |
— | ||
|
88536A
|
88536A
88536-95J01
Bracket, Cooling Unit, No.2
[08.1987 - 08.1989] LH51,61,YH5#,61..SRF..(05S,12S,15S) |
88536-95J01 |
— | ||
|
88536B
|
88536B
88536-95J02
Bracket, Cooling Unit, No.3
[08.1987 - 08.1989] LH51,61,YH5#,61..SRF..(05S,12S,15S) |
88536-95J02 |
— | ||
|
88536C
|
88536C
88536-95J03
Bracket, Cooling Unit, No.4
[08.1987 - 08.1989] LH51,61,YH5#,61..SRF..(05S,12S,15S) |
88536-95J03 |
— | ||
|
88539C
|
88539C
88539-95J02
Hose, Cooler Unit Drain, No.1
[08.1987 - 08.1989] YH53..05S; LH51,61,YH51,61..COM..SRF |
88539-95J02 |
— | ||
|
88541
|
88541
88541-95J00
Fan Sub-Assy, Blower, Rear
[08.1987 - 10.1987] LH51,61,YH51,61..COM..SRF |
88541-95J00 |
— | ||
|
88550B
|
88550B
88550-95J00 Motor Sub-Assy, Rear Heater Blower[08.1987 - 10.1987] LH51,61,YH51,61..COM..SRF |
88550-95J00 |
from US $190.11 |
||
|
88605
|
88605
88605-95J03
Harness Sub-Assy, Cooler Wiring, No.1
[08.1987 - 08.1989] LH51,61,YH51,61..RHD..COM REAR |
88605-95J03 |
— | ||
|
88605
|
88605
88605-95J49
Harness Sub-Assy, Cooler Wiring, No.1
[08.1987 - 08.1989] YH51,61..RHD..COM FRONT; YH53,73..05S,15S FRONT |
88605-95J49 |
— | ||
|
88605
|
88605
88605-95J50
Harness Sub-Assy, Cooler Wiring, No.1
[08.1987 - 08.1989] YH51,61..RHD..COM W(BOOST VENTILATOR),FRONT |
88605-95J50 |
— | ||
|
88610
|
88610
84660-95J00 Switch Assy, Cooler Control[08.1987 - 08.1989] LH51,61,YH51,61..RHD..COM; LH51,61..LHD..V; LH51,61..V4D..06S; YH53..03S; LH51,61,YH51,61..LHD..COM..SRF; YH51,61,63..V..(ARL,GEN); LH71,YH53,73..05S,15S FRONT |
84660-95J00 |
US $70.91 |
||
|
88610
|
88610
88610-95A04
Switch Assy, Cooler Control
[08.1987 - 08.1989] LH51,61,YH51,61..COM..SRF; YH61..HRF; LH71,YH53,73..05S,15S REAR |
88610-95A04 |
— | ||
|
88635
|
88635
88635-95J00
Resistor, Cooler Unit Blower
[08.1987 - 08.1989] LH51,61,YH51,61..COM..SRF |
88635-95J00 |
— | ||
|
88648
|
88648
88648-95J09
Harness Sub-Assy, Cooler Wiring, No.2
[08.1987 - 10.1989] YH51,61..COM..SRF |
88648-95J09 |
— | ||
|
88899G
|
88899G
88899-95J09
Cover, Cooler Control
[08.1987 - 08.1989] LH51,61,YH51,61..COM..SRF NO.2 |
88899-95J09 |
— | ||
|
88899G
|
88899G
88899-95J17
Moulding, Protector
[08.1987 - 08.1989] LH51,61..LHD..V; YH63..V5D; LH51,61..V4D..06S; YH63..4HC..GEN; YH63..V4D..5H; YH5#,61..V..(4FC,4H,5F); LH51,61,YH51,61..COM..SRF NO.1 |
88899-95J17 |
— | ||
|
8857895J00
|
8857895J00
88578-95J00
Packing D (For Cooler)
|
88578-95J00 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046400161
|
9046400161
90464-00161 New Genuine Part |
90464-00161 |
US $3.40 |
||
|
9048025001
|
9048025001
90480-25001 New Genuine Part |
90480-25001 |
US $3.35 |
||
|
9048032006
|
9048032006
90480-32006
New Genuine Part
|
90480-32006 |
— | ||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
