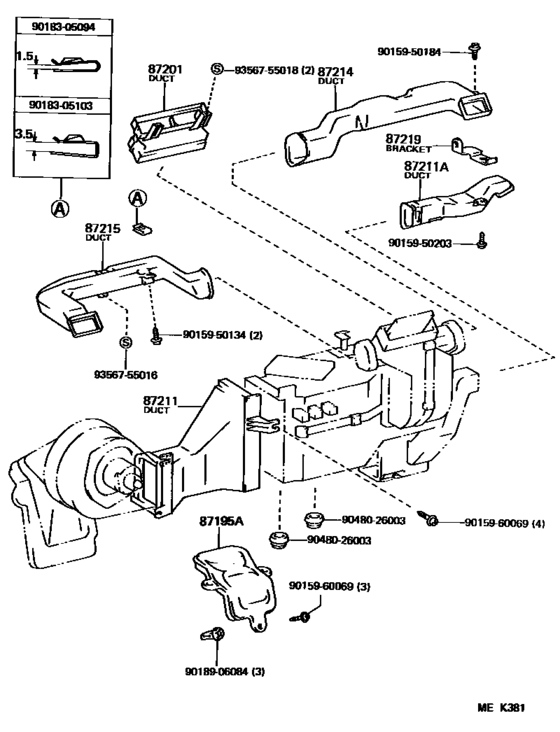

Heating & Air Conditioning - Control & Air Duct ([08.1987 - ] (8708- )RHD) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- YH61
- grade
- STD
- body
- V
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87195A
|
87195A
87195-95J00 Cover, Hole[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
87195-95J00 |
US $38.44 |
||
|
87201
|
87201
55086-95J00 Duct Sub-Assy, Air, No.1[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
55086-95J00 |
US $24.32 |
||
|
87211
|
87211
87211-95J00
Duct, Air, No.1
[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
87211-95J00 |
— | ||
|
87211A
|
87211A
87211-95J04
Duct, Air, No.2
[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
87211-95J04 |
— | ||
|
87214
|
87214
55084-95J01 Duct, Air, Side No.1 Rh[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
55084-95J01 |
US $57.22 |
||
|
87215
|
87215
55085-95J00 Duct, Air, Side No.1 Lh[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
55085-95J00 |
US $61.88 |
||
|
87219
|
87219
87219-95J00 Bracket, Front Air Duct[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
87219-95J00 |
US $5.97 |
||
|
9015950134
|
9015950134
90159-50134 SCREW |
90159-50134 |
US $2.15 |
||
|
9015950184
|
9015950184
90159-50184 New Genuine Part |
90159-50184 |
US $1.51 |
||
|
9015950203
|
9015950203
90159-50203 New Genuine Part |
90159-50203 |
US $1.05 |
||
|
9015960069
|
9015960069
90159-60069 New Genuine Part |
90159-60069 |
US $3.58 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9018906084
|
9018906084
90189-06084 NUT |
90189-06084 |
US $1.97 |
||
|
9048026003
|
9048026003
90480-26003 Grommet (For Cooler Unit) |
90480-26003 |
US $2.80 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9356755018
|
9356755018
93567-55018
New Genuine Part
|
93567-55018 |
— | ||
| replacement | |||||
|
9356755018
|
9356755018
93568-55018 SCREW |
93568-55018 |
from US $0.60 |
||
