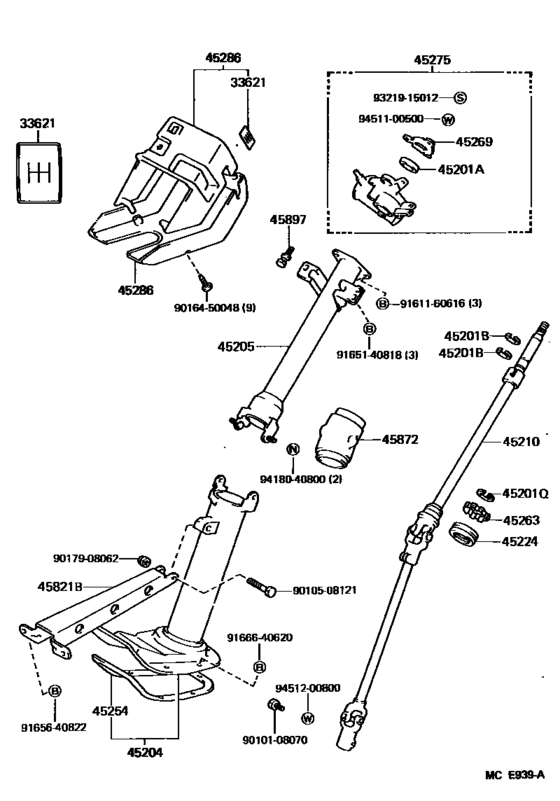

Steering Column & Shaft ([08.1987 - ] (8708- )LH51,61,YH51,61) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- YH61
- grade
- STD
- body
- V
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33621
|
33621
33621-36020
Plate, Control Lever Caution
[08.1987 - 08.1989] LH51,61,YH61..RHD |
33621-36020 |
— | ||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
90363-18038 |
from US $6.69 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1987 - 08.1989] LH5#,6#,YH5#,6# T=1.20 |
90520-17042 |
from US $0.82 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[08.1987 - 08.1989] LH5#,6#,YH5#,6# T=1.20 |
90520-17269 |
US $2.15 |
||
|
45201Q
|
45201Q
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
96152-00300 |
US $0.70 |
||
|
45204
|
45204
45204-26050 Tube Assy, Steering Column, LowerSTEERING COLUMN, LOWER [08.1987 - 08.1989] LH51,61,YH51,61..RHD |
45204-26050 |
US $74.26 |
||
|
45205
|
45205
45205-26081
Tube Sub-Assy, Steering Column
[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
45205-26081 |
— | ||
|
45210
|
45210
45210-26010
Shaft Assy, Steering Main
[08.1987 - 08.1989] LH51,61,YH51,61 |
45210-26010 |
— | ||
|
45210
|
45210
45210-26020
Shaft Assy, Steering Main
[08.1987 - 08.1989] LH51,61,YH51,61 W(POWER STEERING) |
45210-26020 |
— | ||
|
45224
|
45224
45225-26010 Ring, Shaft Snap(For Steering Main Shaft)[08.1987 - 08.1989] LH5#,6#,YH5#,6# L=16 |
45225-26010 |
US $31.27 |
||
|
45254
|
45254
45254-26050 Shield, Steering Column Hole[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
45254-26050 |
US $17.18 |
||
|
45263
|
45263
45263-32010 Ring, Steering Column, No.1[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
45263-32010 |
US $2.45 |
||
|
45269
|
45269
45269-35010 Retainer, Main Shaft Bearing[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
45269-35010 |
US $6.41 |
||
|
45275
|
45275
45307-26081 Bracket, Steering Column, Upper[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
45307-26081 |
US $183.46 |
||
|
45286
|
45286
45023-26212-06
Cover, Steering Column
[08.1987 - 08.1989] LH51,61,YH61..RHD BROWN,TRIM4#,UPR |
45023-26212-06 |
— | ||
| replacement | |||||
|
45286
|
45286
45023-26212-B0
Cover, Steering Column
[08.1987 - 08.1989] LH51,61,YH61..RHD BROWN,TRIM4#,UPR |
45023-26212-B0 |
— | ||
|
45286
|
45286
45287-26091-16
Housing, Steering Column
[08.1987 - 08.1989] LH51,61,YH51,61..RHD BROWN,TRIM4#,LWR |
45287-26091-16 |
— | ||
| replacement | |||||
|
45286
|
45286
45287-26091-B0 Housing, Steering Column[08.1987 - 08.1989] LH51,61,YH51,61..RHD BROWN,TRIM4#,LWR |
45287-26091-B0 |
US $56.96 |
||
|
45821B
|
45821B
45821-26011 Reinforce, Tilt Steering Support, No.1[08.1987 - 08.1989] LH51,61,YH51,61..RHD |
45821-26011 |
US $42.81 |
||
|
45872
|
45872
45872-26010
Cover, Steering Column Tube
[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
45872-26010 |
— | ||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
45897-12030 |
US $8.56 |
||
|
9010108070
|
9010108070
90101-08070
Bolt, Hexagon
|
90101-08070 |
— | ||
| replacement | |||||
|
9010108070
|
9010108070
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
|
9010508121
|
9010508121
90105-08121 New Genuine Part |
90105-08121 |
US $2.62 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.86 |
||
|
9017908062
|
9017908062
90179-08062 NUT |
90179-08062 |
from US $0.74 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.19 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
|
9166640620
|
9166640620
91666-40620
New Genuine Part
|
91666-40620 |
— | ||
| replacement | |||||
|
9166640620
|
9166640620
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $3.05 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
