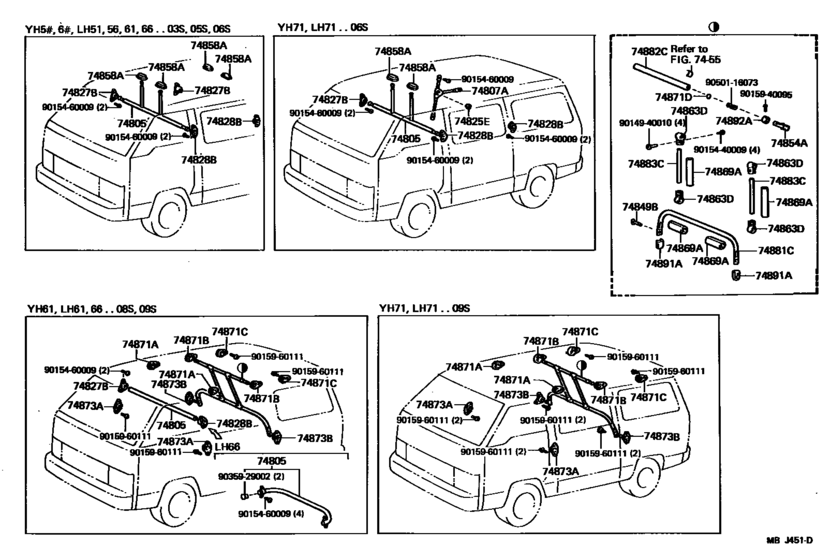

Separator & Separator Curtain ([08.1985 - ] (8508- )V) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- YH62V
- grade
- CTD
- body
- V
- Roof
- SRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74805
|
74805
74805-95J05-06 Separator Sub-Assy[08.1985 - 08.1987] LH51,61,YH50,6#..03S BROWN,BROWN |
74805-95J05-06 |
US $180.54 |
||
|
74827B
|
74827B
74827-95J01-06 Bracket, Separator Bar, Rh[08.1985 - 08.1987] LH51,61,71,YH5#,6#,71..03S,05S,06S BROWN,BROWN |
74827-95J01-06 |
US $4.95 |
||
|
74828B
|
74828B
74828-95J02-06 Bracket, Separator Bar, Lh[08.1985 - 08.1987] LH51,61,71,YH5#,6#,71..03S,05S,06S BROWN,BROWN |
74828-95J02-06 |
US $4.95 |
||
|
74858A
|
74858A
74858-95J02-06 Bracket, Separator Bar, Upper[08.1985 - 08.1987] LH51,61,71,YH5#,6#,71..03S,05S,06S BROWN,BROWN |
74858-95J02-06 |
US $5.10 |
||
|
9014940010
|
9014940010
90149-40010 New Genuine Part |
90149-40010 |
US $1.60 |
||
|
9015440009
|
9015440009
90154-40009 New Genuine Part |
90154-40009 |
US $0.87 |
||
|
9015460009
|
9015460009
90154-60009 New Genuine Part |
90154-60009 |
US $1.60 |
||
|
9015940095
|
9015940095
90159-40095 New Genuine Part |
90159-40095 |
US $1.25 |
||
|
9015960111
|
9015960111
90159-60111 New Genuine Part |
90159-60111 |
US $2.33 |
||
| replacement | |||||
|
9015960111
|
9015960111
93315-16016 New Genuine Part |
93315-16016 |
US $1.22 |
||
|
9035929002
|
9035929002
90359-29002
New Genuine Part
|
90359-29002 |
— | ||
|
9050116073
|
9050116073
90501-16073 New Genuine Part |
90501-16073 |
US $3.23 |
||
