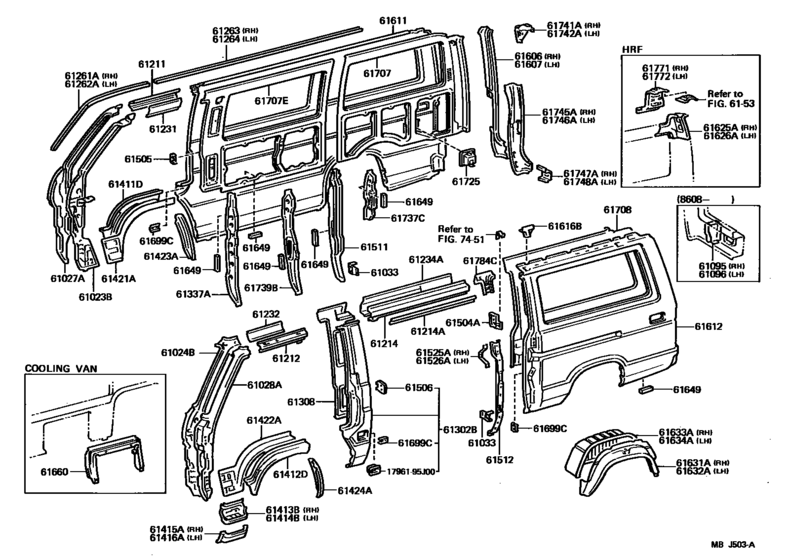

Side Member ([08.1985 - ] (8508- )LH51,61,YH61..COM,WG ; (8508- )LH5 #,6#,YH50,61..V4D ; (8508- )YH51 ,62..03S,07S,08S, 09S) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- YH62V
- grade
- CTD
- body
- V
- Roof
- SRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61023B
|
61023B
61023-95J00 Pillar Sub-Assy, Front Body, Inner Rh[12.1982 - 01.1986] LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
61023-95J00 |
US $477.57 |
||
|
61023B
|
61023B
61023-95J06 Pillar Sub-Assy, Front Body, Inner Rh[01.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,DLX,GL; LH51,YH51..CTM |
61023-95J06 |
US $476.11 |
||
|
61024B
|
61024B
61024-95J00 Pillar Sub-Assy, Front Body, Inner Lh[12.1982 - 01.1986] LH5#,YH51..SRF..(CTM,SCM); LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
61024-95J00 |
US $477.57 |
||
|
61024B
|
61024B
61024-95J04 Pillar Sub-Assy, Front Body, Inner Lh[01.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,DLX,GL; LH51,YH51..SRF..(CTM,SCM) |
61024-95J04 |
US $477.57 |
||
|
61027A
|
61027A
61027-95J00 Pillar Sub-Assy, Front Body, Outer Rh[01.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..(HRF,SRF)..(CTD,CTM,DLX,GL,SCM) |
61027-95J00 |
US $460.10 |
||
|
61028A
|
61028A
61028-95J00 Pillar Sub-Assy, Front Body, Outer Lh[01.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..HRF,SRF |
61028-95J00 |
US $460.10 |
||
|
61033
|
61033
61033-95J00 Extension Sub-Assy, Quarter Lock Pillar[12.1982 - 08.1987] LH6#,7#,YH6#,71..ST LH; LH6#,YH6#..ST RH |
61033-95J00 |
US $21.55 |
||
|
61095
|
61095
61095-95J00 Plate Sub-Assy, Back Door Opening, Lower Rh[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61095-95J00 |
US $13.69 |
||
|
61096
|
61096
61096-95J00 Plate Sub-Assy, Back Door Opening, Lower Lh[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61096-95J00 |
US $13.69 |
||
|
61211
|
61211
61211-95J00 Rail, Roof Side, Outer Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61211-95J00 |
US $161.62 |
||
|
61212
|
61212
61212-95J00 Rail, Roof Side, Outer Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61212-95J00 |
US $161.62 |
||
|
61214
|
61214
61204-95J00 Rail, Roof Side, Outer Rear Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61204-95J00 |
US $257.71 |
||
|
61214A
|
61214A
67161-95J00 Retainer, Slide Door Weatherstrip, Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
67161-95J00 |
US $17.47 |
||
|
61231
|
61231
61231-95J00 Rail, Roof Side, Inner Rh[12.1982 - 08.1987] LH50,51,YH51..MRF; LH50,51,YH51..DLX..09S; LH60,61,YH61..10S,15S; LH5#,6#,7#,YH5#,6#,71..V |
61231-95J00 |
US $88.82 |
||
|
61232
|
61232
61232-95J00 Rail, Roof Side, Inner Lh[12.1982 - 08.1987] LH50,51,YH51..MRF; LH50,51,YH51..DLX..09S; LH60,61,YH61..10S,15S; LH5#,6#,7#,YH5#,6#,71..V |
61232-95J00 |
US $88.82 |
||
|
61234A
|
61234A
61234-95J00 Rail, Roof Side, Inner No.2 Lh[12.1982 - 08.1987] LH5#,6#,7#,YH50,52,6#,71..03S,05S,06S |
61234-95J00 |
US $119.39 |
||
|
61261A
|
61261A
61263-95J00 Channel, Roof Drip Side, Front Rh[12.1982 - 05.1986] LH5#,6#,7#,YH5#,6#,71 |
61263-95J00 |
US $68.58 |
||
|
61261A
|
61261A
61263-95J01 Channel, Roof Drip Side, Front Rh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61263-95J01 |
US $68.87 |
||
|
61262A
|
61262A
61264-95J00 Channel, Roof Drip Side, Front Lh[12.1982 - 05.1986] LH5#,6#,71,YH5#,6#,71 |
61264-95J00 |
US $68.58 |
||
|
61262A
|
61262A
61264-95J01 Channel, Roof Drip Side, Front Lh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61264-95J01 |
US $68.87 |
||
|
61263
|
61263
61267-95J01 Channel, Roof Drip, Rear Rh[12.1982 - 09.1985] LH6#,YH6# |
61267-95J01 |
US $112.11 |
||
| replacement | |||||
|
61263
|
61263
61267-95J02 Channel, Roof Drip, Rear Rh[12.1982 - 09.1985] LH6#,YH6# |
61267-95J02 |
US $112.11 |
||
|
61263
|
61263
61267-95J02 Channel, Roof Drip, Rear Rh[09.1985 - 05.1986] LH51,61,71,YH5#,6#,71 |
61267-95J02 |
US $112.11 |
||
|
61263
|
61263
61267-95J05 Channel, Roof Drip, Rear Rh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61267-95J05 |
US $104.83 |
||
|
61264
|
61264
61268-95J01 Channel, Roof Drip, Rear Lh[12.1982 - 09.1985] LH6#,YH6# |
61268-95J01 |
US $112.11 |
||
| replacement | |||||
|
61264
|
61264
61268-95J02 Channel, Roof Drip, Rear Lh[12.1982 - 09.1985] LH6#,YH6# |
61268-95J02 |
US $112.11 |
||
|
61264
|
61264
61268-95J02 Channel, Roof Drip, Rear Lh[09.1985 - 05.1986] LH51,61,71,YH5#,6#,71 |
61268-95J02 |
US $112.11 |
||
|
61264
|
61264
61268-95J05 Channel, Roof Drip, Rear Lh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61268-95J05 |
US $104.83 |
||
|
61302B
|
61302B
61302-95J00 Pillar, Center Body, Outer Lh[12.1982 - 01.1986] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
61302-95J00 |
US $403.31 |
||
| replacement | |||||
|
61302B
|
61302B
61302-95J09 Pillar, Center Body, Outer Lh[12.1982 - 01.1986] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
61302-95J09 |
US $477.57 |
||
|
61302B
|
61302B
61302-95J09 Pillar, Center Body, Outer Lh[01.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL |
61302-95J09 |
US $477.57 |
||
|
61308
|
61308
61308-95J23 Pillar Sub-Assy, Center Body, Inner Lh[08.1985 - 03.1986] LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST |
61308-95J23 |
US $267.90 |
||
| replacement | |||||
|
61308
|
61308
61308-95J24 Pillar Sub-Assy, Center Body, Inner Lh[08.1985 - 03.1986] LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST |
61308-95J24 |
US $276.64 |
||
|
61308
|
61308
61308-95J24 Pillar Sub-Assy, Center Body, Inner Lh[03.1986 - 08.1987] LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST |
61308-95J24 |
US $276.64 |
||
|
61308
|
61308
61308-95J26 Pillar Sub-Assy, Center Body, Inner Lh[08.1985 - 03.1986] LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST W/SEPARATOR CURTAIN |
61308-95J26 |
US $267.90 |
||
| replacement | |||||
|
61308
|
61308
61308-95J24 Pillar Sub-Assy, Center Body, Inner Lh[08.1985 - 03.1986] LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST W/SEPARATOR CURTAIN |
61308-95J24 |
US $276.64 |
||
|
61337A
|
61337A
61337-95J00 Reinforcement, Center Body Pillar, Inner Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61337-95J00 |
US $70.76 |
||
|
61411D
|
61411D
61411-95J00 Panel, Fender, Outer Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61411-95J00 |
US $353.81 |
||
|
61412D
|
61412D
61412-95J00 Panel, Fender, Outer Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61412-95J00 |
US $353.81 |
||
|
61413B
|
61413B
61413-95J00
Panel, Front Step, Rh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61413-95J00 |
— | ||
|
61414B
|
61414B
61414-95J00
Panel, Front Step, Lh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61414-95J00 |
— | ||
|
61415A
|
61415A
61415-95J00
Panel, Front Step, Under, Rh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61415-95J00 |
— | ||
|
61416A
|
61416A
61416-95J00
Panel, Front Step Under, Lh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61416-95J00 |
— | ||
|
61421A
|
61421A
61421-95J00 Panel, Fender, Inner Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61421-95J00 |
US $145.60 |
||
|
61422A
|
61422A
61422-95J00 Panel, Fender, Inner Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61422-95J00 |
US $145.60 |
||
|
61423A
|
61423A
61423-95J00 Panel, Fender, Inner Lower Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61423-95J00 |
US $90.27 |
||
|
61424A
|
61424A
61424-95J00 Panel, Fender, Inner Lower Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61424-95J00 |
US $90.27 |
||
|
61504A
|
61504A
61504-95J00 Reinforce Sub-Assy, Slide Door Lock Striker, Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61504-95J00 |
US $19.80 |
||
|
61505
|
61505
61505-95J00 Reinforce Sub-Assy, Front Door Lock Striker, Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61505-95J00 |
US $15.29 |
||
|
61506
|
61506
61506-95J00 Reinforce Sub-Assy, Front Door Lock Striker, Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61506-95J00 |
US $15.29 |
||
|
61511
|
61511
61511-95J01 Pillar, Quarter Lock, Rh[12.1982 - 08.1987] LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;YH51,52,62..03S,07S,08S,09S |
61511-95J01 |
US $78.62 |
||
|
61512
|
61512
61502-95J03 Pillar, Quarter Lock, Lh[12.1982 - 08.1987] LH6#,7#,YH6#,71..VSG..ST |
61502-95J03 |
US $164.53 |
||
|
61606
|
61606
61705-95J00 Frame Sub-Assy, Back Door Opening Side, Rh[12.1982 - 01.1986] LH5#,6#,YH5#,6#..MRF,SRF |
61705-95J00 |
US $295.57 |
||
|
61606
|
61606
61705-95J02 Frame Sub-Assy, Back Door Opening Side, Rh[01.1986 - 08.1987] LH5#,6#,YH5#,6#..MRF,SRF |
61705-95J02 |
US $299.94 |
||
|
61607
|
61607
61706-95J00 Frame Sub-Assy, Back Door Opening Side, Lh[12.1982 - 01.1986] LH5#,6#,YH5#,6#..MRF,SRF |
61706-95J00 |
US $295.57 |
||
|
61607
|
61607
61706-95J02 Frame Sub-Assy, Back Door Opening Side, Lh[01.1986 - 08.1987] LH5#,6#,YH5#,6#..MRF,SRF |
61706-95J02 |
US $299.94 |
||
|
61611
|
61611
61611-95J05 Panel, Quarter, Rh[12.1982 - 01.1986] LH6#,YH61..10S,15S; LH6#,YH6#..SRF..V4D..VSG..ST |
61611-95J05 |
US $1,163.34 |
||
| replacement | |||||
|
61611
|
61611
61611-95J34 Panel, Quarter, Rh[12.1982 - 01.1986] LH6#,YH61..10S,15S; LH6#,YH6#..SRF..V4D..VSG..ST |
61611-95J34 |
US $1,172.08 |
||
|
61611
|
61611
61611-95J34 Panel, Quarter, Rh[01.1986 - 08.1987] LH61,YH61..10S,15S; LH6#,YH6#..SRF..V4D..VSG..ST |
61611-95J34 |
US $1,172.08 |
||
|
61612
|
61612
61612-95J06 Panel, Quarter, Lh[12.1982 - 01.1986] LH6#,YH61..10S,15S; LH6#,YH6#..SRF..VSG..ST |
61612-95J06 |
US $866.32 |
||
| replacement | |||||
|
61612
|
61612
61612-95J29 Panel, Quarter, Lh[12.1982 - 01.1986] LH6#,YH61..10S,15S; LH6#,YH6#..SRF..VSG..ST |
61612-95J29 |
US $869.23 |
||
|
61612
|
61612
61612-95J29 Panel, Quarter, Lh[01.1986 - 08.1987] LH61,YH61..10S,15S; LH6#,YH6#..SRF..VSG..ST |
61612-95J29 |
US $869.23 |
||
|
61631A
|
61631A
61631-95J00 Panel, Quarter Wheel House, Outer Rh[12.1982 - 08.1987] LH60,61,YH61..10S; LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
61631-95J00 |
US $286.83 |
||
|
61632A
|
61632A
61632-95J00 Panel, Quarter Wheel House, Outer Lh[12.1982 - 08.1987] LH60,61,YH61..10S; LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
61632-95J00 |
US $286.83 |
||
|
61633A
|
61633A
61633-95J00 Panel, Quarter Wheel House, Inner Rh[12.1982 - 08.1986] LH6#,YH61..10S; LH5#,6#,7#,YH5#,6#,71..V..ST |
61633-95J00 |
US $139.78 |
||
| replacement | |||||
|
61633A
|
61633A
61633-95J03
Panel, Quarter Wheel House, Inner Rh
[12.1982 - 08.1986] LH6#,YH61..10S; LH5#,6#,7#,YH5#,6#,71..V..ST |
61633-95J03 |
— | ||
|
61633A
|
61633A
61633-95J01 Panel, Quarter Wheel House, Inner Rh[08.1986 - 08.1987] LH61,YH61..10S; LH5#,6#,71,YH5#,6#,71..V..ST |
61633-95J01 |
US $141.23 |
||
| replacement | |||||
|
61633A
|
61633A
61633-95J03
Panel, Quarter Wheel House, Inner Rh
[08.1986 - 08.1987] LH61,YH61..10S; LH5#,6#,71,YH5#,6#,71..V..ST |
61633-95J03 |
— | ||
|
61634A
|
61634A
61634-95J00 Panel, Quarter Wheel House, Inner Lh[12.1982 - 08.1986] LH60,YH61..10S; LH5#,6#,7#,YH5#,6#,71..V..ST |
61634-95J00 |
US $139.78 |
||
| replacement | |||||
|
61634A
|
61634A
61634-95J04
Panel, Quarter Wheel House, Inner Lh
[12.1982 - 08.1986] LH60,YH61..10S; LH5#,6#,7#,YH5#,6#,71..V..ST |
61634-95J04 |
— | ||
|
61634A
|
61634A
61634-95J01 Panel, Quarter Wheel House, Inner Lh[08.1986 - 08.1987] LH61,YH61..10S; LH5#,6#,71,YH5#,6#,71..V..ST; LH71,YH71..DLX..15S HANDY CAB. |
61634-95J01 |
US $141.23 |
||
| replacement | |||||
|
61634A
|
61634A
61634-95J04
Panel, Quarter Wheel House, Inner Lh
[08.1986 - 08.1987] LH61,YH61..10S; LH5#,6#,71,YH5#,6#,71..V..ST; LH71,YH71..DLX..15S HANDY CAB. |
61634-95J04 |
— | ||
|
61649
|
61649
61667-95J03
Pad, Quarter Panel, Outer
[07.1983 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61667-95J03 |
— | ||
|
61699C
|
61699C
61699-95J00 Retainer, Courtesy Switch[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61699-95J00 |
US $5.24 |
||
|
61707
|
61707
61613-95J11 Panel Sub-Assy, Quarter, Inner Rear Rh[12.1982 - 08.1987] YH62; LH60,61,YH61..SRF..V4D..06S..ST; LH61,YH61..V ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞ ｶﾞ-ﾄﾞ) |
61613-95J11 |
US $487.76 |
||
|
61707E
|
61707E
61031-95J01
Extension, Quarter Inner Panel, Rh
[08.1985 - 08.1987] LH51,61,YH50,6#..V4D..VSG..03S; YH62 W/RR HEATER,COLD SPEC |
61031-95J01 |
— | ||
|
61707E
|
61707E
61031-95J15 Extension, Quarter Inner Panel, Rh[08.1985 - 08.1986] LH51,61,YH50,6#..V4D..VSG..03S COLD SPEC |
61031-95J15 |
US $382.93 |
||
| replacement | |||||
|
61707E
|
61707E
61031-95J01
Extension, Quarter Inner Panel, Rh
[08.1985 - 08.1986] LH51,61,YH50,6#..V4D..VSG..03S COLD SPEC |
61031-95J01 |
— | ||
|
61707E
|
61707E
61735-95J01
Extension, Quarter Inner Panel, Rh
[01.1984 - 08.1985] LH50,YH50,52,62..V4D..VSG..03S |
61735-95J01 |
— | ||
|
61708
|
61708
61614-95J11 Panel Sub-Assy, Quarter, Inner Lh[12.1982 - 08.1985] LH6#,YH6#..SRF..VSG..(03S,06S)..ST |
61614-95J11 |
US $489.22 |
||
|
61708
|
61708
61614-95J50
Panel Sub-Assy, Quarter, Inner Rear Lh
[08.1985 - 08.1987] LH61,YH6#..VSG..03S |
61614-95J50 |
— | ||
|
61725
|
61725
77304-95J00 Box, Fuel Inlet[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
77304-95J00 |
US $58.82 |
||
|
61737C
|
61737C
61737-95J00 Reinforcement, Quarter, Inner[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..ST |
61737-95J00 |
US $36.69 |
||
|
61739B
|
61739B
61739-95J00 Reinforcement, Extension Quarter Inner Panel[12.1982 - 08.1987] LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;YH51,52,62..03S,07S,08S,09S |
61739-95J00 |
US $47.03 |
||
|
61741A
|
61741A
61741-95J00 Reinforcement, Back Door Opening, Upper Rh[12.1982 - 08.1987] LH5#,6#,YH5#,6#..MRF,SRF |
61741-95J00 |
US $41.50 |
||
|
61742A
|
61742A
61742-95J00 Reinforcement, Back Door Opening, Upper Lh[12.1982 - 08.1987] LH5#,6#,YH5#,6#..MRF,SRF |
61742-95J00 |
US $41.50 |
||
|
61745A
|
61745A
61077-95J00 Reinforcement, Back Door Opening, Lower Rh[12.1982 - 08.1987] LH61,YH61..10S,15S;LH61,YH61..SRF..VSG;LH50,51,60..VSG..03S;LH50,51,60..05S,06S,08 S,09S,10S,15S;LH56,66,YH5#,62..03S,05S,06S,08S,09S |
61077-95J00 |
US $208.21 |
||
|
61746A
|
61746A
61078-95J00 Reinforcement, Back Door Opening, Lower Lh[12.1982 - 08.1987] LH61,YH61..10S,15S;LH61,YH61..SRF..VSG;LH50,51,60..VSG..03S;LH50,51,60..05S,06S,08 S,09S,10S,15S;LH56,66,YH5#,62..03S,05S,06S,08S,09S |
61078-95J00 |
US $208.21 |
||
|
61747A
|
61747A
61747-95J00 Extension, Back Door Opening Lower Reinforcement, Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61747-95J00 |
US $38.73 |
||
|
61748A
|
61748A
61748-95J00 Extension, Back Door Opening Lower Reinforcement, Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61748-95J00 |
US $38.73 |
||
|
61784C
|
61784C
61784-95J00 Brace, Quarter Panel, Inner Lh[12.1982 - 08.1985] LH5#,6#,YH5#,6#..MRF,SRF; LH7#,YH71..09S,15S |
61784-95J00 |
US $28.54 |
||
| replacement | |||||
|
61784C
|
61784C
61784-95J02 Brace, Quarter Panel, Inner Lh[12.1982 - 08.1985] LH5#,6#,YH5#,6#..MRF,SRF; LH7#,YH71..09S,15S |
61784-95J02 |
US $28.54 |
||
|
1796195J00
|
1796195J00
17961-95J00 Inlet, Cool Air |
17961-95J00 |
US $30.87 |
||
