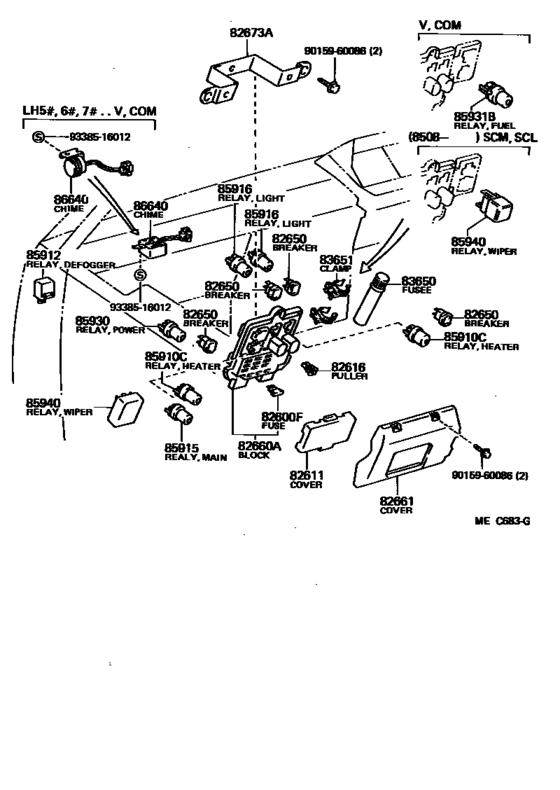

Switch & Relay & Computer ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- YH62V
- grade
- CTD
- body
- V
- Roof
- SRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 １０Ａ |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 １５Ａ |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 ７．５Ａ |
90982-09005 |
from US $0.99 |
||
|
82611
|
82611
82661-95J00
Cover, Fuse Block
[01.1984 - 08.1987] LH51,YH51..SRF..08S; LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
82661-95J00 |
— | ||
|
82616
|
82616
82616-12010 Lever, Fuse[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
82616-12010 |
US $3.40 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 ３０Ａ |
82650-20011 |
US $15.77 |
||
|
82660A
|
82660A
82660-95J00
Block Assy, Relay, Cowl Side
[01.1984 - 08.1987] YH52,62 |
82660-95J00 |
— | ||
|
82661
|
82661
82672-95J00
Cover, Relay Block, No.1
[12.1982 - 08.1986] LH5#,6#,7#,YH5#,6#,71 |
82672-95J00 |
— | ||
| replacements | |||||
|
82661
|
82661
82069-95J00
Cover Set, Junction Block
[12.1982 - 08.1986] LH5#,6#,7#,YH5#,6#,71 |
82069-95J00 |
— | ||
|
82661
|
82661
82069-95J02
Cover Set, Junction Block
[12.1982 - 08.1986] LH5#,6#,7#,YH5#,6#,71 |
82069-95J02 |
— | ||
|
82661
|
82661
82069-95J04 Cover Set, Junction Block[12.1982 - 08.1986] LH5#,6#,7#,YH5#,6#,71 |
82069-95J04 |
US $71.64 |
||
|
82661
|
82661
82672-95J02 Cover, Relay Block, No.1[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
82672-95J02 |
US $47.76 |
||
|
82673A
|
82673A
82673-95J01 Bracket, Junction Block[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
82673-95J01 |
US $8.15 |
||
|
83650
|
83650
90986-01003
Fusee
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
90986-01003 |
— | ||
|
83651
|
83651
90468-25001 Clamp, Fusee[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
90468-25001 |
US $2.62 |
||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[12.1982 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [12.1982 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
909870200483 |
US $53.75 |
||
|
85915
|
85915
90987-02004 Relay Assy, Starter[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 IGNITION |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85915
|
85915
909870200483 [12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 IGNITION |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 TAIL & HEAD |
90987-01003 |
from US $35.65 |
||
|
85940
|
85940
85940-95J00 Relay Assy, Windshield Wiper[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
85940-95J00 |
US $151.42 |
||
|
86640
|
86640
86650-95J01 Chime Assy[12.1982 - 08.1987] YH5#,6#,71..COM,V |
86650-95J01 |
US $23 |
||
| replacement | |||||
|
86640
|
86640
86650-28010
Buzzer Assy
[12.1982 - 08.1987] YH5#,6#,71..COM,V |
86650-28010 |
— | ||
|
9015960086
|
9015960086
90159-60086
New Genuine Part
|
90159-60086 |
— | ||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $0.96 |
||
