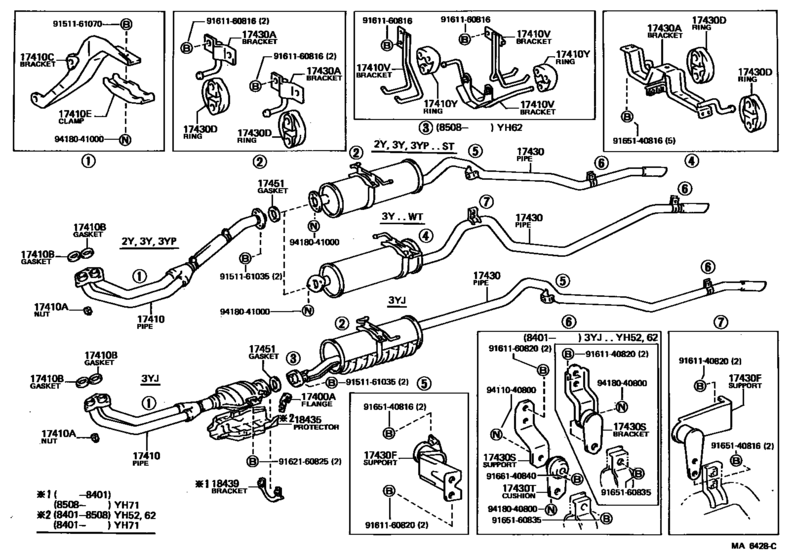

Exhaust Pipe ([12.1982 - ] (8212- )2Y,3Y,3YJ) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400A
|
17400A
18491-18010 Flange, Thermosenser Inlet[12.1982 - 01.1984] 3YJ..YH71 |
18491-18010 |
US $8.59 |
||
|
17410
|
17410
17410-71050 Pipe Assy, Exhaust, Front[12.1982 - 01.1984] 3YJ..YH71 |
17410-71050 |
US $725.09 |
||
| replacement | |||||
|
17410
|
17410
17410-71090 Pipe Assy, Exhaust, Front[12.1982 - 01.1984] 3YJ..YH71 |
17410-71090 |
US $761.49 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[12.1982 - 08.1985] L,2L,2Y,3Y#..LH5#,6#,7#,YH5#,6#,71 |
90179-10010 |
from US $1.35 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1985 - 08.1987] 2L#,2Y,3Y#..LH5#,6#,71,YH5#,6#,71 |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1985 - 08.1987] 2L#,2Y,3Y#..LH5#,6#,71,YH5#,6#,71 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06001
Gasket(For Manifold Extension)
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90917-06001 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06038 Gasket, Exhaust Pipe[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90917-06038 |
from US $2.30 |
||
|
17410C
|
17410C
17571-71020 Bracket, Exhaust Pipe Front (For Front)[12.1982 - 01.1984] 2Y,3Y#..YH5#,61,71 |
17571-71020 |
US $38 |
||
| replacement | |||||
|
17410C
|
17410C
17571-71021 Bracket, Exhaust Pipe Front (For Front)[12.1982 - 01.1984] 2Y,3Y#..YH5#,61,71 |
17571-71021 |
US $38.29 |
||
|
17410C
|
17410C
17571-71021 Bracket, Exhaust Pipe Front (For Front)[01.1984 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
17571-71021 |
US $38.29 |
||
|
17410E
|
17410E
90917-04030 Clamp No.1, Exhaust Pipe Front (For Front)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90917-04030 |
US $4.89 |
||
|
17430
|
17430
17430-71090 Pipe Assy, Exhaust, Tail[12.1982 - 01.1984] 3YJ..YH71 |
17430-71090 |
US $681.41 |
||
|
17430
|
17430
17430-71091 Pipe Assy, Exhaust, Tail[01.1984 - 08.1987] 3YJ..YH71 |
17430-71091 |
US $681.41 |
||
|
17430A
|
17430A
17573-71070 Bracket, Exhaust Tail Pipe(For Front)[12.1982 - 08.1987] L,2L..LH60,61..10S RH; L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST RH |
17573-71070 |
US $28.39 |
||
|
17430A
|
17430A
17573-71080 Bracket, Exhaust Tail Pipe(For Front)[12.1982 - 08.1987] L,2L..LH60,61..10S LH; L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST LH |
17573-71080 |
US $28.39 |
||
|
17430D
|
17430D
17565-15010 Bolt Or Ring, Exhaust Pipe Front (For Center)[12.1982 - 08.1987] L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71; L,2L,3Y..LH5#,7#,YH61..COM,V |
17565-15010 |
US $10.19 |
||
|
17430F
|
17430F
17565-71010 Bracket, Exhaust Tail Pipe(For Center)[12.1982 - 01.1984] L,2Y,3Y,3YJ..LH50,60,70,YH50,61,71..(COM,V)..ST |
17565-71010 |
US $18.05 |
||
| replacement | |||||
|
17430F
|
17430F
17565-71050
Bracket, Exhaust Tail Pipe(For Center)
[12.1982 - 01.1984] L,2Y,3Y,3YJ..LH50,60,70,YH50,61,71..(COM,V)..ST |
17565-71050 |
— | ||
|
17430F
|
17430F
17565-71050
Bracket, Exhaust Tail Pipe(For Center)
[06.1985 - 08.1987] L,2L,2Y,3Y,3YJ..LH5#,61,71,YH5#,61,71..(COM,V)..ST |
17565-71050 |
— | ||
|
17430S
|
17430S
17566-71030 Bracket, Exhaust Tail Pipe (For Rear)[12.1982 - 01.1984] L,2Y,3Y,3YJ..LH50,70,YH50,61,71..(COM,V)..ST |
17566-71030 |
US $8.15 |
||
|
17430S
|
17430S
17566-71050
Bracket, Exhaust Tail Pipe (For Rear)
[01.1984 - 05.1987] L,2L,2Y,3Y,3YJ..LH5#,66,71,YH5#,61,71..(COM,V)..ST |
17566-71050 |
— | ||
|
17430T
|
17430T
90917-08004 Cushion, Exhaust Pipe Front (For Front)[12.1982 - 01.1984] L..LH60..WT; L,2Y,3Y,3YJ..LH50,70,YH50,61,71..COM,V |
90917-08004 |
US $14.34 |
||
|
17430T
|
17430T
90917-08009 Cushion, Exhaust Tail Pipe (For Rear)[01.1984 - 05.1987] L,2L,2Y,3Y,3YJ..LH5#,66,71,YH5#,61,71..COM,V |
90917-08009 |
from US $9.72 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[12.1982 - 08.1987] 3YJ..YH52,62,71; 3YU..YH51,61 RR |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[12.1982 - 08.1987] 3YJ..YH52,62,71; 3YU..YH51,61 RR |
90917-06045 |
from US $1.60 |
||
|
18435
|
18435
18407-27010 Protector, Catalytic Converter[12.1982 - 01.1984] 3YJ..YH71 |
18407-27010 |
US $55.18 |
||
|
18439
|
18439
18495-71010 Retainer, Exhaust Pipe[12.1982 - 01.1984] 3YU,3YJ..YH51,61,71 |
18495-71010 |
US $22.68 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.94 |
||
|
9151161070
|
9151161070
91511-61070
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-61070 |
— | ||
| replacement | |||||
|
9151161070
|
9151161070
91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91512-61070 |
US $4.66 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9166140840
|
9166140840
91661-40840 New Genuine Part |
91661-40840 |
US $2.04 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.31 |
||
