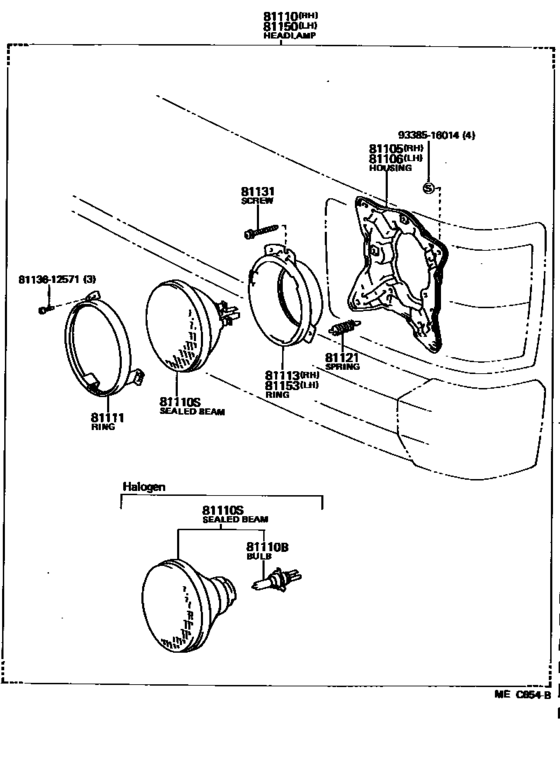

Headlamp ([12.1982 - 08.1985] (8212-8508)COM,V) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-95J00
Housing Sub-Assy, Headlamp, Rh
[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
81105-95J00 |
— | ||
|
81105
|
81105
81105-95J14
Housing Sub-Assy, Headlamp, Rh
[08.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..COM,V |
81105-95J14 |
— | ||
|
81106
|
81106
81106-95J00
Housing Sub-Assy, Headlamp, Lh
[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
81106-95J00 |
— | ||
|
81106
|
81106
81106-95J14
Housing Sub-Assy, Headlamp, Lh
[08.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..COM,V |
81106-95J14 |
— | ||
|
81110
|
81110
81110-80285
Headlamp Assy, Rh
[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) |
81110-80285 |
— | ||
|
81110
|
81110
81110-95J14
Headlamp Assy, Rh
[08.1985 - 08.1987] LH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX) |
81110-95J14 |
— | ||
|
81110S
|
81110S
90981-01022
Sealed Beam Unit, No.1
[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) １２Ｖ ６０／５０Ｗ，＊ＷＢ,12V 60/55W |
90981-01022 |
— | ||
| replacements | |||||
|
81110S
|
81110S
90981-01H21 New Genuine Part[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) １２Ｖ ６０／５０Ｗ，＊ＷＢ,12V 60/55W |
90981-01H21 |
US $174.40 |
||
|
81110S
|
81110S
90981-01H22 SEALED BEAM UNIT (2 pcs set)[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) １２Ｖ ６０／５０Ｗ，＊ＷＢ,12V 60/55W |
90981-01H22 |
US $204.42 |
||
|
81110S
|
81110S
90981-04029
Sealed Beam Unit, No.1
[08.1985 - 08.1987] LH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX) １２Ｖ ６５／５５Ｗ，＊ＷＢ,12V 65/55W |
90981-04029 |
— | ||
| replacements | |||||
|
81110S
|
81110S
90981-04H21 Sealed Beam Unit (2 pcs set) Halogen[08.1985 - 08.1987] LH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX) １２Ｖ ６５／５５Ｗ，＊ＷＢ,12V 65/55W |
90981-04H21 |
US $157.44 |
||
|
81110S
|
81110S
90981-04H22 SEALED BEAM UNIT[08.1985 - 08.1987] LH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX) １２Ｖ ６５／５５Ｗ，＊ＷＢ,12V 65/55W |
90981-04H22 |
US $133.58 |
||
|
81111
|
81111
81111-16020 Ring, Sealed Beam Retaining[08.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..COM,V |
81111-16020 |
from US $21.61 |
||
|
81111
|
81111
81111-22150 Ring, Sealed Beam Retaining[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
81111-22150 |
from US $12.54 |
||
|
81113
|
81113
81113-95J00
Ring, Sealed Beam Mounting, No.1 Rh
[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
81113-95J00 |
— | ||
|
81113
|
81113
81153-16220 Ring, Sealed Beam Mounting, No.1[08.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..COM,V |
81153-16220 |
US $19.15 |
||
|
81121
|
81121
81121-16020 Spring, Headlamp Tension[08.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..COM,V |
81121-16020 |
from US $4.48 |
||
|
81121
|
81121
81121-62010 Spring, Headlamp Tension[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
81121-62010 |
from US $1.93 |
||
|
81131
|
81131
81131-10031 Screw, Headlamp Adjusting[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..COM,V |
81131-10031 |
from US $1.66 |
||
|
81150
|
81150
81150-80282
Headlamp Assy, Lh
[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD) |
81150-80282 |
— | ||
|
81150
|
81150
81150-95J14
Headlamp Assy, Lh
[08.1985 - 08.1987] LH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX) |
81150-95J14 |
— | ||
|
81153
|
81153
81113-16220 Ring, Sealed Beam Mounting, No.1[08.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..COM,V |
81113-16220 |
US $19.15 |
||
|
81153
|
81153
81153-95J00
Ring, Sealed Beam Mounting, No.1 Lh
[12.1982 - 08.1985] LH5#,6#,7#,YH50,52,6#,71..COM,V |
81153-95J00 |
— | ||
|
8113612571
|
8113612571
81136-12571 Screw |
81136-12571 |
from US $2.14 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
