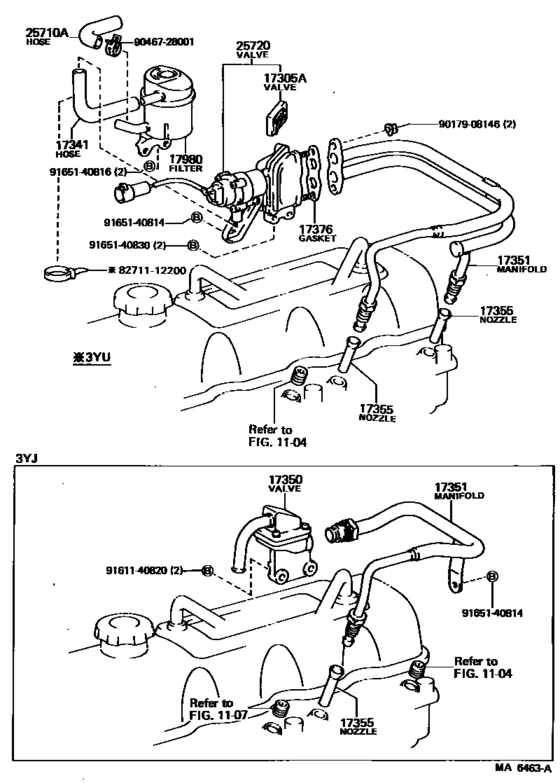

Manifold Air Injection System ([12.1982 - ] (8212- )3Y#) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-71010 Hose, No.1(For Air Injection System)[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
17341-71010 |
US $22.13 |
||
|
17350
|
17350
17350-71021 Valve Assy, Reed[12.1982 - 08.1987] 3YJ..YH52,62,71 |
17350-71021 |
US $173.26 |
||
|
17351
|
17351
17351-71010 Manifold, Air Injection[12.1982 - 12.1983] 3YJ..YH71 |
17351-71010 |
US $123.76 |
||
| replacement | |||||
|
17351
|
17351
17351-71011 Manifold, Air Injection[12.1982 - 12.1983] 3YJ..YH71 |
17351-71011 |
US $125.22 |
||
|
17351
|
17351
17351-71011 Manifold, Air Injection[12.1983 - 08.1987] 3YJ..YH52,62,71 |
17351-71011 |
US $125.22 |
||
|
17355
|
17355
17355-71010 Nozzle, Air Injection[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
17355-71010 |
US $12.38 |
||
|
17980
|
17980
17980-71011 Filter Assy, Air Suction[12.1982 - 08.1986] 3YU,3YJ..YH51,52,6#,71 |
17980-71011 |
US $292.66 |
||
| replacements | |||||
|
17980
|
17980
17342-72011 Hose, No.2(For Air Injection System)[12.1982 - 08.1986] 3YU,3YJ..YH51,52,6#,71 |
17342-72011 |
US $14.41 |
||
|
17980
|
17980
17980-71012 Filter Assy, Air Suction[12.1982 - 08.1986] 3YU,3YJ..YH51,52,6#,71 |
17980-71012 |
US $263.54 |
||
|
25710A
|
25710A
17342-72010 Hose(For Air By-Pass Valve To Air Switching Valve)[12.1982 - 08.1986] 3YU,3YJ..YH51,52,6#,71 |
17342-72010 |
US $22.86 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046728001
|
9046728001
90467-28001
Clamp(For Check Valve)
|
90467-28001 |
— | ||
| replacement | |||||
|
9046728001
|
9046728001
90467-28007 Clip Or Clamp(For Ventilation Hose) |
90467-28007 |
from US $3.06 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
