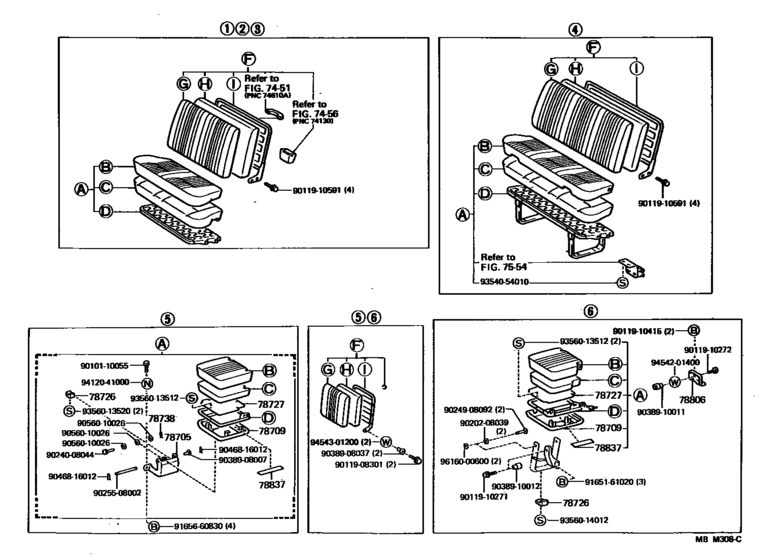

Seat & Seat Track ([08.1987 - ] (8708- )DX..15S) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH71B
- grade
- DX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78705
|
78705
78705-95J01-06 Bracket Sub-Assy, Sub Seat Cushion[08.1987 - 08.1989] LH61,71,YH71..15S BROWN,TRIM4# |
78705-95J01-06 |
US $206.75 |
||
|
78709
|
78709
78709-95J00-06 Panel Sub-Assy, Sub Seat Cushion[08.1987 - 08.1989] LH61,71,YH61..10S BROWN,TRIM4#; LH61,71,YH71..15S BROWN,TRIM4#,左側 |
78709-95J00-06 |
US $75.71 |
||
|
78709
|
78709
78709-95J02-06 Panel Sub-Assy, Sub Seat Cushion[08.1987 - 08.1989] LH61,71,YH71..15S BROWN,TRIM4#,右側 |
78709-95J02-06 |
US $75.71 |
||
|
78726
|
78726
78726-90B00 Cushion, Sub Seat Cushion Frame[08.1987 - 08.1989] LH61,71,YH71..DX..15S BRACKET |
78726-90B00 |
US $5.23 |
||
|
78726
|
78726
78726-90C00 Cushion, Sub Seat Cushion Frame[08.1987 - 08.1989] LH71..10S; LH61,71,YH71..15S LEG |
78726-90C00 |
US $8.44 |
||
|
78727
|
78727
78727-90B00 Board, Sub Seat Cushion[08.1987 - 08.1989] LH61,71,YH71..15S 右側 |
78727-90B00 |
US $24.32 |
||
|
78727
|
78727
78727-90C00 Board, Sub Seat Cushion[08.1987 - 08.1989] LH61,71,YH61..10S; LH61,71,YH71..15S 左側 |
78727-90C00 |
US $24.32 |
||
|
78738
|
78738
90468-16012 Pin, Sub Seat Cushion Pin[08.1987 - 08.1989] LH61,71,YH71..15S |
90468-16012 |
from US $0.90 |
||
|
78806
|
78806
78806-90C00 Bracket Sub-Assy, Sub Seat Cushion, Rear Lh[08.1987 - 08.1989] LH71,YH71..15S |
78806-90C00 |
US $116.48 |
||
|
78837
|
78837
78837-90C01 Pad, Sub Seat Cushion Safety[08.1987 - 08.1989] LH61,71,YH61,71..10S,15S |
78837-90C01 |
US $9.90 |
||
|
9010110055
|
9010110055
90101-10055 Bolt(For Clutch Pedal Stopper) |
90101-10055 |
US $1.38 |
||
|
9011908301
|
9011908301
90119-08301 BOLT |
90119-08301 |
US $2.33 |
||
|
9011910271
|
9011910271
90119-10271 New Genuine Part |
90119-10271 |
US $2.62 |
||
|
9011910272
|
9011910272
90119-10272 New Genuine Part |
90119-10272 |
US $2.48 |
||
|
9011910415
|
9011910415
90119-10415 BOLT |
90119-10415 |
US $2.62 |
||
| replacement | |||||
|
9011910415
|
9011910415
91651-G1020 BOLT |
91651-G1020 |
from US $1.05 |
||
|
9011910591
|
9011910591
90119-10591 New Genuine Part |
90119-10591 |
US $2.62 |
||
|
9020208039
|
9020208039
90202-08039 WASHER |
90202-08039 |
US $3.76 |
||
|
9024008044
|
9024008044
90240-08044 PIN |
90240-08044 |
US $2.20 |
||
|
9024908092
|
9024908092
90249-08092 New Genuine Part |
90249-08092 |
US $3.20 |
||
|
9025508002
|
9025508002
90255-08002 New Genuine Part |
90255-08002 |
US $5.82 |
||
|
9038908007
|
9038908007
90389-08007 New Genuine Part |
90389-08007 |
US $3.20 |
||
|
9038908037
|
9038908037
90389-08037
BUSH
|
90389-08037 |
— | ||
| replacement | |||||
|
9038908037
|
9038908037
90387-08052 BUSH |
90387-08052 |
US $2.87 |
||
|
9038910011
|
9038910011
90389-10011 New Genuine Part |
90389-10011 |
US $4.37 |
||
|
9038910012
|
9038910012
90389-10012 New Genuine Part |
90389-10012 |
US $3.49 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.90 |
||
|
9056010026
|
9056010026
90560-10026 SPACER |
90560-10026 |
US $2.51 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
9165660830
|
9165660830
91656-60830 Bolt (For Transfer Power Take-Off Cover) |
91656-60830 |
US $2.33 |
||
| replacement | |||||
|
9165660830
|
9165660830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.61 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $2.15 |
||
|
9356013512
|
9356013512
93560-13512 New Genuine Part |
93560-13512 |
US $1.08 |
||
|
9356013520
|
9356013520
93560-13520 New Genuine Part |
93560-13520 |
US $1.61 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.25 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9454201400
|
9454201400
94542-01400 Spacer, Center Seat Hinge |
94542-01400 |
US $2.87 |
||
|
9454301200
|
9454301200
94543-01200 WASHER |
94543-01200 |
US $2.33 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
