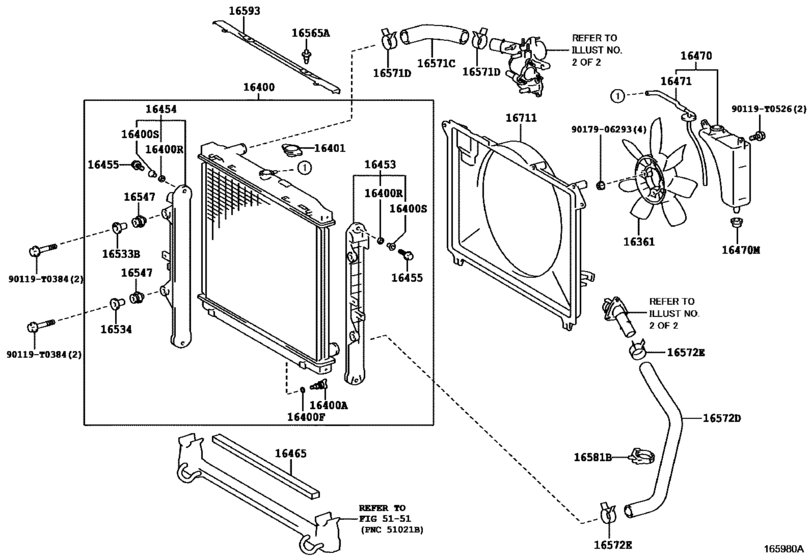

Radiator & Water Outlet ([05.2015 - ] (1505- )1GRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGN120
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- CAB
- THDCB
- Model
- HILUX
- From
- 05.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Hilux
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-31060 Fan[05.2015 -] 1GRFE..GGN12#,135 |
16361-31060 |
from US $103.32 |
||
|
16400
|
16400
16400-0P330
Radiator Assy
[05.2015 - 05.2016] 1GRFE..GGN12#..ARL |
16400-0P330 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-0P331
Radiator Assy
[05.2015 - 05.2016] 1GRFE..GGN12#..ARL |
16400-0P331 |
— | ||
|
16400
|
16400
16400-0P331
Radiator Assy
[06.2016 -] 1GRFE..GGN12#..ARL |
16400-0P331 |
— | ||
|
16400A
|
16400A
16417-0C180
Cock Sub-Assy, Radiator Drain
[05.2015 -] 1GRFE..GGN12#..ARL |
16417-0C180 |
— | ||
| replacement | |||||
|
16400A
|
16400A
16417-21280 Cock Sub-Assy, Radiator Drain[05.2015 -] 1GRFE..GGN12#..ARL |
16417-21280 |
from US $3.88 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,128,13#..AGTDC,AGTSC,THDCB,THSCB,THXTR; 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..GCC,GEN,IDN,LA; 1GDFTV..GUN126..H |
16492-21050 |
from US $2.16 |
||
|
16400R
|
16400R
16444-0L060 Bushing(For Radiator)[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,136..THDCB,THSCB,THXTR; 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..(THDCB,THSCB,THXTR)..(GCC,G EN,IDN,LA); 1GDFTV..G |
16444-0L060 |
US $2.62 |
||
|
16400S
|
16400S
16445-0C180 Collar(For Radiator)[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,128,13#..AGTDC,AGTSC,THDCB,THSCB,THXTR; 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..GCC,GEN,IDN,LA; 1GDFTV..GUN126..H |
16445-0C180 |
US $2.62 |
||
|
16401
|
16401
16401-0C030 Cap Sub-Assy, Radiator[05.2015 - 05.2016] 1TRFE,2TRFE..TGN11#,12#,136; 1GRFE..GGN12#,135 |
16401-0C030 |
US $11.08 |
||
|
16401
|
16401
16401-0C050
Cap Sub-Assy, Radiator
[06.2016 -] 2TRFE..TGN121,126,136..(THDCB,THSCB)..6FC; 5LE..LAN125 (L); 1GRFE..GGN12#,135; 2TRFE..TGN126,128,138..6FC..(BZAGT,SA);1TRFE,2TRFE..TGN11#,120,121,126,136..5F (L) |
16401-0C050 |
— | ||
|
16453
|
16453
16453-0L361 Plate, Radiator Side[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,136..THDCB,THSCB,THXTR; 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..(THDCB,THSCB,THXTR)..(GCC,G EN,IDN,LA); 1GDFTV..G |
16453-0L361 |
US $43.58 |
||
|
16454
|
16454
16454-0L361
Plate, Radiator Side
[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,136..THDCB,THSCB,THXTR; 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..(THDCB,THSCB,THXTR)..(GCC,G EN,IDN,LA); 1GDFTV..G |
16454-0L361 |
— | ||
|
16455
|
16455
91651-B0820 Bolt, Radiator Side Support Plate[05.2015 - 06.2016] 1GRFE..GGN12#..ARL; 1TRFE,2TRFE..TGN11#,12#,136..THDCB,THSCB,THXTR |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
16455
|
16455
90080-11347 New Genuine Part[05.2015 - 06.2016] 1GRFE..GGN12#..ARL; 1TRFE,2TRFE..TGN11#,12#,136..THDCB,THSCB,THXTR |
90080-11347 |
US $3.11 |
||
|
16465
|
16465
88619-0K010 Packing, Radiator[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,136..THDCB,THSCB,THXTR; 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..(THDCB,THSCB,THXTR)..(GCC,G EN,IDN,LA); 1GDFTV..G |
88619-0K010 |
US $11.83 |
||
|
16470
|
16470
16470-0C110 Tank Assy, Radiator Reserve[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,136..THDCB,THSCB,THXTR; 1GRFE..GGN12#..ARL |
16470-0C110 |
US $70.75 |
||
|
16470M
|
16470M
90480-T0003 Grommet[05.2015 -] 1GRFE..GGN12#,135; 1TRFE,2TRFE..TGN11#,12#,13# |
90480-T0003 |
from US $0.96 |
||
|
16471
|
16471
16405-0C090 Cap Sub-Assy, Reserve Tank[05.2015 -] 1TRFE,2TRFE..TGN11#,120,121,126,136..THDCB,THSCB,THXTR; 1GRFE..GGN12#..ARL |
16405-0C090 |
US $12.34 |
||
|
16533B
|
16533B
16533-0L010
Support, Radiator, No.1
[05.2015 -] 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);1KDFTV,2KDFTV..KU N125,126,13#..GCC,GEN,IDN,LA,PKN,SA;2KDFTV..KUN122..(PKNSC,SADCB,SASCB,THDCB,THXTR )..(L,M,S,X); 1TRFE,2TRFE..TGN11#,12#,13#; 1GDFTV..GUN126..H..VN;1G#,2GDFTV.. |
16533-0L010 |
— | ||
|
16534
|
16534
16534-0L010
Support, Radiator, No.2
[05.2015 -] 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);1KDFTV,2KDFTV..KU N125,126,13#..GCC,GEN,IDN,LA,PKN,SA;2KDFTV..KUN122..(PKNSC,SADCB,SASCB,THDCB,THXTR )..(L,M,S,X); 1TRFE,2TRFE..TGN11#,12#,13#; 1GDFTV..GUN126..H..VN;1G#,2GDFTV.. |
16534-0L010 |
— | ||
|
16547
|
16547
16547-0L010
Bush, Radiator Support, No.1
[05.2015 -] 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);1KDFTV,2KDFTV..KU N125,126,13#..GCC,GEN,IDN,LA,PKN,SA;2KDFTV..KUN122..(PKNSC,SADCB,SASCB,THDCB,THXTR )..(L,M,S,X); 1TRFE,2TRFE..TGN11#,12#,13#; 1GDFTV..GUN126..H..VN;1G#,2GDFTV.. |
16547-0L010 |
— | ||
|
16565A
|
16565A
90467-T0027-C0
Clip
[05.2015 -] 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( PKNSC,THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..GCC,GEN,IDN,LA,PKN BLACK; 2TRFE..TGN121,136;1TRFE,2TRFE..TGN11#,120,126,128,138..AGTDC,AGTSC,SADCB, |
90467-T0027-C0 |
— | ||
|
16571C
|
16571C
16571-0P290 Hose, Radiator, No.1[05.2015 -] 1GRFE..GGN12#,135 |
16571-0P290 |
from US $12.29 |
||
|
16571D
|
16571D
90466-T0028 Clamp Or Clip, Hose(For Radiator Inlet)[05.2015 - 01.2017] 1GRFE..GGN12#,135; 1TRFE,2TRFE..TGN11#,12#,13# |
90466-T0028 |
US $3.78 |
||
|
16571D
|
16571D
90466-T0067
Clip, Radiator Hose, No.1
[02.2017 -] 5LE..LAN125; 1GRFE..GGN12#,135; 1TRFE,2TRFE..TGN11#,12#,13# |
90466-T0067 |
— | ||
|
16572D
|
16572D
16572-0P290 Hose, Radiator, No.2[05.2015 -] 1GRFE..GGN12#,135 |
16572-0P290 |
from US $22.52 |
||
|
16572E
|
16572E
90466-T0028 Clamp Or Clip, Hose(For Radiator Inlet)[05.2015 - 01.2017] 1GRFE..GGN12#,135; 1TRFE,2TRFE..TGN11#,12#,13# |
90466-T0028 |
US $3.78 |
||
|
16572E
|
16572E
90466-T0067
Clip, Radiator Hose, No.1
[02.2017 -] 1GRFE..GGN12#,135; 1TRFE,2TRFE..TGN11#,12#,13# |
90466-T0067 |
— | ||
|
16581B
|
16581B
16581-0C010
Clamp, Hose(For Radiator Hose)
[05.2015 -] 1GRFE..GGN12#,135; 1TRFE,2TRFE..TGN11#,12#,13# |
16581-0C010 |
— | ||
|
16593
|
16593
16593-0L040 Guide, Radiator Air, No.1[05.2015 -] 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN112,122..THSCB..(L,M,X);2KDFTV..KUN122..( PKNSC,THDCB,THXTR)..(L,M,S,X);1KDFTV,2KDFTV..KUN125,126,13#..(PKNDC,PKNSC,THDCB,TH SCB,THXTR)..(GCC,GEN,IDN,LA,PKN); 1TRFE,2TRFE..TGN11#,120,121,126,136..THDCB, |
16593-0L040 |
from US $13.59 |
||
|
16711
|
16711
16711-0P260
Shroud, Fan
[05.2015 -] 1GRFE..GGN12#..ARL |
16711-0P260 |
— | ||
| replacement | |||||
|
16711
|
16711
16711-0P261 167110P261[05.2015 -] 1GRFE..GGN12#..ARL |
16711-0P261 |
US $93.62 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
