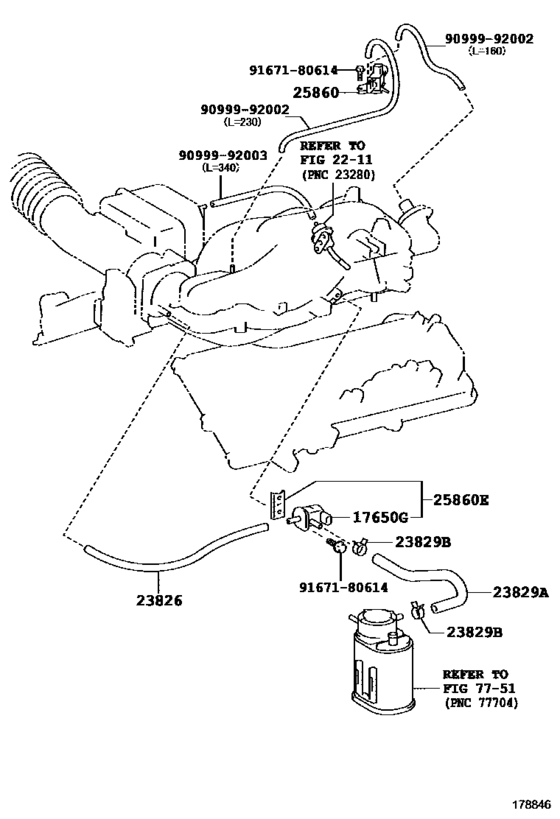

Vacuum Piping ([05.2015 - ] (1505- )1GRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGN120
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- CAB
- THDCB
- Model
- HILUX
- From
- 05.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Hilux
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650G
|
17650G
90910-12276 Valve, Duty Vacuum Switching[05.2015 -] 1GRFE..GGN12#,135 |
90910-12276 |
from US $22.71 |
||
|
23826
|
23826
23826-31010 Hose, Fuel Vapor Feed, No.1[05.2015 -] 1GRFE..GGN12#,135 |
23826-31010 |
from US $18.76 |
||
|
23829A
|
23829A
23829-0P190
Hose, Fuel Vapor Feed
[05.2015 -] 1GRFE..GGN12#,135 |
23829-0P190 |
— | ||
|
23829B
|
23829B
90466-T0040 Clip(For Fuel Hose No.2)[05.2015 -] 1GRFE..GGN12#,135; 1TRFE,2TRFE..TGN11#,12#,13#; 2TRFE..TGN121,126..THDCB..GCC EGYPT SPEC; 2TRFE..TGN126..THDCB..GCC;2TRFE..TGN121..THDCB..5F..GCC EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT; 1TRFE..TGN120..THDCB BRUNEI SPEC; 1TRFE..TGN120..THD |
90466-T0040 |
US $1.79 |
||
|
25860
|
25860
25860-31010 Valve Assy, Vacuum Switching, No.1[05.2015 -] 1GRFE..GGN12#,135 |
25860-31010 |
US $49.27 |
||
|
25860E
|
25860E
25860-31140 Valve, Vacuum Switching, No.2[05.2015 -] 1GRFE..GGN12#,135 |
25860-31140 |
US $46.88 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
