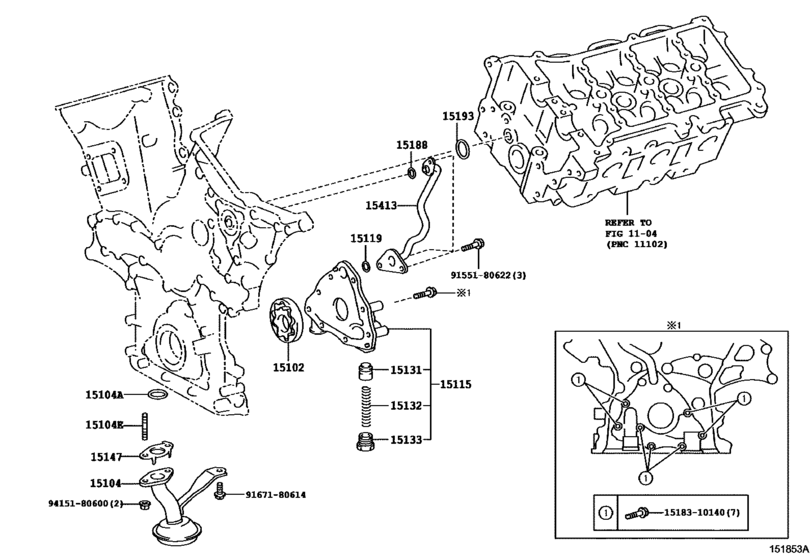

Engine Oil Pump ([07.2011 - ] (1107- )1GRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- GGN15
- grade
- DLX
- ENGINE
- 1GRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 07.2011
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15102
|
15102
15103-31050 Rotor Set, Oil Pump[07.2011 -] 1GRFE..GGN15,25,35 |
15103-31050 |
from US $35.02 |
||
|
15104
|
15104
15104-31110 Strainer Sub-Assy, OilOIL [07.2011 -] 1GRFE..GGN15,25,35 |
15104-31110 |
US $34.52 |
||
|
15104A
|
15104A
96722-24030 Ring, O(For Oil Strainer)[07.2011 -] 1GRFE..GGN15,25,35 |
96722-24030 |
from US $2.13 |
||
|
15104E
|
15104E
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)[07.2011 -] 1GRFE..GGN15,25,35 |
90126-06029 |
from US $0.66 |
||
|
15115
|
15115
15115-31050 Cover, Oil Pump[07.2011 -] 1GRFE..GGN15,25,35 |
15115-31050 |
from US $18.51 |
||
|
15119
|
15119
15119-31050 Gasket, Oil Pump Cover[07.2011 -] 1GRFE..GGN15,25,35 |
15119-31050 |
from US $4.13 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[07.2011 -] 1GRFE..GGN15,25,35; 1TRFE,2TRFE..TGN1#,26,36; 1KDFTV..KUN26..4FC..CO;2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN ,PKN,TH;2KDFTV..KUN35..(4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,P HL);2KDFTV..KUN15..LHD..(DCB,XT |
15131-46040 |
from US $2.94 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[07.2011 -] 1GRFE..GGN15,25,35 |
15132-46020 |
from US $1.42 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[07.2011 -] 1GRFE..GGN15,25,35 |
15133-28020 |
from US $2.24 |
||
|
15147
|
15147
15147-46010 Gasket, Oil Strainer[07.2011 -] 1GRFE..GGN15,25,35 |
15147-46010 |
from US $2.18 |
||
|
15188
|
15188
15188-31050 Gasket, Oil Pump[07.2011 -] 1GRFE..GGN15,25,35 |
15188-31050 |
from US $2.07 |
||
|
15193
|
15193
15193-31010 Gasket, Oil Pump[07.2011 -] 1GRFE..GGN15,25,35 |
15193-31010 |
from US $2.26 |
||
|
15413
|
15413
15413-31020 Pipe, Oil Pump Outlet[07.2011 -] 1GRFE..GGN15,25,35 |
15413-31020 |
US $15.20 |
||
|
1518310140
|
1518310140
15183-10140 Bolt, Union(For Oil Pump) |
15183-10140 |
US $2.62 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
